SCHUNK CMS 050 - 5.3 Mounting inductive proximity switch IN 30 K-S-M8

Assembly
20 01.00 | CMS | Assembly and operating manual | en | 1553577
5.3 Mounting inductive proximity switch IN 30K-S-M8
NOTE
Observe the assembly and operating manual of the sensor for
mounting and connecting.
The product is prepared for the use of the inductive sensor
IN 30K-S-M8.
l
For technical data for the suitable sensors, see Assembly and
Operating Manual and catalog data sheet.
– The Assembly and Operating Manual and catalog data
sheet are included in the scope of delivery for the sensors
and are available at schunk.com.
l
Information on handling sensors is available at schunk.com or
from SCHUNK contact persons.

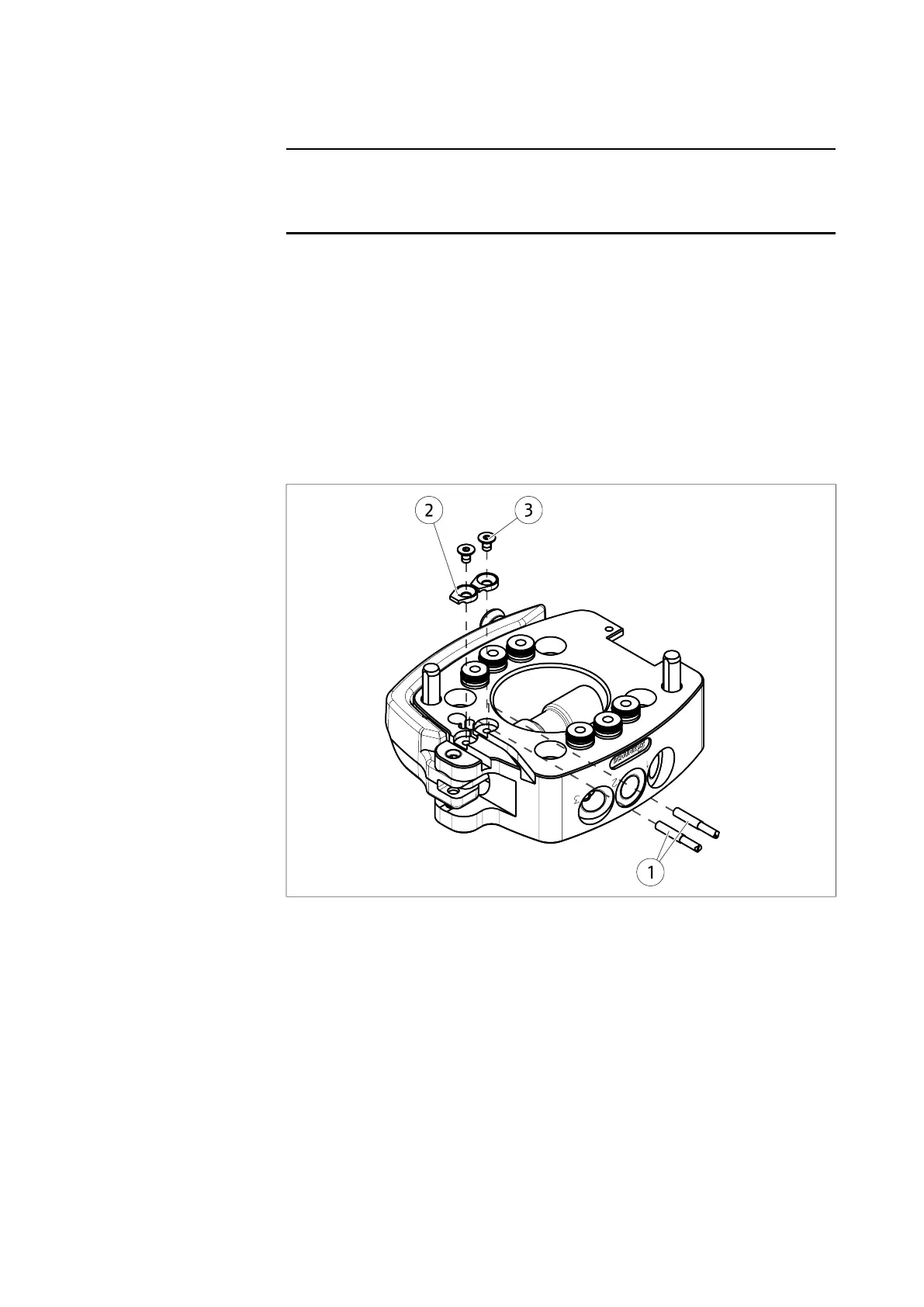

1. Slide sensors(1) up to the stop in the groove.
2. Insert the clamping bracket(2) into the groove.
3. Tighten screws(3).
ð Max. tightening torque: 0.2Nm
