Assembly and settings
Connections for
additional structure

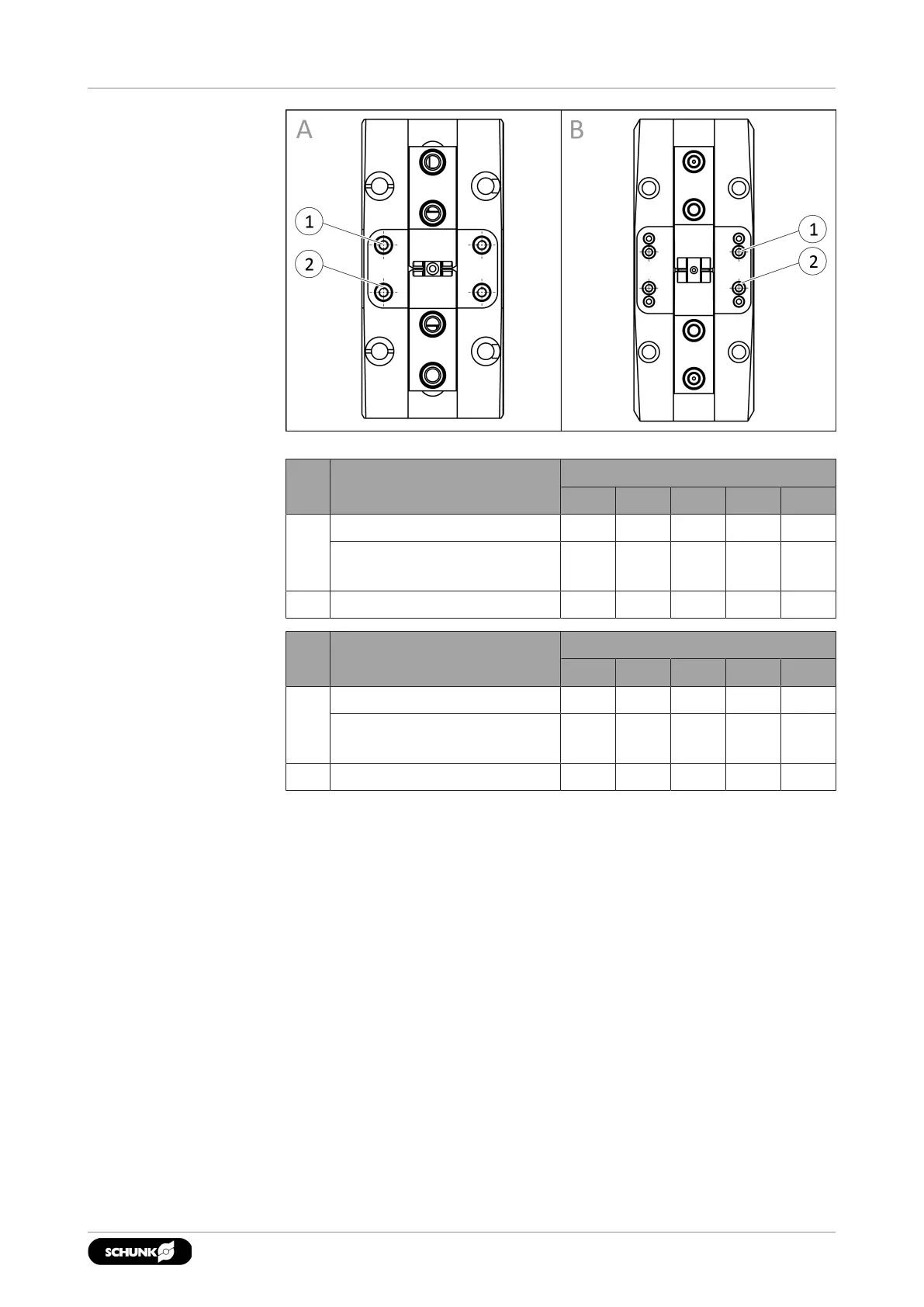

Connections at the housing, Sizes: A - to 100, B - from 125
Item Mounting JGP-P
40 50 64 80 100
1 Thread in the housing M2 M2.5 M2.5 M2.5 M3
Max. depth of engagement
from locating surface [mm]
5 7.1 7.1 7.1 8.4
2 Centering sleeve Ø3 Ø4 Ø4 Ø4 Ø5
Item Mounting JGP-P
125 160 200 240 300
1 Thread in the housing M4 M5 M6 M6 M8
Max. depth of engagement
from locating surface [mm]
10.9 13 12 12 12
2 Centering sleeve Ø6 Ø8 Ø10 Ø10 Ø12
