Assembly and settings
18 03.00 | OSE | Assembly and Operating Manual | en | 1373804
4 Assembly and settings
4.1 Mechanical connection
Evenness of the
mounting surface
The values apply to the whole mounting surface to which the
product is mounted.
Requirements for evenness of the mounting surface (Dimensions in mm)
Edge length Permissible unevenness
< 100 < 0.02
> 100 < 0.05
Mounting of the
adapter plate
Size 14
The adapter plate is mounted on the internals threads of the
pinion with two cylinder screws and two dowel pins.
Size 22 - 63
The adapter plate is mounted on the internals threads of the
pinion with two dowelscrews and two cylinder screws.

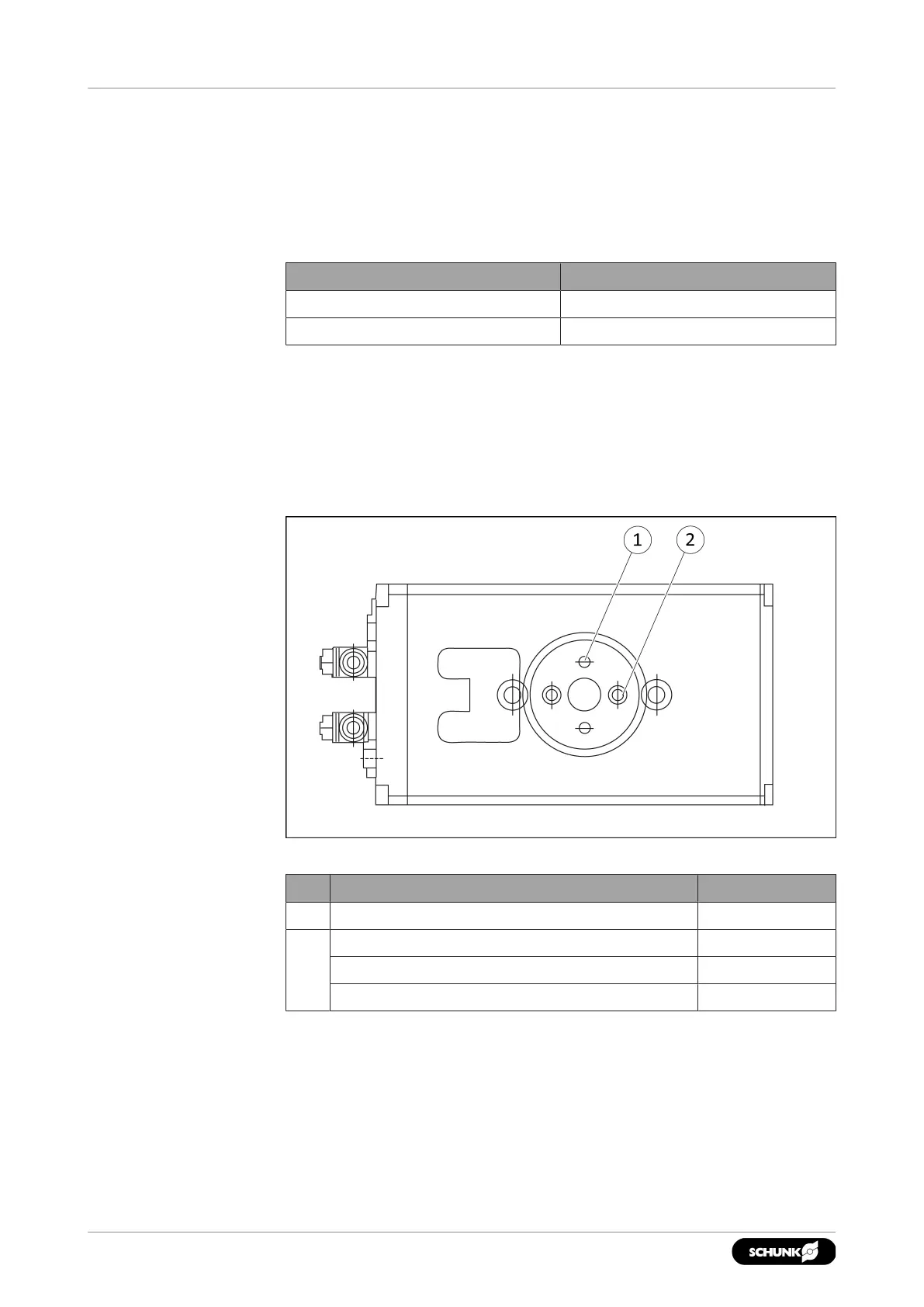

Example view of mounting the adapter plate
Item Mounting OSE 14
1 dowel pin Ø4
2 cylinder screws M4
Max. depth of engagement [mm] 7
Min. depth of engagement [mm] 4
