Assembly and settings
Item Mounting
OSE
22 34 40 45 57 63
1 cylinder screw M5 M5 M6 M8 M12 M10
Max. depth of engagement
[mm]
14 14 14 20 36 25
Max. depth of engagement
[mm] Klemmscheibe C
20 20 20 - - -
Minimum screw-in depth
[mm]
20 23 23 36 36 35.9
2 Fitting screw M5 M5 M6 M8 M8 M10
Max. depth of engagement
[mm]
10 10 12 16 10 20
Max. depth of engagement
[mm] Klemmscheibe C
16 16 16 - - -
Minimum screw-in depth
[mm]
10 10 12 16 24 20
Variant C - OSE 22-40:
If the clamping disk C is mounted, longer screws and dowel screws
have to be used.
Mounting of the
product

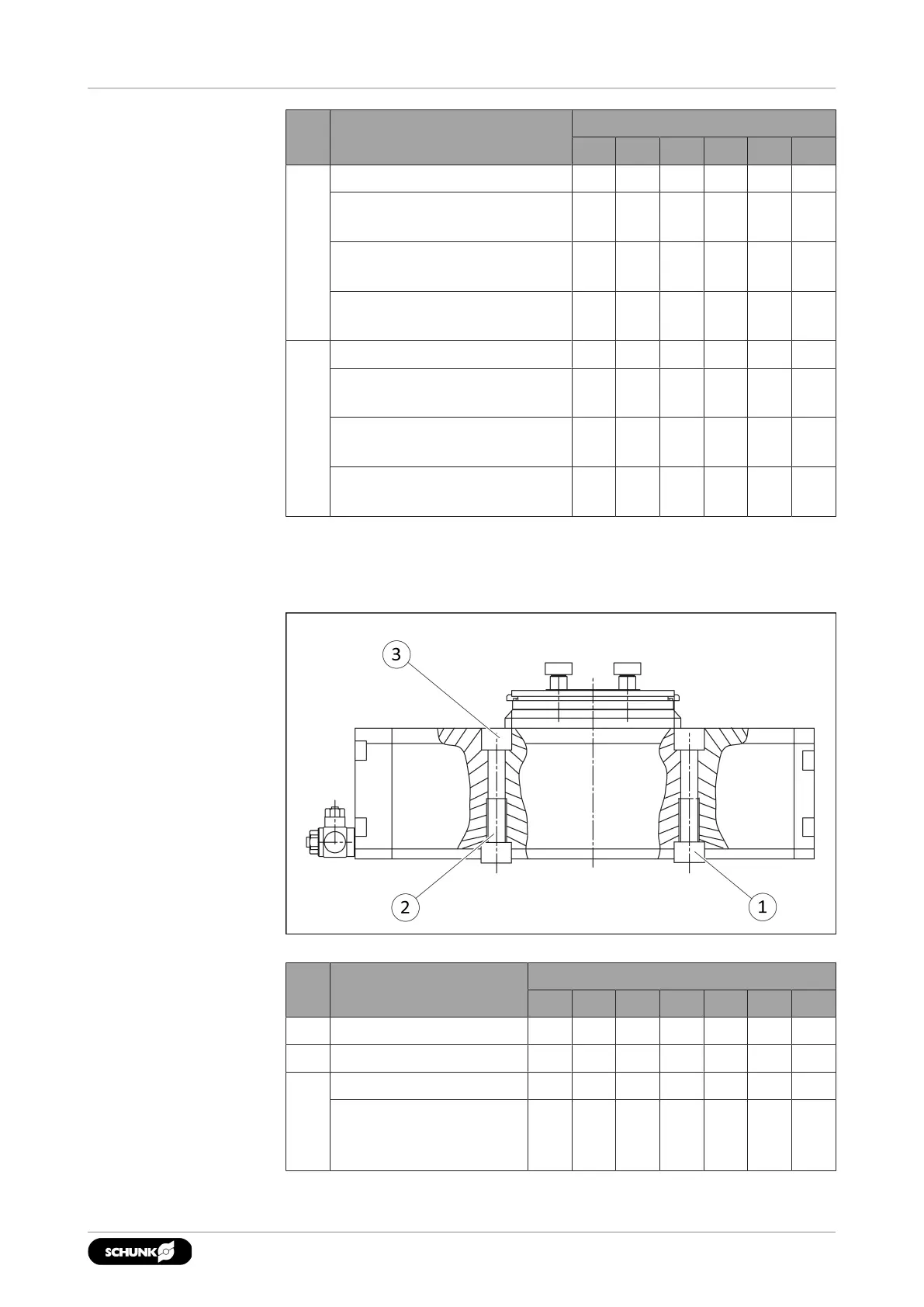

Example view of mounting the product
Item Mounting
OSE
14 22 34 40 45 57 63
1 Centering sleeve Ø8 Ø12 Ø12 Ø17 Ø18 Ø18 Ø22
2 internal thread M5 M8 M8 M10 M12 M12 M16
3 mounting screws M4 M6 M6 M8 M10 M10 M12
Max. depth of
engagement from
locating surface [mm]
25 40 40 65 70 90 100
1903.00 | OSE | Assembly and Operating Manual | en | 1373804
