SCHUNK OSE - Assembly of Seals and Piston; Ose 34 - 40

Maintenance
36 03.00 | OSE | Assembly and Operating Manual | en | 1373804

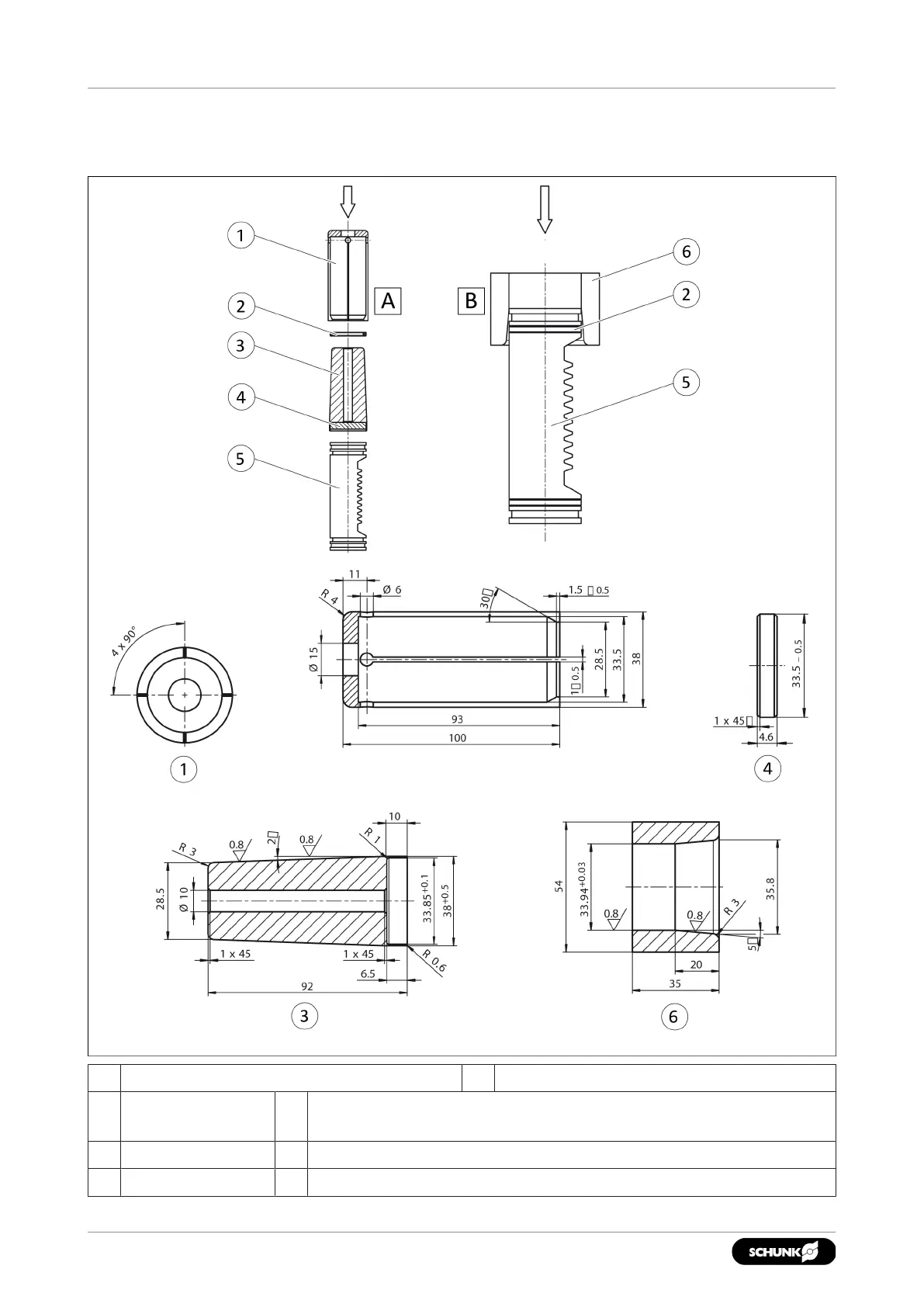

5.3 Assembly of seals and piston
5.3.1 OSE 34 - 40
A Mounting the seal B Calibration of the sealing
1 Expansion sleeve 4 Disc to assemble the piston guiding band at the piston in
intermediate position.
2 Sealing 5 Piston
3 Assembly taper 6 Calibration sleeve
