Schwing SP 305 - Page 52

Maintenance
52
8/4/11
Operation Manual - SP 305
4. Remove the valve protection cap and the valve seal
cap from the accumulator that you will charge first
(Figure 38).

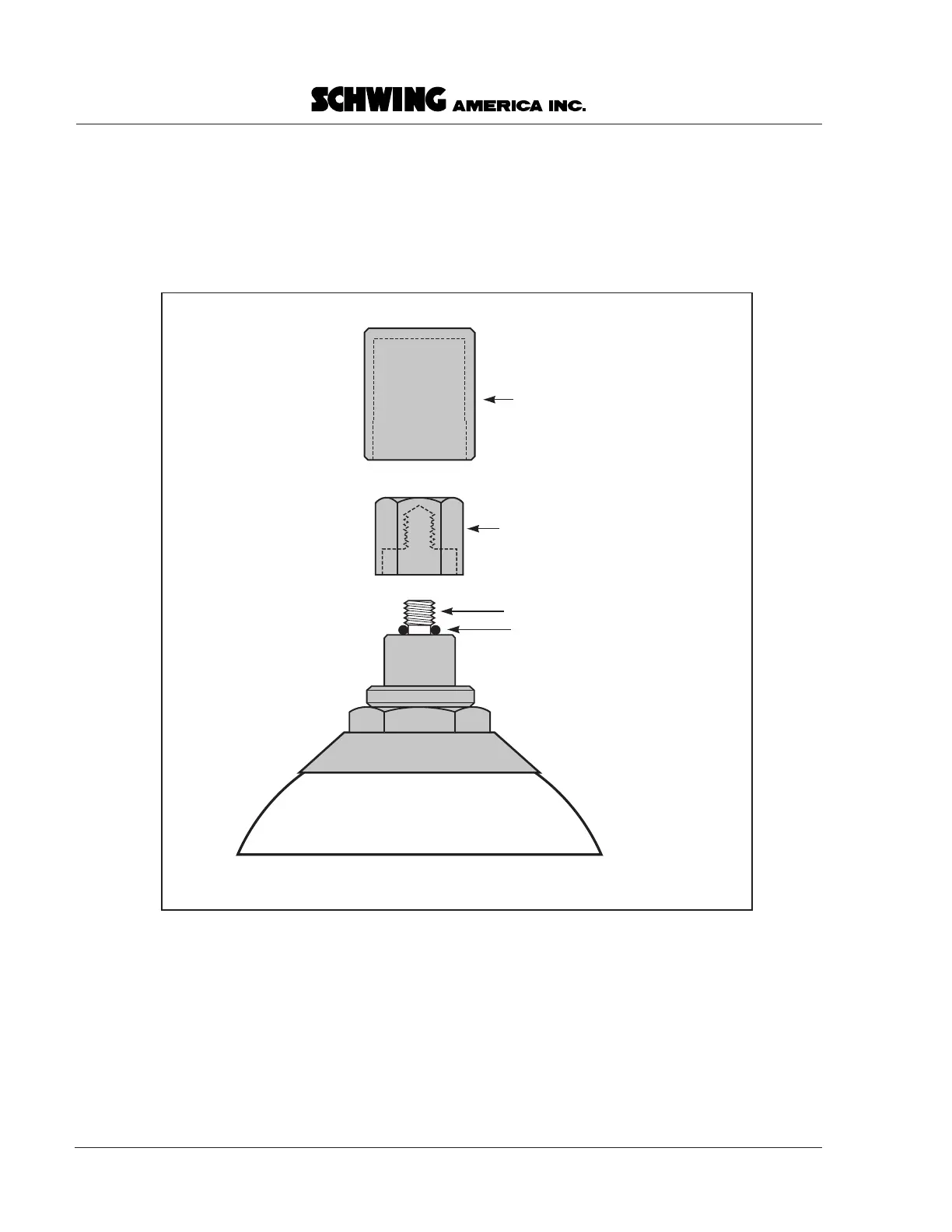

HYDAC bladder
accumulator
Valve seal cap
Valve protection cap
Valve stem
O-ring
accum closeup
Figure 38
Detail of accumulator
gas valve area
