Operation Manual -
71

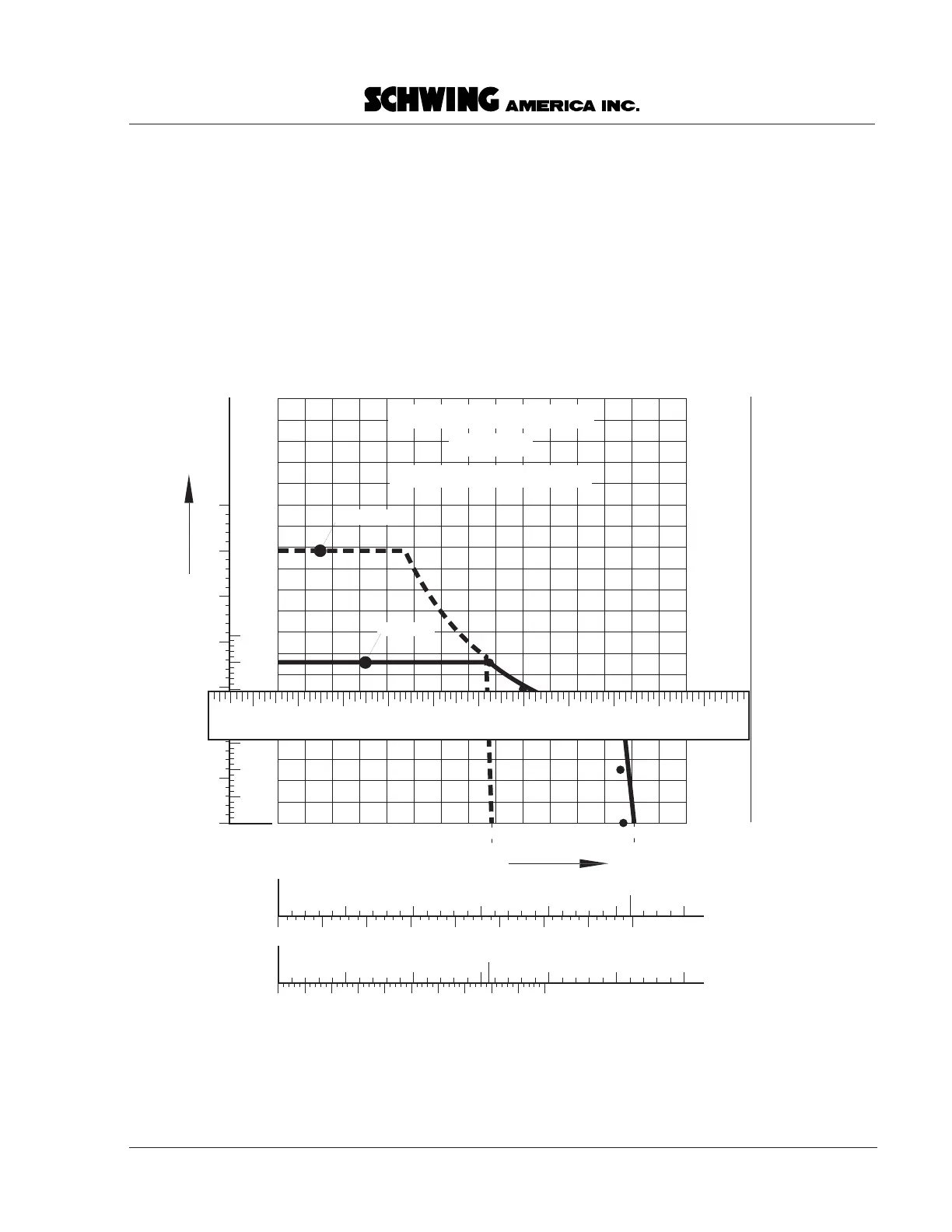

Now plot the readings on the output chart. Take a clean
output chart and proceed as follows:
• Lay a straight edge horizontally across the
page at the pressure point you are plotting.
Draw a light line across the chart. In the exam-
ple below, we use the rod side scales and curve
(you could use the piston side scale and curve
instead). The ruler is shown ready to draw a
line at 250 bar hydraulic pressure.
• Turn the ruler vertically, and draw a light line
up the page from the liters/minute reading you
took at that pressure (remember to multiply the
reading by 2). In our example, we measured
276 liters at 250 bar.
• Put a dot at the point where the two lines inter-
sect.
• Do the same thing with each pressure reading.
You should end up with six dots.
13
