SDMO R44C3 - Page 188

18
2010.10 / i
LeRoY-SoMeR
343
349
347
70
79
90
36
51
59
1
124
41
48
49
47
100
107
91
28
37
4
15
30
33
290
291
292
293
294
295
296
297
217
410
60
68
63
67
198
207
120
LSA 44.2
320
16
15
68
62

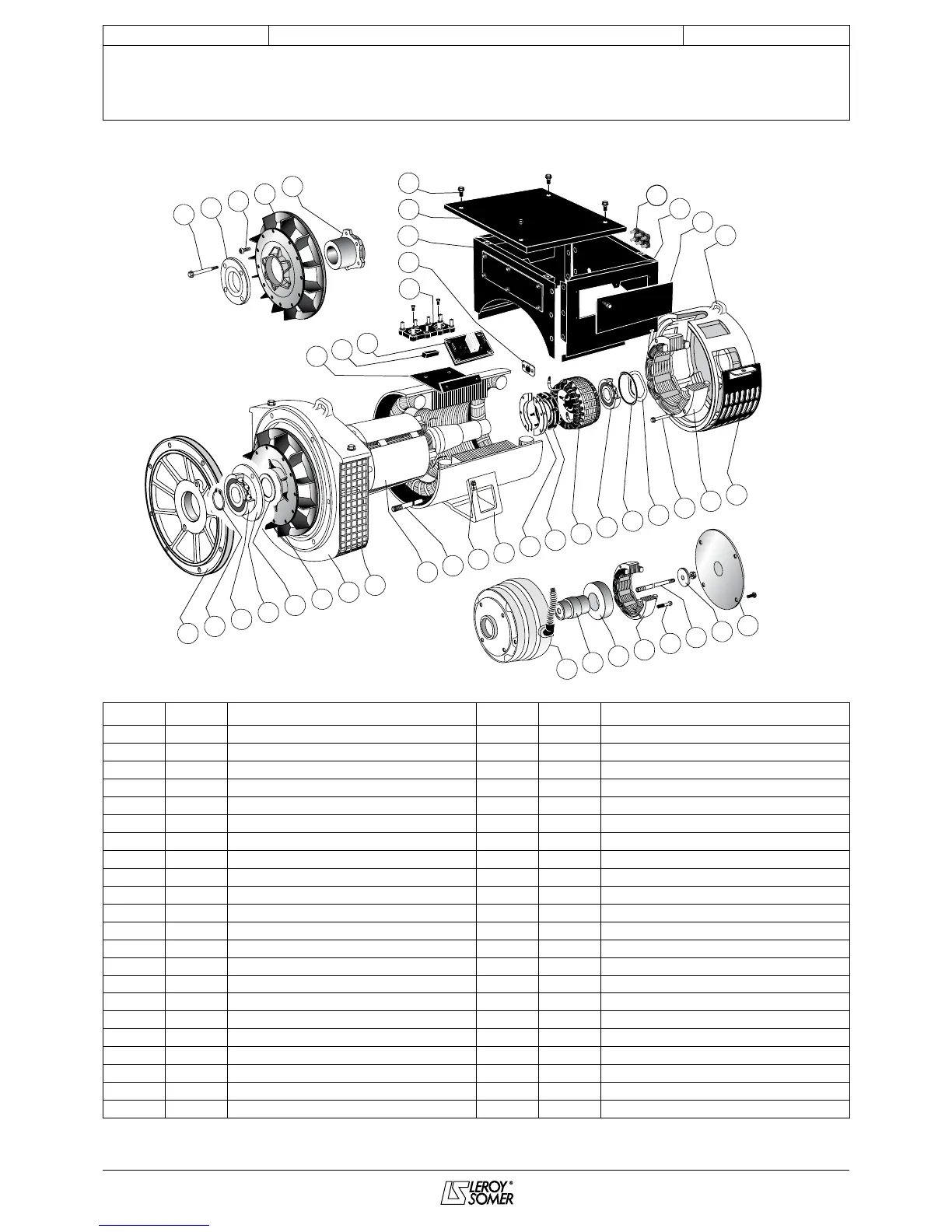

5.4.2 - Two-bearing LSA 43.2/44.2
N° Nbr Description N° Nbr Description
1 1 Stator assembly 90 1 Exciter eld
4 1 Rotor assembly 91 4 Exciter eld xing screw
15 1 Fan 100 1 Exciter armature
16 6 Fixing screws (44.2 only) 107 1 Diode crescent support
28 1 Earth terminal 120 1 Terminal block support (AREP)
30 1 DE shield 124 1 Terminal block
33 1 Air outlet grille 198 1 Voltage regulator (AVR)
36 1 Shield on exciter end 207 1 AVR damper seal
37 4 Tie rod 217 1 Terminal block
41 1 Cover front panel 290 1 PMG housing
47 1 Cover rear panel 291 1 Adaptation shaft
48 1 Cover top panel 292 1 Magnetic rotor
49 34 Fixing screws 293 1 Stator
51 1 Air intake grille 294 2 Fixing screws
59 3 Inspection door 295 1 Tie rod
60 1 DE bearing 296 1 Cable gland washer + nut
62 2/4 Bearing retainer xing screw 297 1 End plate
63 1 Cable gland washer (43.2 only) 320 1 Hub (44.2 only)
67 1 Circlips 343 1 Diode bridge assembly
68 1 Inner bearing retainer 347 1 Surge suppressor
70 1 NDE bearing 349 1 «O» ring
79 1 Preloading wavy washer 410 1 End shield
