2) BASIC WIRINGS OF A STAND ALONE DOOR LOCK WITH INHIBIT AUTHORIZATION CODE
• Use output 3 as authorization control. The owner may key in the user code 3 to stop the operation of the electric lock in the night
time or after office hour to prevent unauthorized access.
• Set output 3 in Start / Stop mode (Programming Location 53 Output Mode =0) for ON-OFF control.

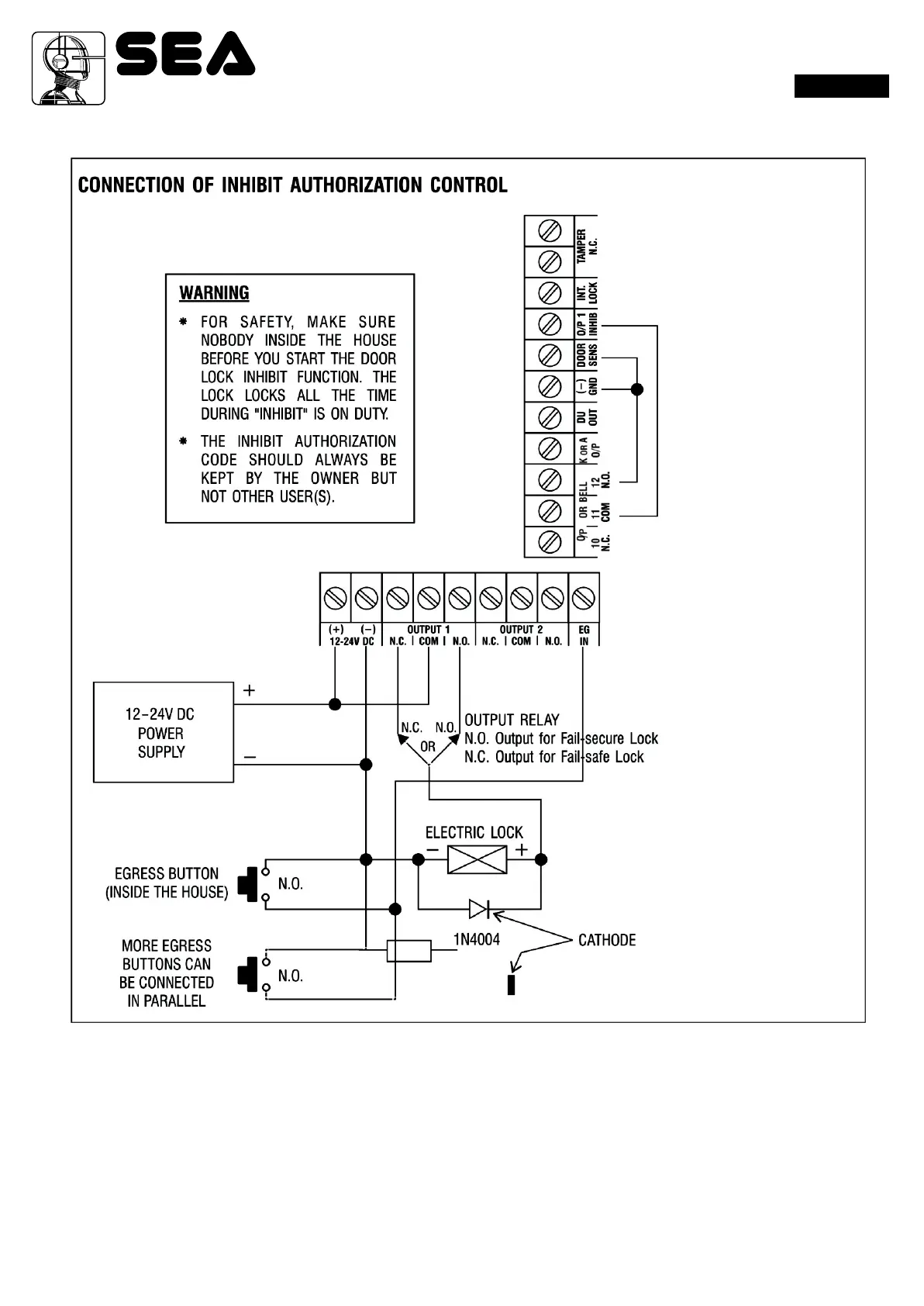

• Simply connect the "output 1 inhibit" (O/P 1 INHIB) terminal with output 3 as like the wiring diagram shown. User code 1 is invalid
while the "O/P 1 INHIB" terminal is shunted to ground with user code 3.
