(D) KEY ACTIVE -- SET THE "K OR A" JUMPER TO "K”

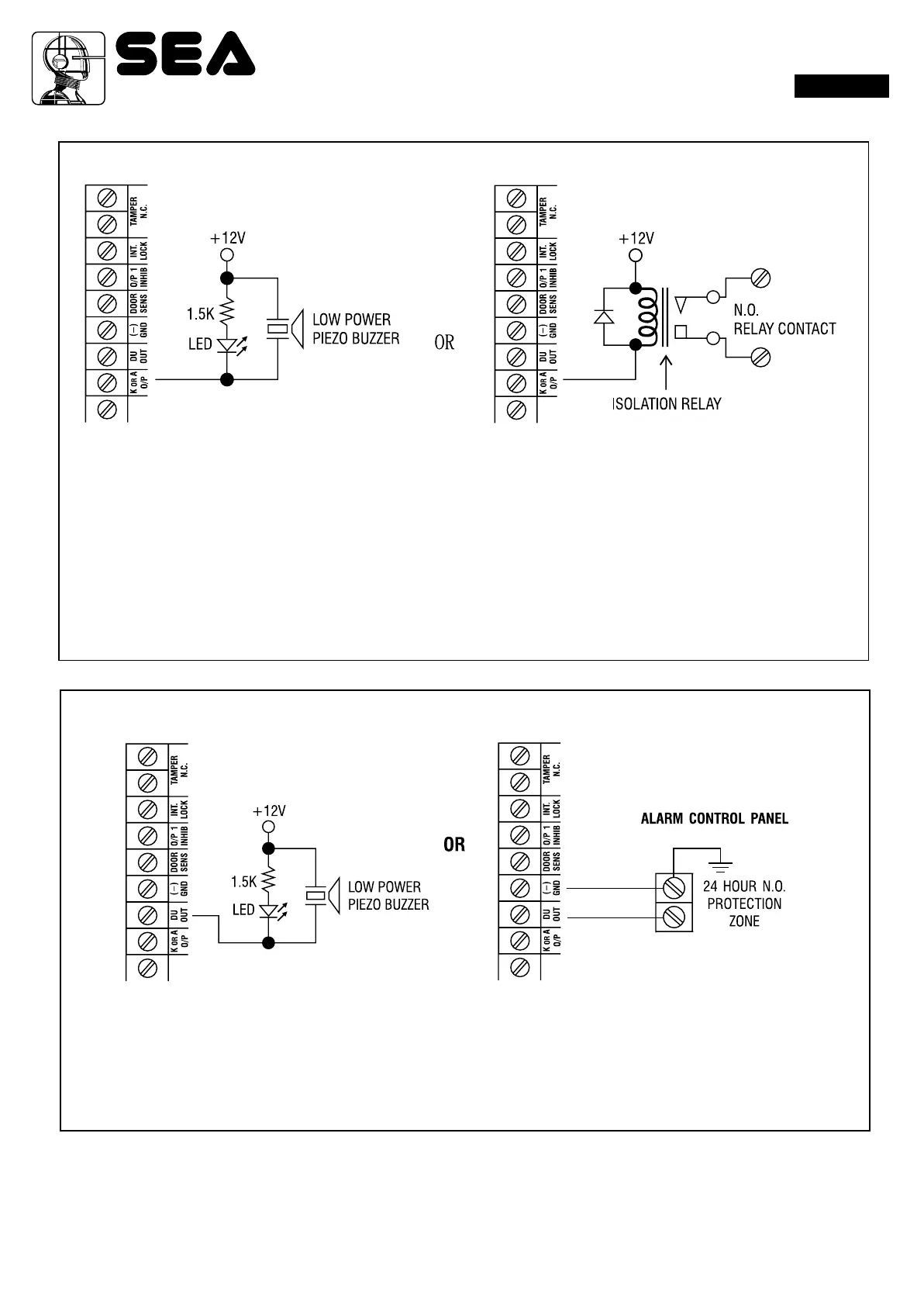

The Key Active Output switches to (-) ground for 10
seconds whenever a key is touched. You may use it to
turn ON an LED lamp and /or a small buzzer to notify a
guard; or to energize a relay to switch ON lights or
trigger an CCTV Camera to start recording.
• Make sure that the relay for switching ON lights has
high enough isolation between high voltage and low
voltage to prevent damage of the keypad.
• Only one connection option is recommended. Make
sure the sink current does not exceed the maximum
rating of 100mA.
• External power supply and isolation relay are strictly
necessary in driving high power device, such as Lights.
(E) DURESS OUTPUT
The Duress Output switches to (-) ground when duress code is entered. You may use it to turn ON an LED lamp and/
or a small buzzer to notify a guard; or connect it to a 24 hour Normally Open protection zone of an alarm system.
• Only one connection option is recommended. Make sure that the sink current does not exceed the maximum rating
of 100mA.
