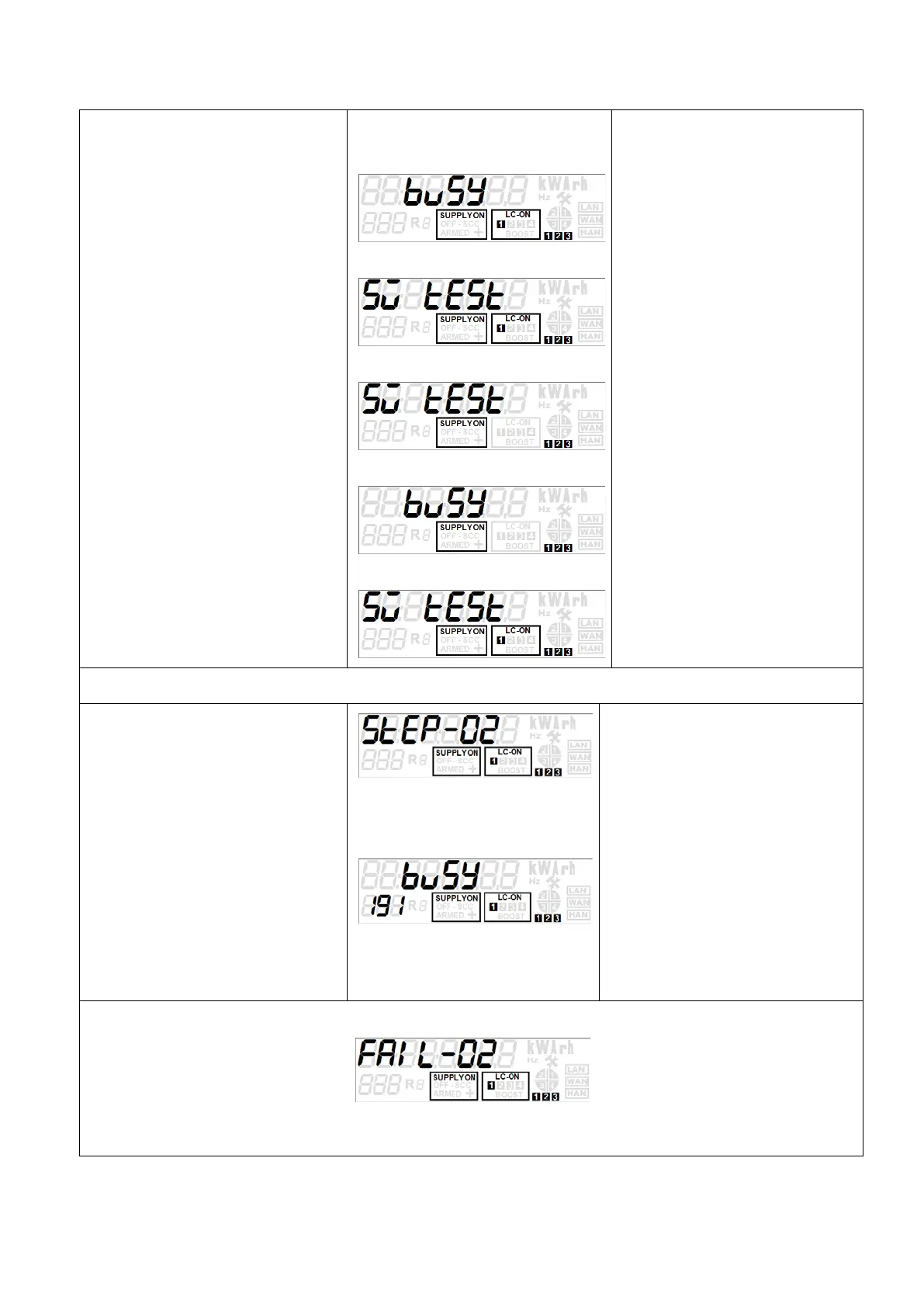

‘Busy’ is displayed showing the wait
period for Aux switch ready status
(max. 20 seconds)
The display shows ‘LC-ON’
(2 seconds)
The display shows ‘LC-OFF’
(2 seconds)
‘Busy’ is displayed showing the wait
period for Auxiliary switch ready
status (max. 20 seconds)
The display shows ‘LC-ON’
(2 seconds)
Auxilliary switch test **
Followed by
Followed by
Followed by
Followed by
Step 3: SIM registration
This display is shown on successful
completion of the switch test
described above or if the user has
pressed the right push button to skip
the switch test.
It may take upto 4 minutes for the
SIM registration process to
complete. During this period, the
display shows ‘Busy’ for the
remaining timeout duration in
seconds.
The meter internally checks the
signal strength during this period.
Followed by
Note: If the meter receives the valid
signal strength for SIM registration,
it proceeds to the next display
without waiting for the remaining
timeout duration.
Note: If the meter is unable to communicate with communication module, the following display appears:
On pressing any button, the commissioning process is terminated and the display returns to the default display
sequence.
BGX701-160-R01
Sprint 211 Installation Manual Page 35 of 48
