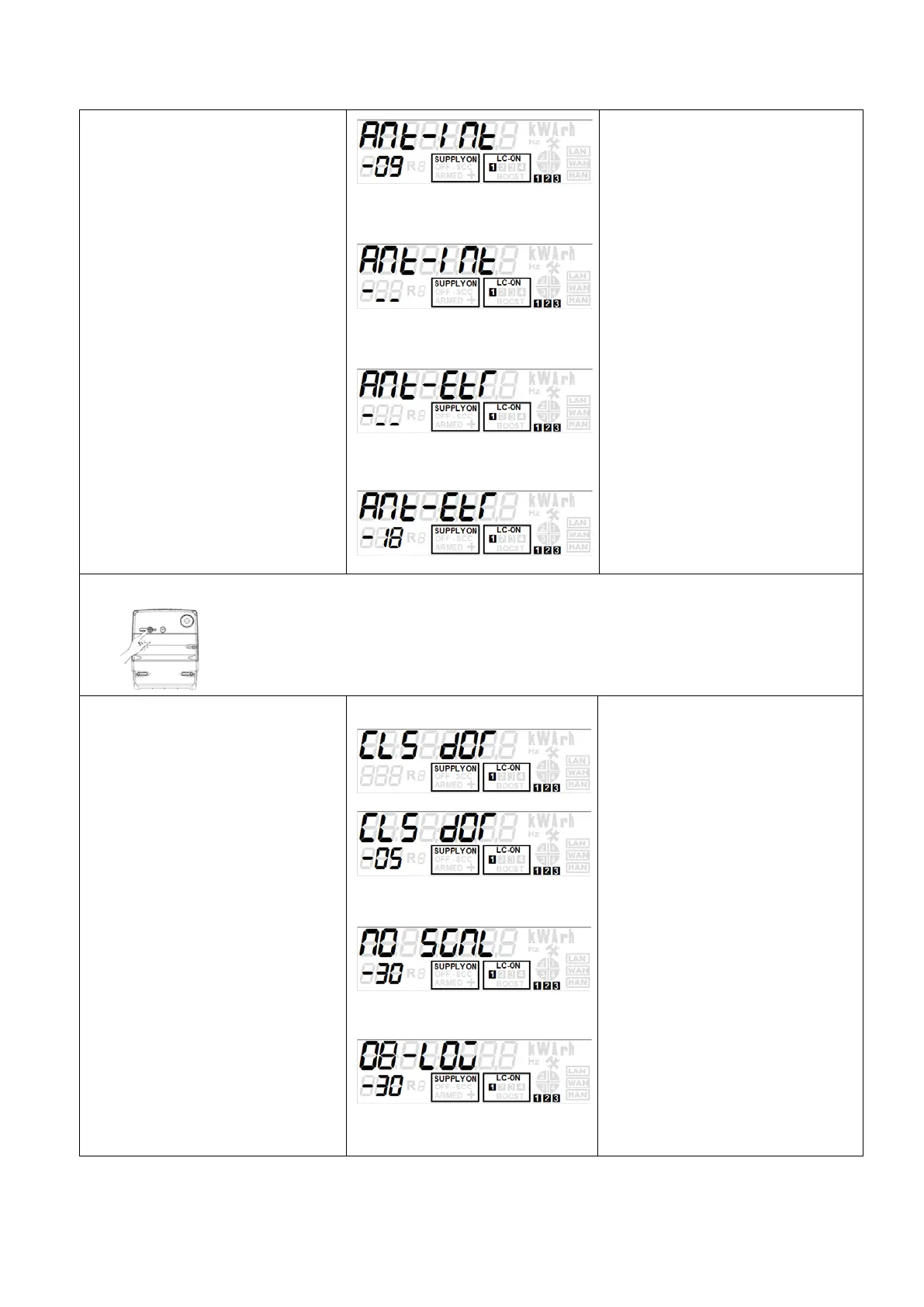

Any of the following displays is
shown based on the detected
signal strength and antenna type.
By default, antenna type is Internal.
The following are the categories of
signal strength:
(i) 00 to 11 – Low signal strength
(ii) 12 and above – Good signal
strength;
(iii) “_ _” means there is no WAN
signal available for the
communication module to
communicate with WSE
Step 4 : Signal strength test
This display is shown when the left
push button is pressed in the
previous step.
Press the left push button once
again. A countdown timer of 5
seconds is displayed to enable the
installer shut the enclosure for
performing the closed door test.
At the end of the 5 seconds
countdown timer, the meter
analyses the signal strength for
another 30 seconds. The installer
must wait until this period times out.
Followed by
OR
Followed by
Door test is done to check the
signal strength for meters which are
mounted in an enclosure.
Note: Installer must close the door
within 5 seconds of pressing the left
push button
Note: During this time, meter will
not respond to any button press.
Page 36 of 48 Sprint 211 Installation Manual BGX701-160-R01
