Sega MIB User Manual

ASSEMBLY AND INSTALLATION
19
6
7
Secure all harnessing connections within the Control Cab (there are 13 harnesses inside the Control Cab, all
of which are labelled and colour coded) and reapply Control Cabi Door when complete
Wire Harnesses
8

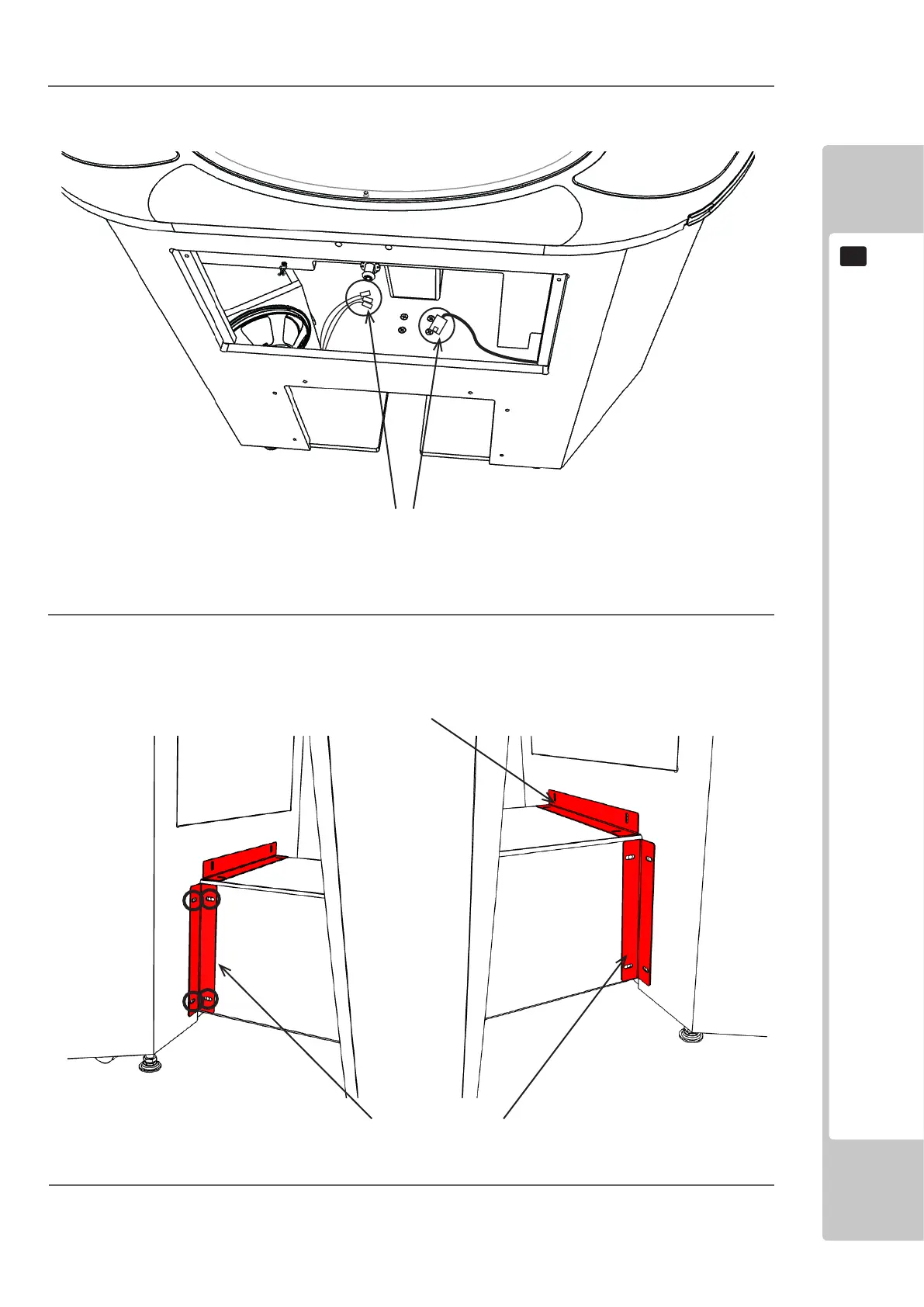

Fit the (2) Bracket Conjoining Base Side (MB-0012UK) and (1) Conjoining Base Top Bracket Front
(MB-0011UK) to the lower section of the Control Cab to secure it by applying the (4) M6x25 xings on
each bracket
ConjoiningBaseTopBracketFront
BracketsConjoiningBaseSide
9
Lower the feet on the Control Cab to the oor and ensure both Monitor and Control Cabinet are level

Sega MIB Specifications
