LAMPS AND LIGHTING
13
The Coin Door Lamp utilises a 12v 1.2w Wedge Bulb. It is important that you
replace this bulb or any other bulb of that of the same voltage and rating.
Failing to observe this caution may result in PCB failure or possible re hazard
• When working with the product, be sure to turn the power off. Working with the
power on may cause an electric shock or short circuit
• You may get burned by a hot uorescent lamp or other lamps. Pay full attention
to the lamps when performing the work
• Be sure to use lamps of the designated rating. Using lamps of undesignated
rating can cause a re or malfunctioning
• There is the danger of short circuits or smoke generation due to deterioration
of insulation in lighting xtures resulting from age deterioration. Check for
anomalies such as the following: Does it smell like something is burning? Is there
socket discoloration? Are any lamps being replaced frequently? Do lamps not
go on properly?

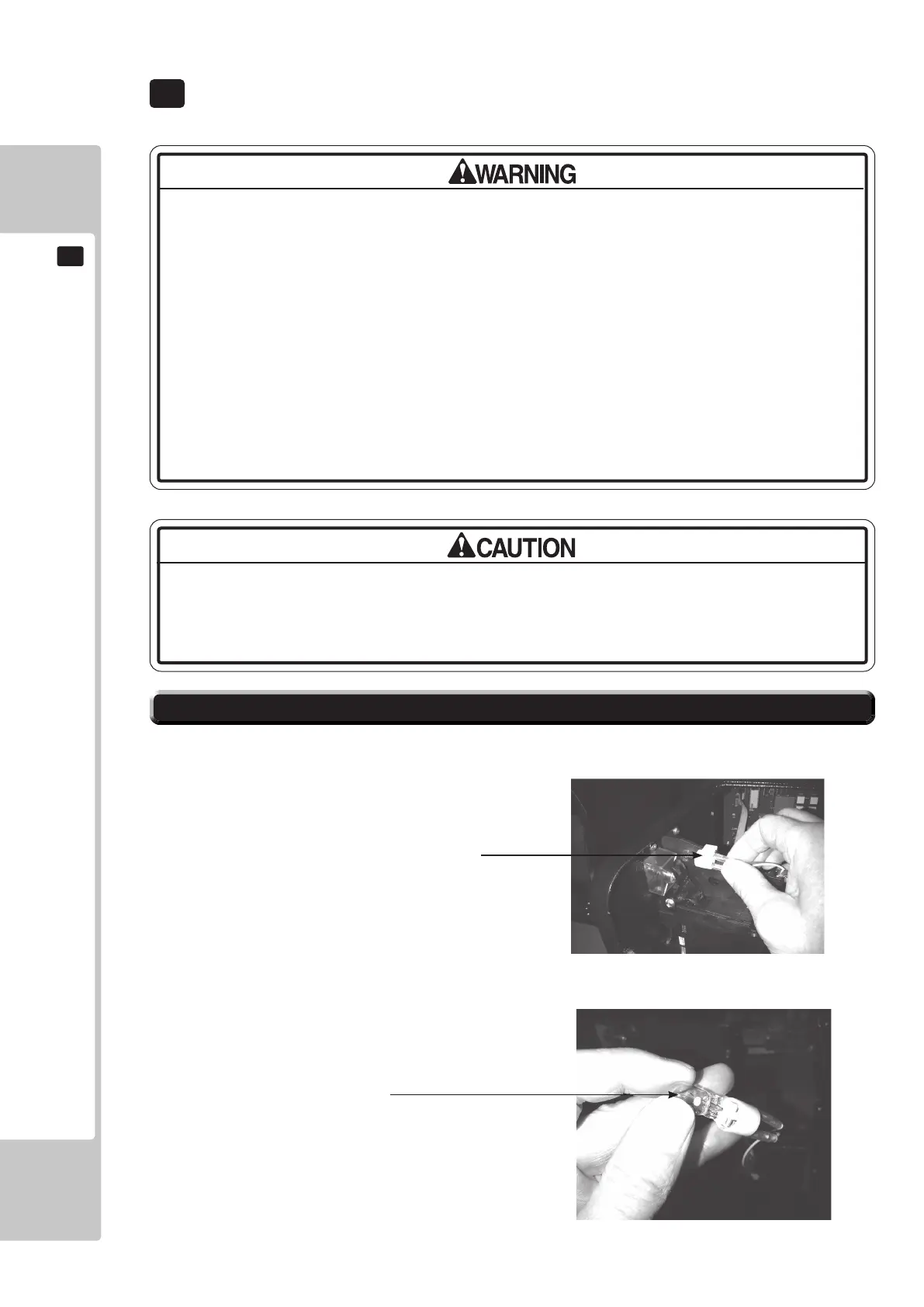

Step 1 Open the Coin Door and locate the Lamp Housing
directly behind the Coin Insert Bezel.
Step 2 Hold the Lamp Housing rmly between your index
nger and thumb and gently pull upwards. Do not try
to remove the Lamp Housing whilst holding the bulb as
the bulb may break causing injury.
Step 3 Once the Lamp Housing has been removed, carefully
hold the bulb between your ngers and pull the Lamp
Housing away.
Do not twist either bulb or Lamp Housing while removing the
bulb as this may cause damage to both bulb and/or Housing.
Step 4 Simply push-t a replacement bulb of the same type
and follow these steps in reverse to ret.
13-1COINDOORLAMP
Lamp Housing
Type: Wedge Bulb - 12v, 1.2w
13 LAMPSANDLIGHTING
