EXPLANATION OF TEST AND DATA DISPLAY
35
9
The Switch Unit and Counters are housed within the Coin Tower. To access these controls you will
need to open the Coin Door. The switches and counters can be found directly on the rear face of the
Tower.

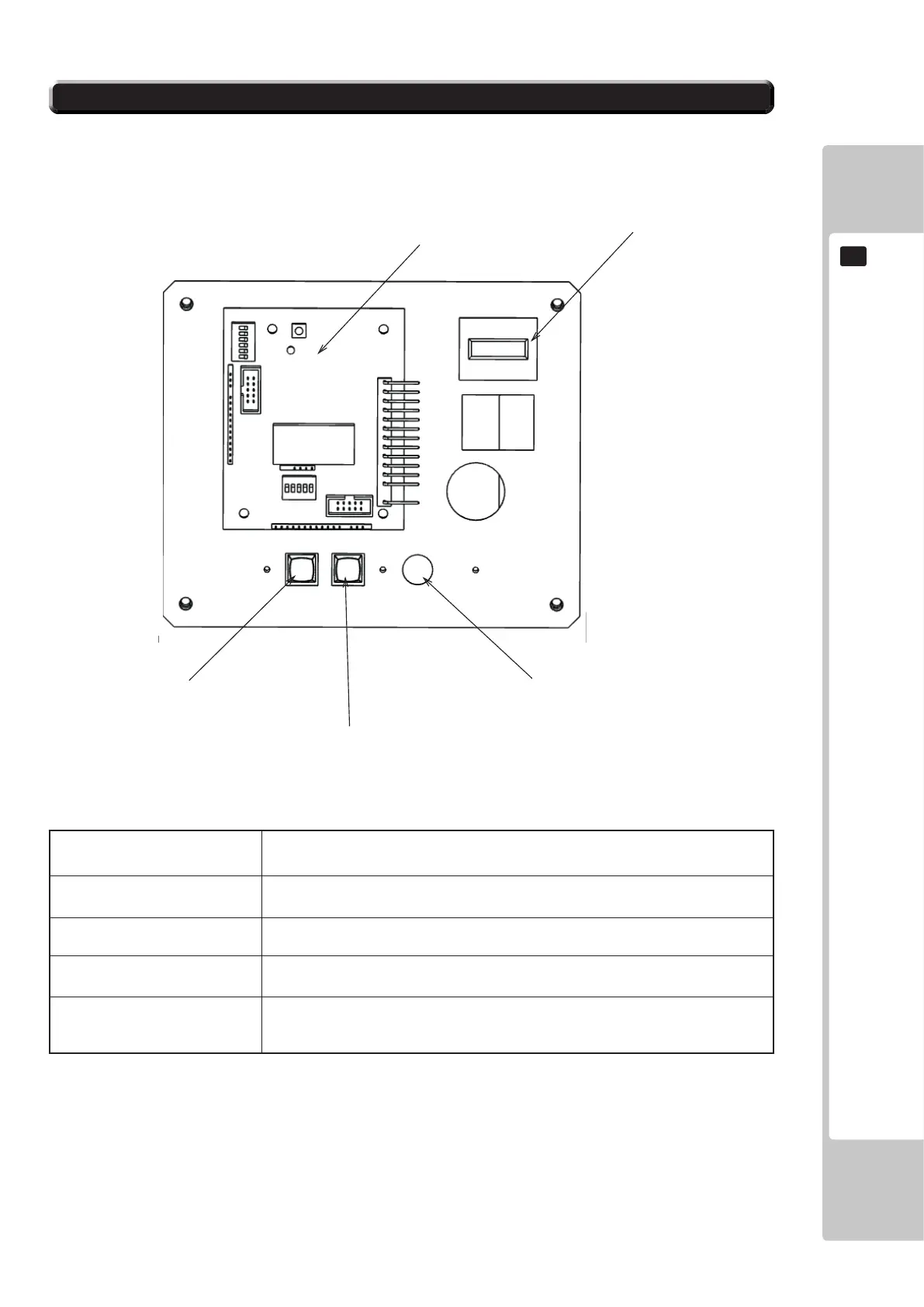

9-1SWITCHUNITANDCOINMETER
CREDIT BOARD
COIN IN COUNTER
VOLUME CONTROL
SERVICE BUTTON
TEST BUTTON
DEVICE FUNCTION
TEST BUTTON
Press to enter TEST MODE - Also used to enter choices selected within
TEST MODE
SERVICE BUTTON Press for SERVICE CREDIT - Also used to scroll through TEST MENUs
COIN IN COUNTER Counts inserted coins (£0.10 or $0.10 = 1 count)
VOLUME CONTROL Adjusts audio level
