48
EXPLANATION OF TEST AND DATA DISPLAY
9

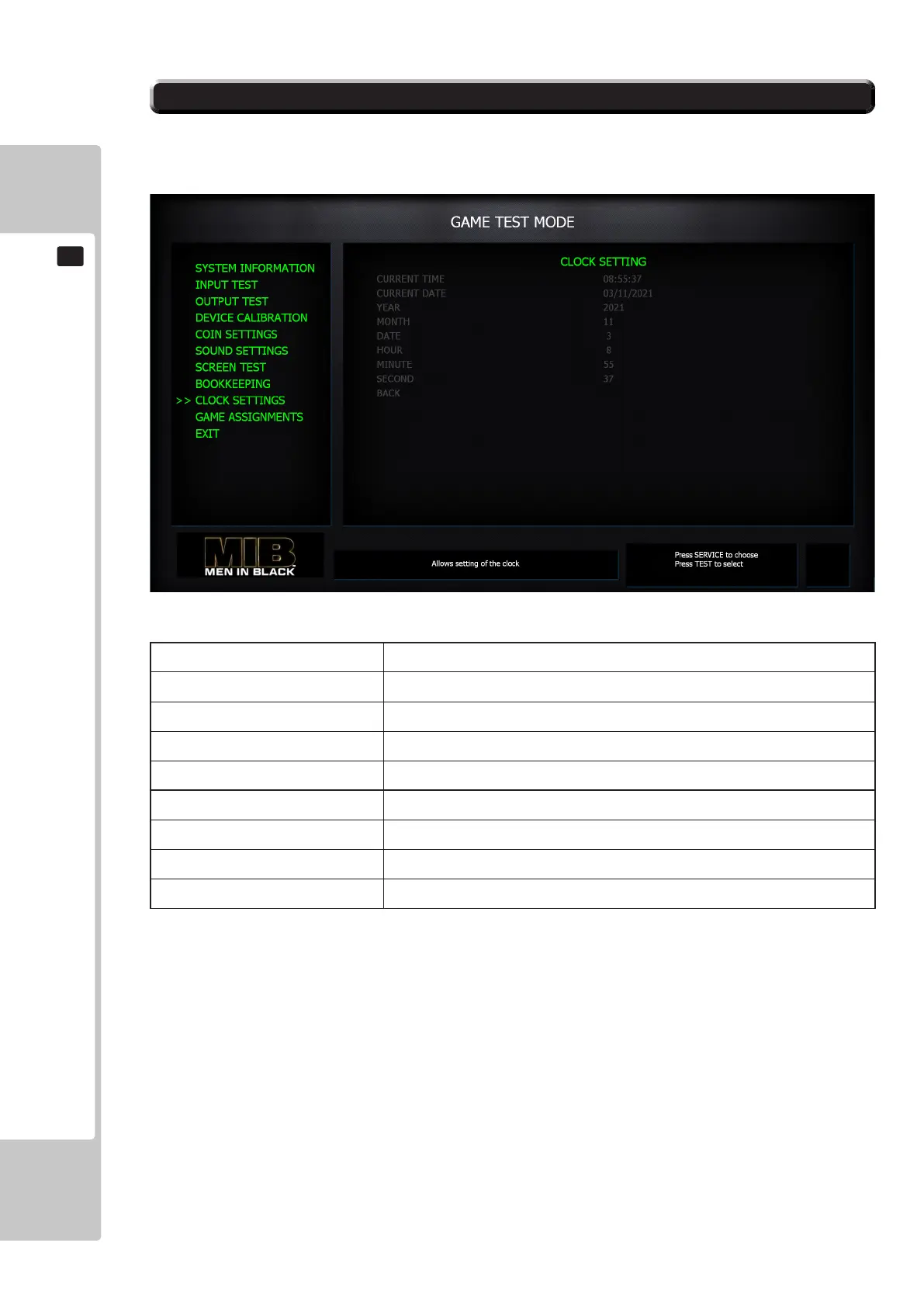

9-11CLOCKTEST
This menu allows you to set the internal Cabinet clock.
Current Time
Displays current time (24 Hour)
Current Date
Displays current Day/Month/Y
ear
Y
ear
Adjust Y
ear
Month
Adjust Month
Date
Adjust Day
Hour
Adjust Hour (24 Hour)
Minute
Adjust Minute
Second
Adjust Second
Back
Return to Main T
est Menu
56
58
Table of Contents
Table of Contents
8
Handling Precautions
10
Precautions Regarding Installation
14
Precautions Regarding Operation
17
Before Operation
17
Paying Attention to Customers
19
Accessories
22
Assembly and Installation
23
Installing the Billboard Letters
31
Fixation to Installation Site
33
Connection of Power and Ground Cables
34
Confirmation of Installation
36
Components that Change State Upon Powering up
37
Precautions When Moving
38
Moving the Machine
38
Game Description
40
Game Outline
40
Game Features
40
Switch Unit and Coin Meter
44
Game Test Mode
45
System Information
46
Input Test
47
Output Test
48
Calibration Test
49
Coin Test
50
Sound Test
51
Screen Test
52
Bookkeeping
53
Clock Test
57
Game Assignments
58
General Description
59
Cleaning the Screen
60
On-Screen Adjustment Method (Osd)
61
Controller Unit
67
Removing the Controller
68
Maintaining the Controller
70
Coin Handling
73
Cleaning the Coin Selector
73
Fault Finding
76
Adjusting the Price of Play (Excel)
77
Coin Region & Price of Play Settings
78
Price of Play Quick Start - Usa
80
Lamps and Lighting
81
Coin Door Lamp
81
Cabinet Led List
82
Periodic Inspection
85
Troubleshooting
87
Troubleshooting (no Error Message)
87
Game Board
89
How to Remove Game Board
90
Design Related Parts
92
Parts List
93
Schematic Diagrams
116
