EXPLANATION OF TEST AND DATA DISPLAY
39
9

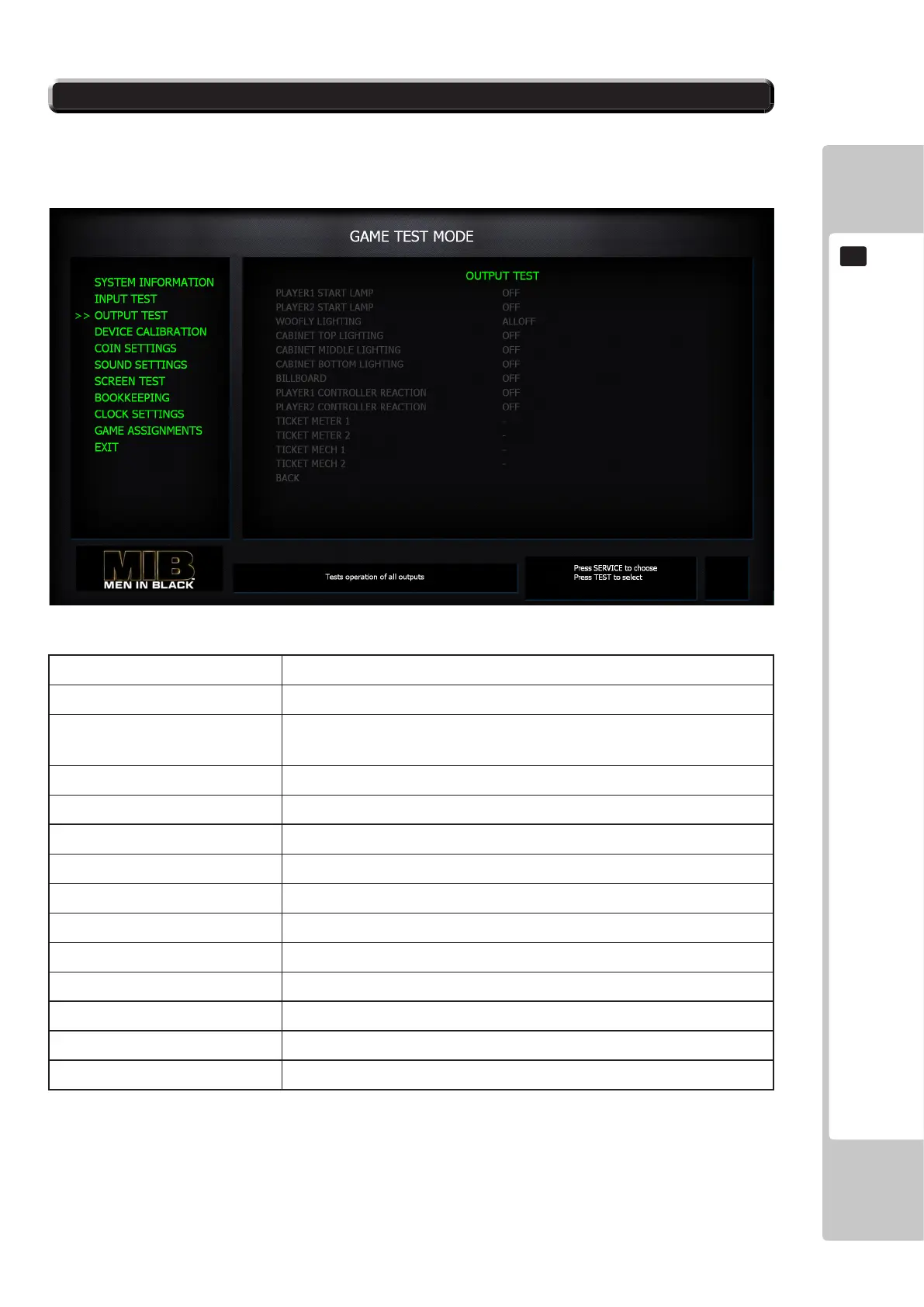

9-5 OUTPUT TEST
This menu tests the output functions of lighting, controllers, and ticket mechs.
Player1StartLamp
ON = P1 Start Lamp illuminated - OFF = P1 Start Lamp o󰀨
Player2StartLamp
ON = P2 Start Lamp illuminated - OFF = P2 Start Lamp o󰀨
WooyLighting
Test all gameplay related lighting for Controllers, Cab, and Innity
Mirror
CabinetTopLighting
Tests RGB lighting for top 2 tubes (RED-GREEN-BLUE-OFF)
CabinetMiddleLighting
Tests RGB lighting for middle 2 tubes (RED-GREEN-BLUE-OFF)
CabinetBottomLighting
Tests RGB lighting for bottom tube (RED-GREEN-BLUE-OFF)
Billboard
ON = Billboard lighting illuminates - OFF = Billboard lighting o󰀨
P1ControllerReaction
ON = Activates Solenoid in P1 Controller - OFF = No reaction
P2ContollerReaction
ON = Activates Solenoid in P2 Controller - OFF = No reaction
TicketMeter1
Increase Ticket Counter by increments of 1 for Player 1
TicketMeter2
Increase Ticket Counter by increments of 1 for Player 2
TicketMech1
Vend ticket from Ticket Mech 1 (Player 1)
TicketMech2
Vend ticket from Ticket Mech 2 (Player 2)
Back
Return to Main Test Menu
