Section 7: Valve Maintenance
MAX Valve Repair and Replacement
2016 Bambi MAX Service Manual – Models 1518-3542 (Version E) 37
We Engineer Solutions
Top Seal Replacement
Replacement of the top seal doesn’t necessarily require removal of the valve unless you are planning other
maintenance functions at the same time. To remove the valve, please refer to the valve removal section in
the maintenance section of this manual.
Tools required: Allen key 1/8"

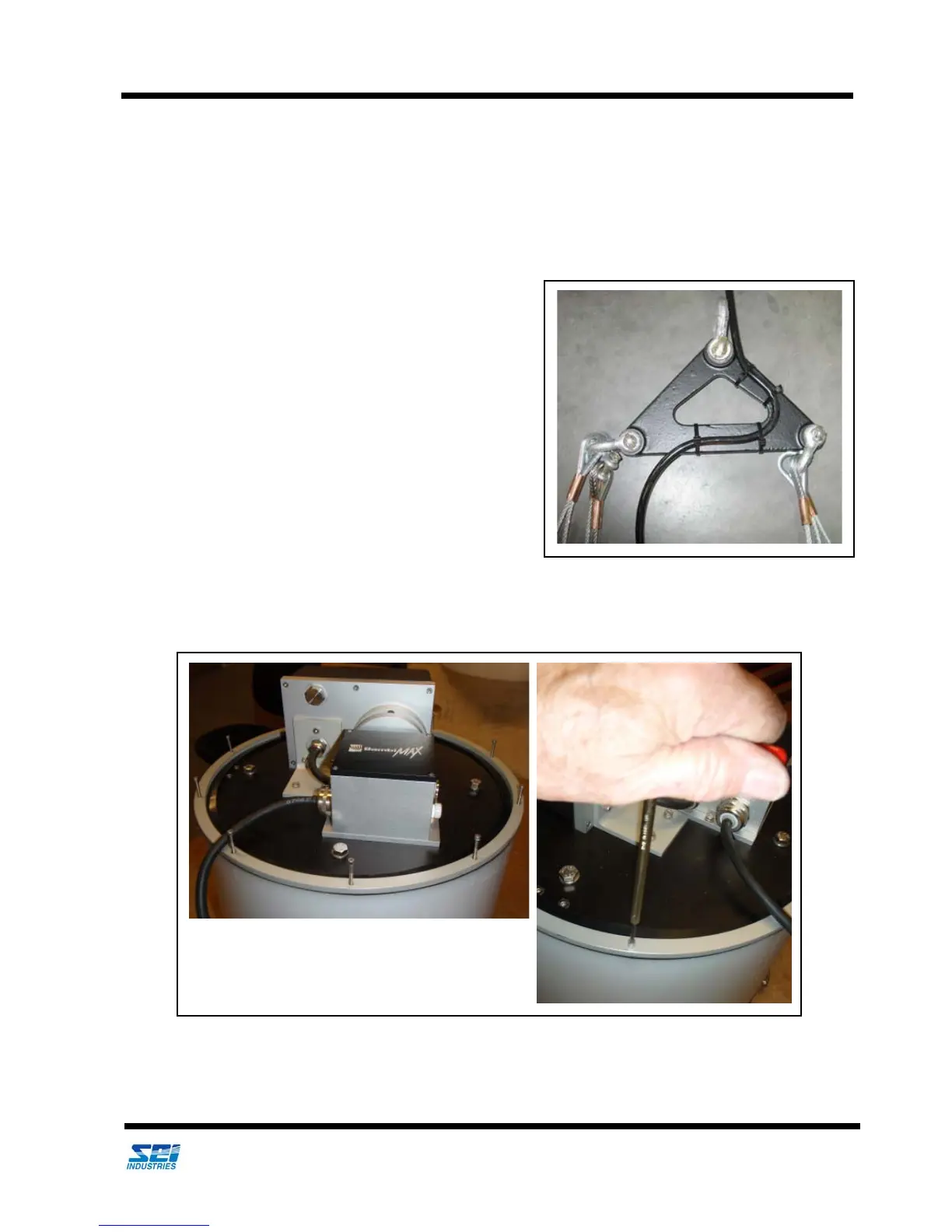

1. To replace the top seal with the valve still in the
bucket, first detach the control cable from the head
and the IDS deployment cable and hub. Coil the
cable up and place it inside the top of the shell.
2. Remove all the Allen head bolts from the top clamping ring. These bolts are extra long to give us
maximum holding strength in plastic.
