Section 7: Valve Maintenance
MAX Valve Repair and Replacement
2016 Bambi MAX Service Manual – Models 1518-3542 (Version E) 38
We Engineer Solutions

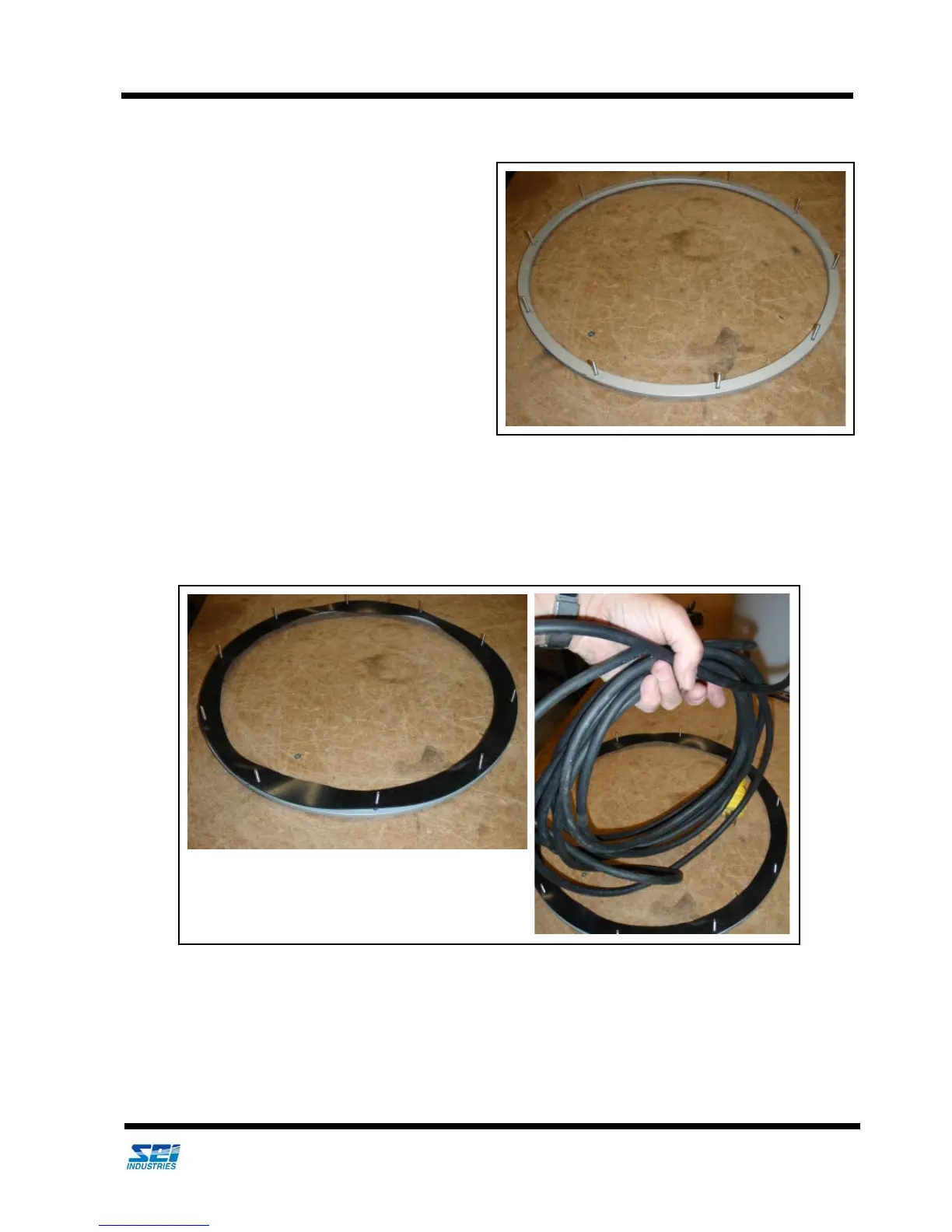

3. Remove the top ring and pass the coiled control cable through the middle of the ring.
4. Take the ring and old seal out of the shell.
Place the ring on a level surface with all
bolts inserted into the ring.
5. Slip the new seal over the bolts and return the ring with seal to the shell. Pass the control cable
through the ring, making sure to pass the cable through from the seal side.
