3-1
3. Introduction

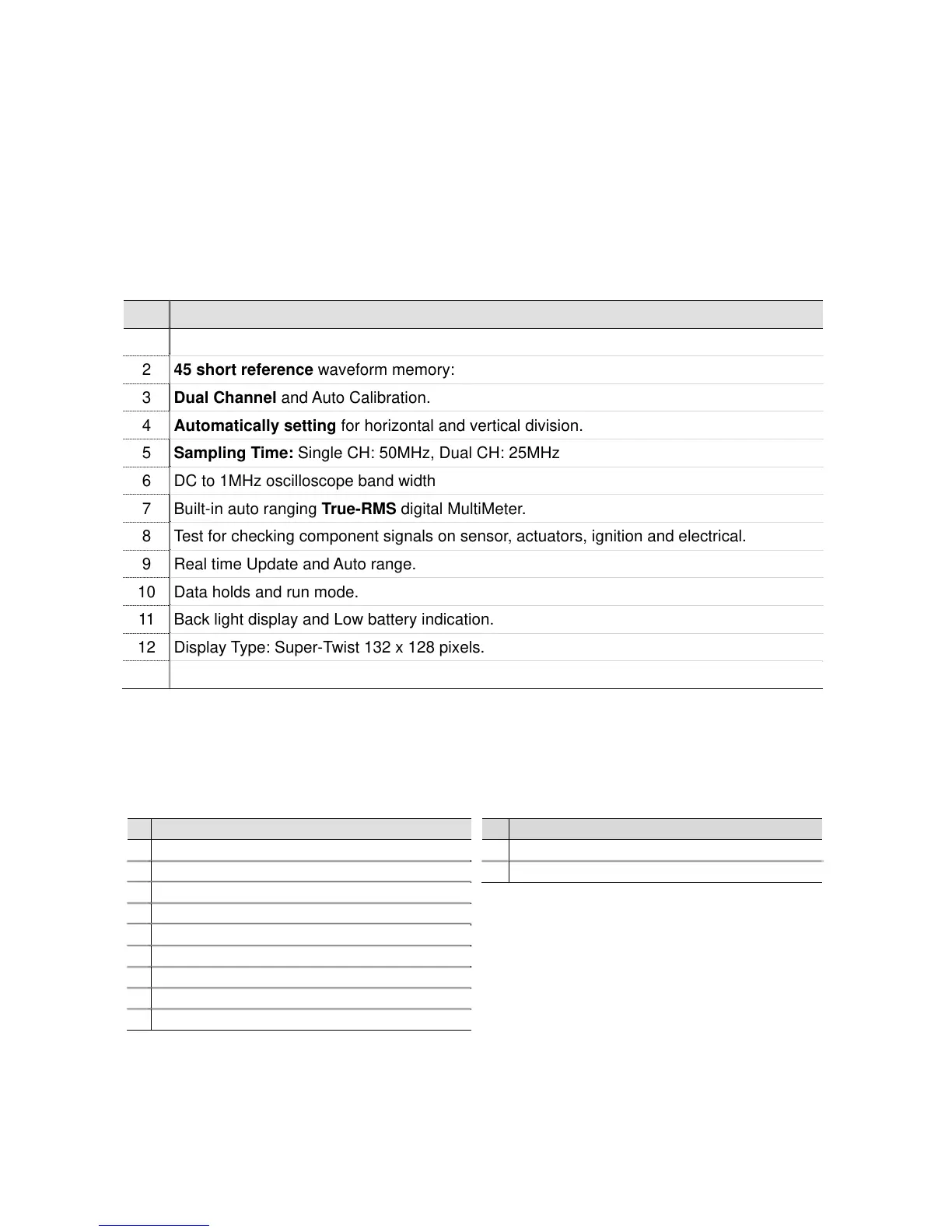

3.1. Main Features
This Programmable Automotive Scope Meter offers enhanced features that similar type test
instruments on the market today don't have.
All the functions are designed to be very convenient to use. You can quickly get used to working
with this METER and the great many functions integrated inside. This instrument features:
No Features
1 RS-232C interface for transferring measurement data and waveform.
2 45 short reference waveform memory:
3 Dual Channel and Auto Calibration.
4 Automatically setting for horizontal and vertical division.
5 Sampling Time: Single CH: 50MHz, Dual CH: 25MHz
6 DC to 1MHz oscilloscope band width
7 Built-in auto ranging True-RMS digital MultiMeter.
8 Test for checking component signals on sensor, actuators, ignition and electrical.
9 Real time Update and Auto range.
10 Data holds and run mode.
11 Back light display and Low battery indication.
12 Display Type: Super-Twist 132 x 128 pixels.
13 Designed to comply with safety standard for UL3111, CSA C22.2 No.1010-1
3.2. Unpacking the Test Tool Kit
The following items are included in your test tool kit.
■ STANDARD ■ OPTION
# Description <Cont.>
1 Industrial Scope Meter Test Tool <1>
2 Holster <1>
3 Li-ION Battery Pack (installed) <1>
4 AC Power & Rechargeable Adaptor <1>
5 Test Leads <2>
6 Users Manual (this book) <1>
7 RS-232 Cable <1>
8 Scope Meter Software for Windows <1>
9 Carrying case <1>
# Description <Cont.>
1 Inductive Pick-up <1>
2 Capacitive Pick-up <1>
Note:
When new, the rechargeable Li-ION battery pack is not fully charged.
The accessories may be changed to improve the product quality without notifying the
customers.
