Seintek S2800 - Cmp Mag; CMP Lores

10-7

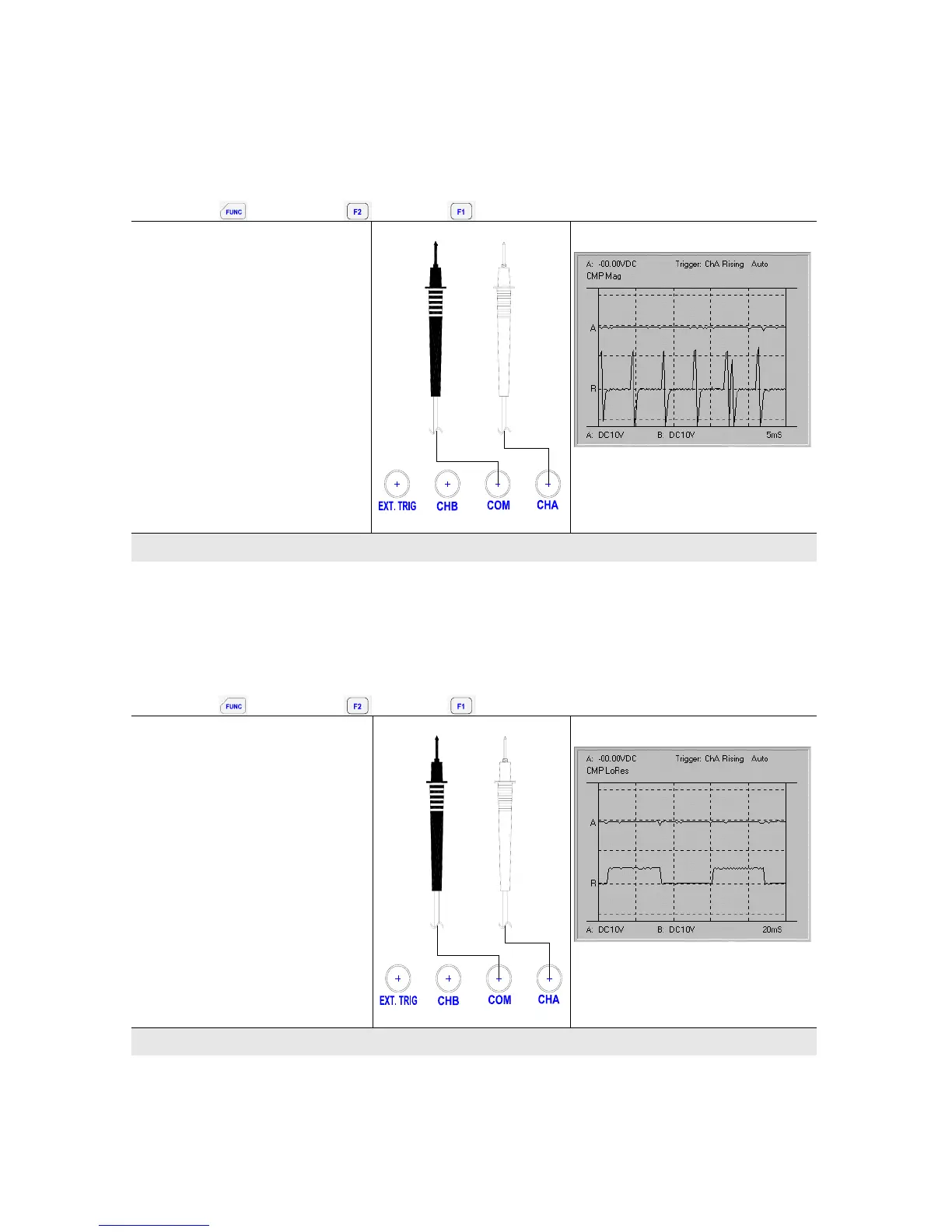

10.1.11. CMP MAG
Measures and compares the Camshaft magnetic sensor signal.
Path:
Î Î
Î
CMP MAG
CMP MAG
BLACK TO SENSOR BODY OR
ENGINE (CHASSIS)
RED TO SENSOR OUTPUT
To engine (chassis)
To sensor output
Measured waveform should be
stable.
Normal CMP Mag Sensor waveform
10.1.12. CMP LoRes
Measures and compares the Camshaft low accuracy sensor signal.
Path:
Î Î
Î
CMP LoRes
CMP LoRes
BLACK TO SENSOR BODY OR
ENGINE (CHASSIS)
RED TO SENSOR OUTPUT
To engine (chassis)
To sensor output
Measured waveform should be
stable.
Normal CMP LoRes Sensor waveform
