3-3

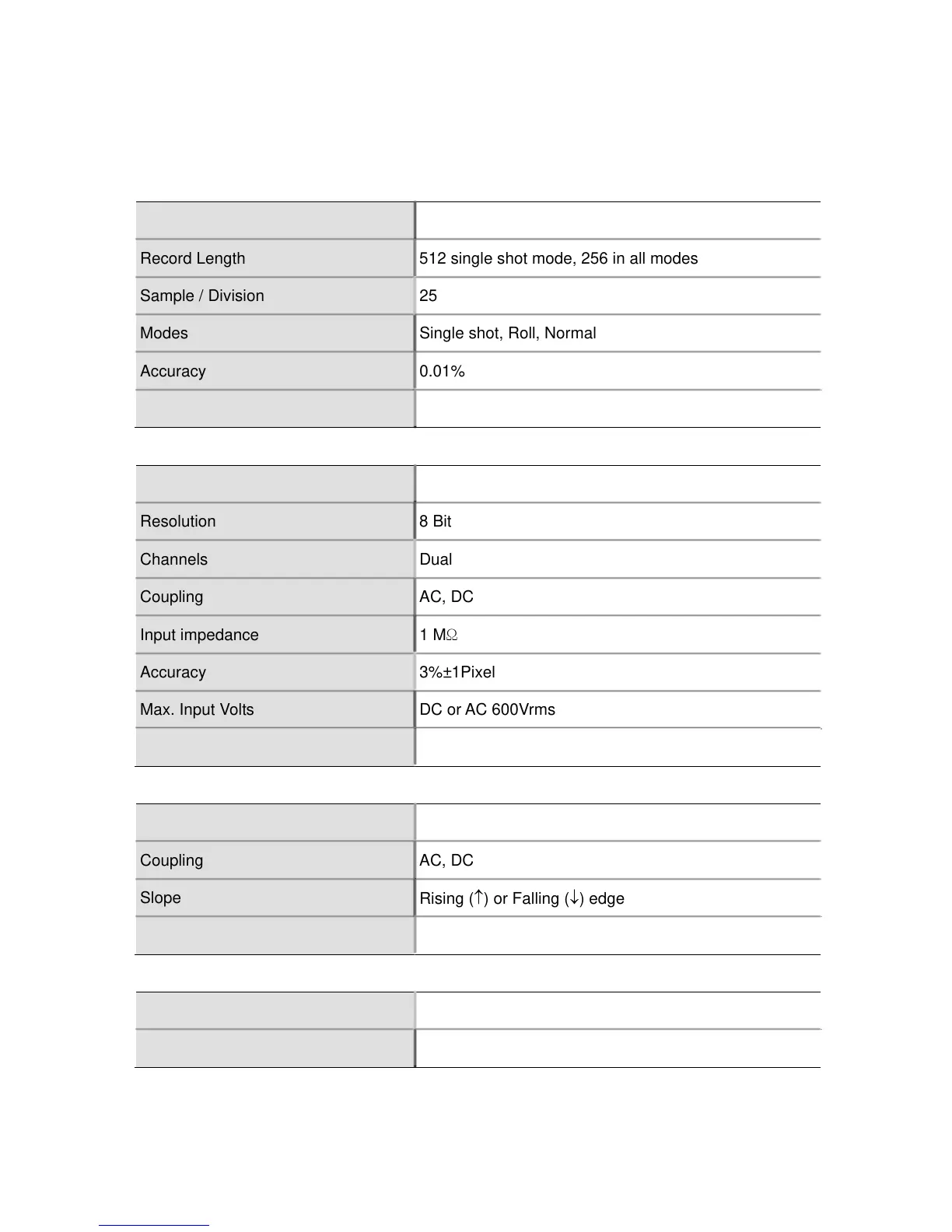

3.3.2. Technical Specification
1) Oscilloscope Function
(1) Horizontal
Sample Rate 50 MS/s (Single CH mode), 25 MS/s (Dual CH mode)
Record Length 512 single shot mode, 256 in all modes
Sample / Division 25
Modes Single shot, Roll, Normal
Accuracy 0.01%
Sweep Rate 1uS to 5S in 1, 2, 5 sequence
(2) Vertical
Bandwidth 1MHz
Resolution 8 Bit
Channels Dual
Coupling AC, DC
Input impedance
1 MΩ
Accuracy 3%±1Pixel
Max. Input Volts DC or AC 600Vrms
Volt / Division
0.5V to 500V in 1, 2, 5 sequence and
500V to 50kV for Ignition Secondary
(3) Triggering
Type CHA, CHB, External
Coupling AC, DC
Slope
Rising (↑) or Falling (↓) edge
Internal Trigger Sensitivity 2 / 20 Division
(4) Waveform Memory
Waveform Memory 8 Shots
REF Wave From Memory 45 Shots
