7) Memory Address
▪ 0 to 7
8) Live Scope Display (Channel A)
Displays real time waveforms and freezes held captures.
9) Channel B or Reference Display
10) Channel A Vertical Division
11) Channel B Vertical Division
12) Horizontal Division (Time base)
13) Command Menu Field

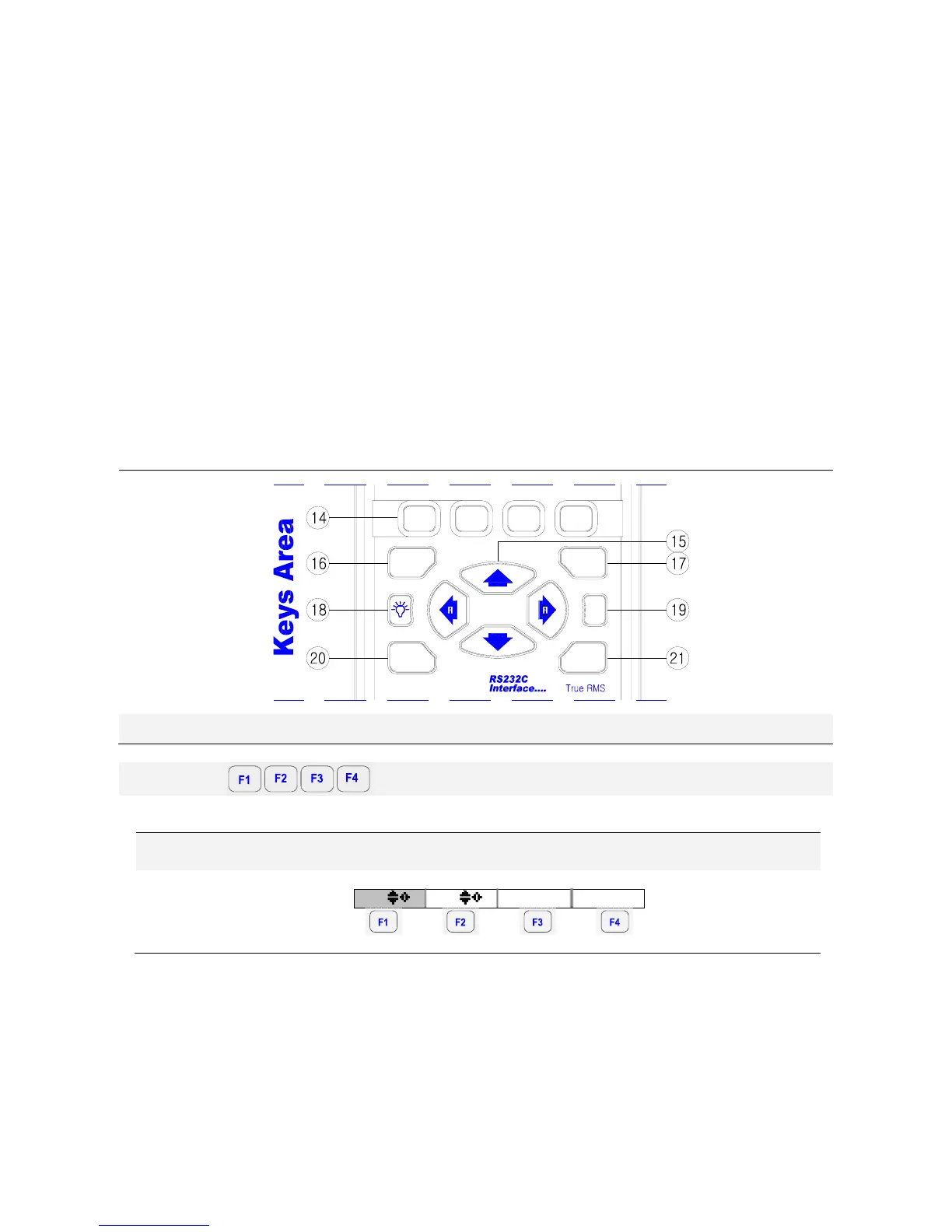

4.2. Keys Area
?
I / O FUNC
DIV
F1
F2
F3
F4
TRIG
[Keys Area]
14)
Command Menu keys
All Keys are command buttons. They are labeled F1~F4. These keys will have various functions.
① Default (Command Menu)
A B Mem Hold
To Next Page
