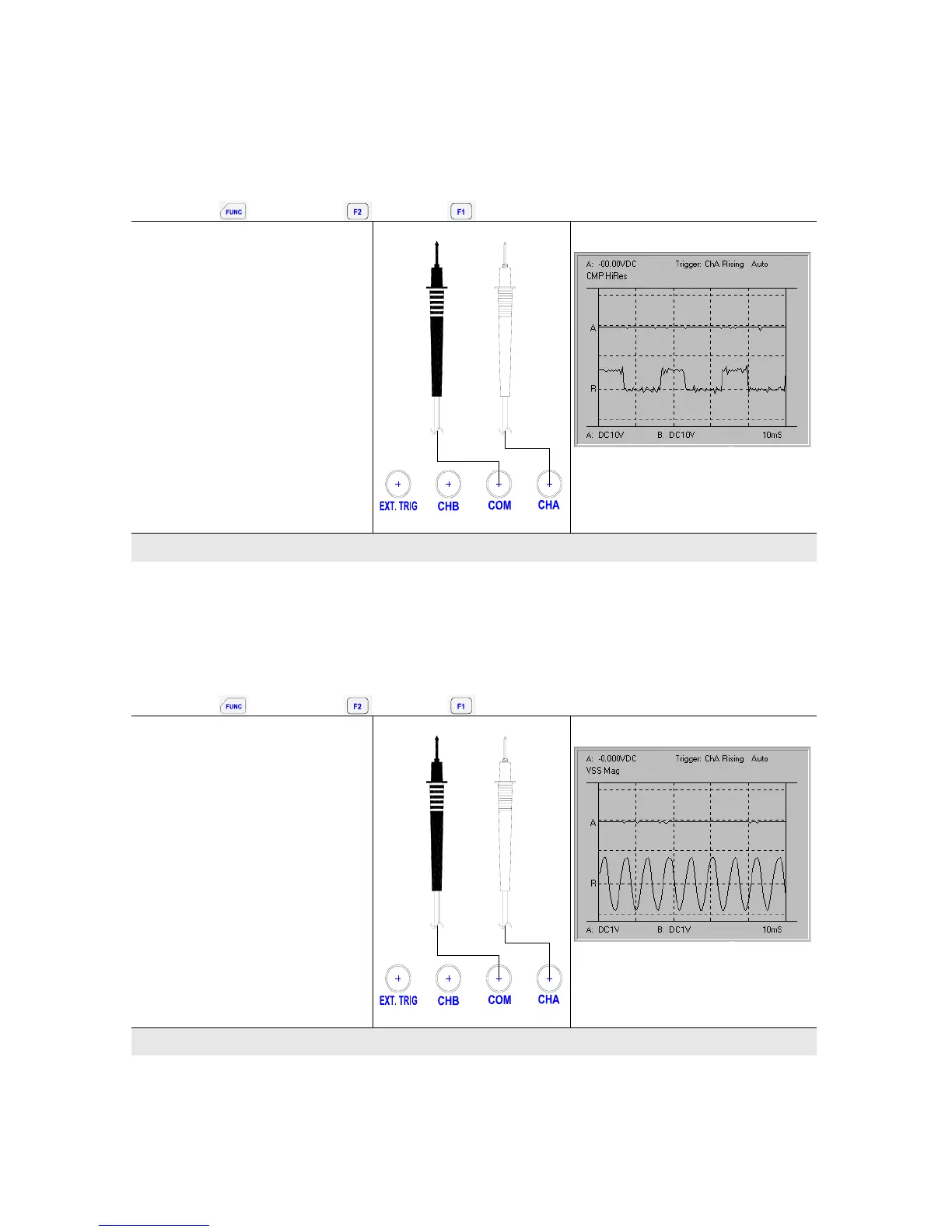

10.1.13. CMP HiRes
Measures and compares the Camshaft high accuracy sensor signal.
Path:
Î Î
Î
CMP HiRes
CMP HiRes
BLACK TO SENSOR BODY OR
ENGINE (CHASSIS)
RED TO SENSOR OUTPUT
To engine (chassis)
To sensor output
Measured waveform should be
stable.
Normal CMP HiRes Sensor waveform
10.1.14. VSS MAG
Measures and compares vehicle speed sensor-magnetic signal.
Path:
Î Î
Î
VSS MAG
VSS MAG
BLACK TO SENSOR BODY OR
ENGINE (CHASSIS)
RED TO SENSOR OUTPUT
To engine (chassis)
To sensor output
Measured waveform should be
stable.
Normal VSS Mag Sensor waveform
