8-5

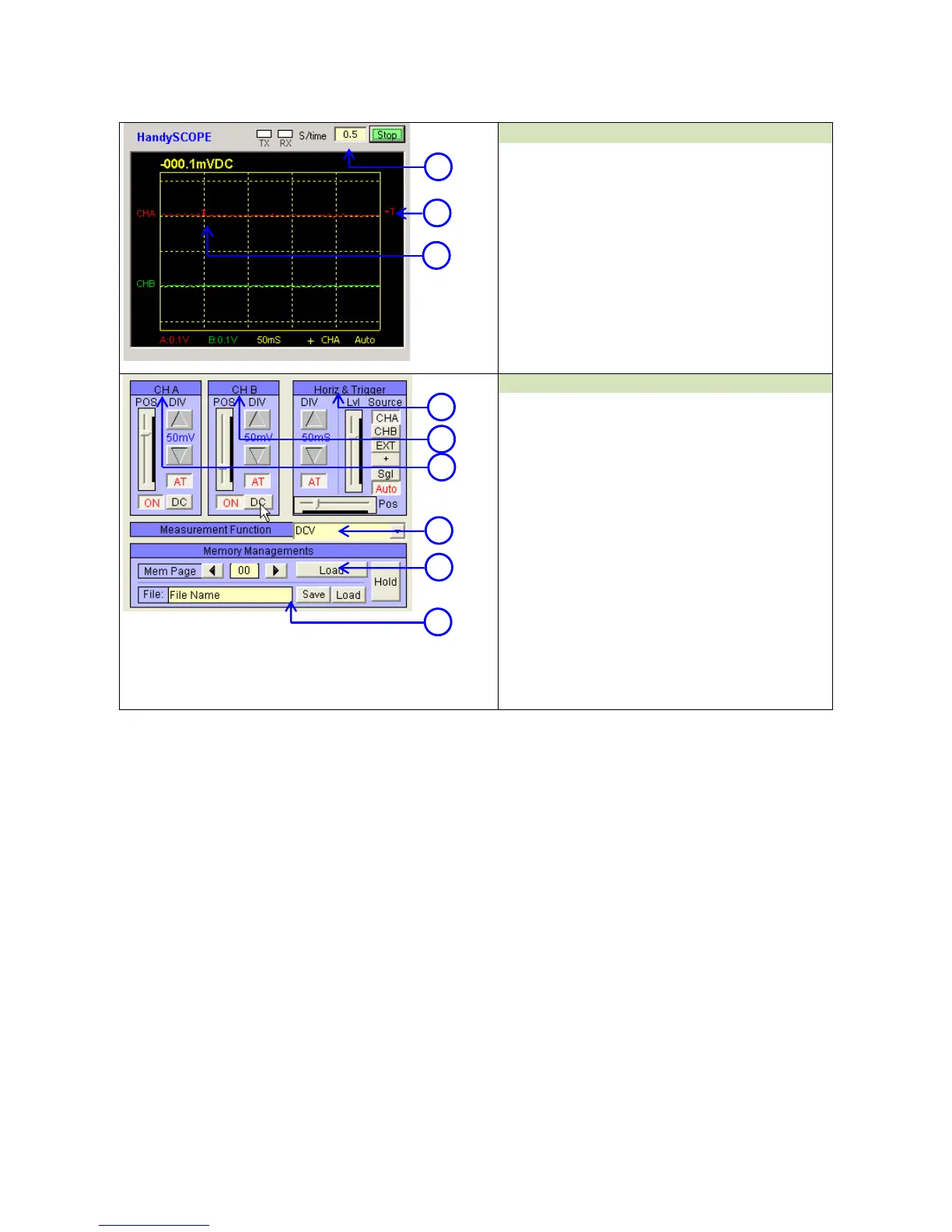

Display Area
① Sampling Time (0.001 to 9999)
② Trigger level indicator (-T)
③ Trigger point indicator (T)
Control Panel Area
④ Channel A (Vertical Position, Division,
Auto, ON/Off and DC coupling)
⑤ Channel B (Vertical Position, Division,
Auto, ON/Off and DC coupling)
⑥ Horizontal Division and Trigger
(Horizontal Division, Auto, Trigger Level,
Source and Position)
⑦ Measurement Function (
DCV, ACV, OHM, BZ,
Hz, RPM, Pulse Width and Duty
)
⑧ Recalling Screens from Memory
⑨ Storing and Recalling Screens from PC
Data
2
3
1
6
5
4
7
9
8
