6.3.4 LuFuView trend view of its Silent Spaces area
The trend silent spaces area provides trends of Functional Lung Spaces (FLS), Dependent
Silent Spaces (DSS), Non-Dependent Silent Spaces (NSS), and the vertical component of the Center of
Ventilation (CoV(v)) (9.10).

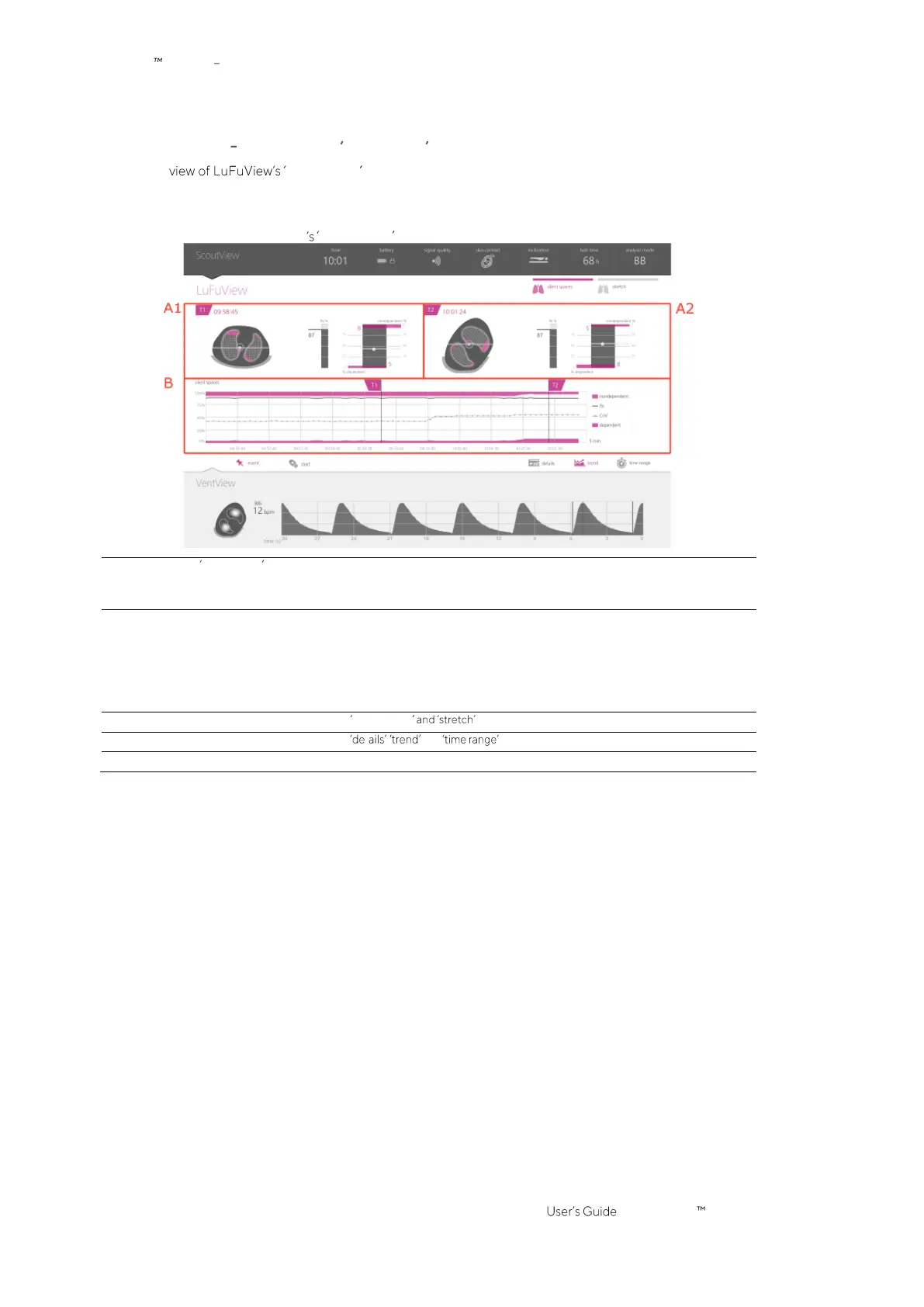

Figure 6-12: Trend view of LuFuView silent spaces area
A. Miniaturized silent spaces
details views at flags T1 (A1)
and T2 (A2)
Visualize at time T1 and T2
- the Silent Spaces Image (also indicating rotation at the respective time)
- the Functional Lung Spaces bar
- the Silent Spaces bar
B. Trends of FLS, DSS, NSS and
CoV(v)
The four trends represent
• with 0% at the
bottom:
Functional Lung Spaces (FLS)
Dependent Silent Spaces (DSS)
• with 0% at the top:
Non-Dependent Silent Spaces (NSS)
Vertical component of the Center of Ventilation (CoV(v))
Refer to 6.5.2 for a description of the common characteristics of trends.
Refer to Figure 6-3 for a description of the buttons silent spaces
Refer to Figure 6-4 for a description of the buttons t , and
Refer to Figure 6-5 for a description of the GUI elements being visible on all views
