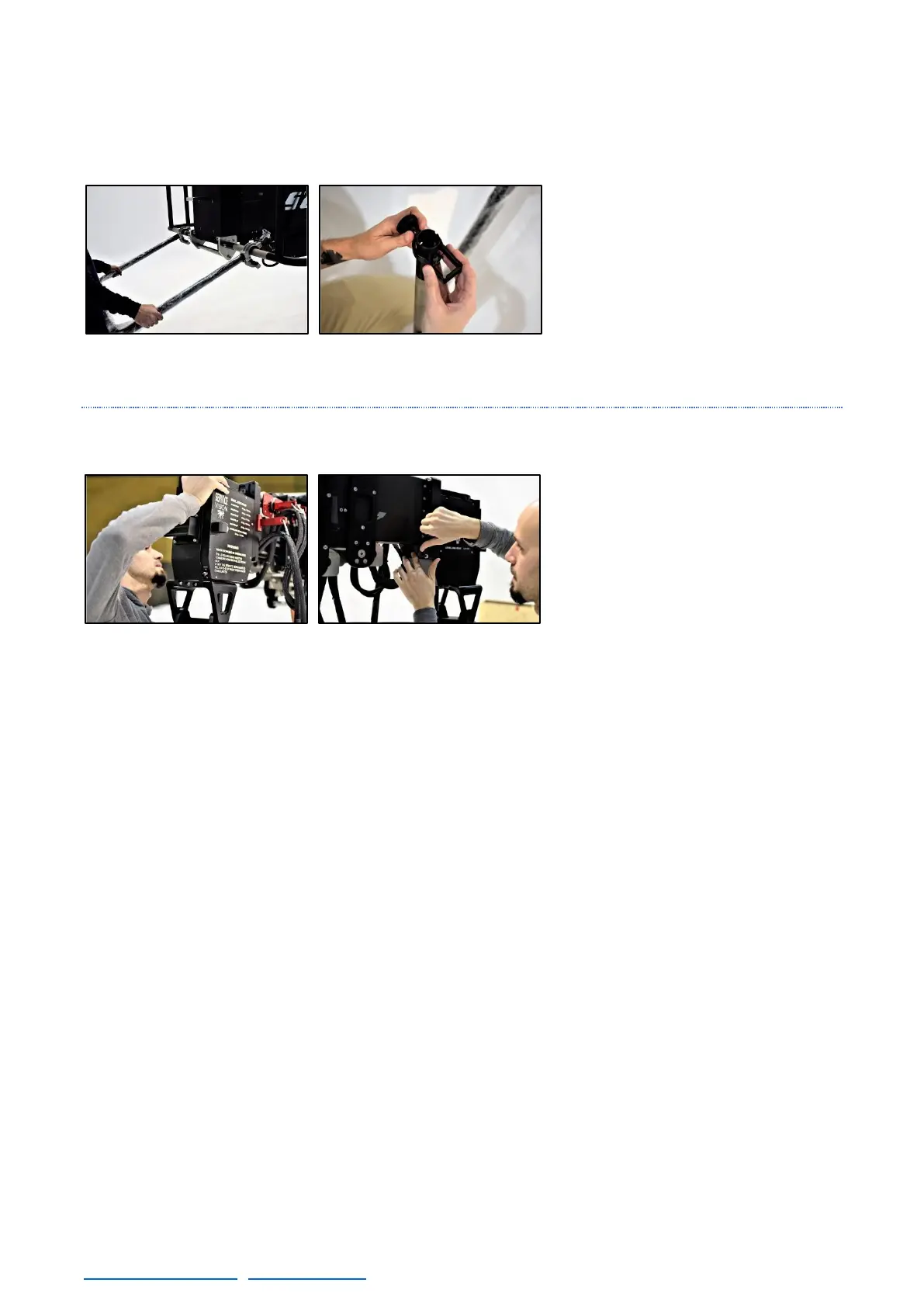

With the sidebars mounted, proceed to assemble the upper operation bars. Attach all the Allen
screws slightly until all of them are set. Then tight them completely once the whole structure is
assembled.
To assembly the lower operation
bars open the knob until the bracer
opens. Then attach the bracer in the
rear part of the protection bars and
close the bracer with the knob and
tight. To apply friction, tight more the
knob.
SEVENTH STEP: ASSEMBLY THE LEVELING HEAD
To assembly the Leveling head slide
it into the desired high at the end of the
arm and tight the six Allen screws to
hold the Leveling head in place.
