Sharp AL-1642CS - Optical Frame

– 8 –
7

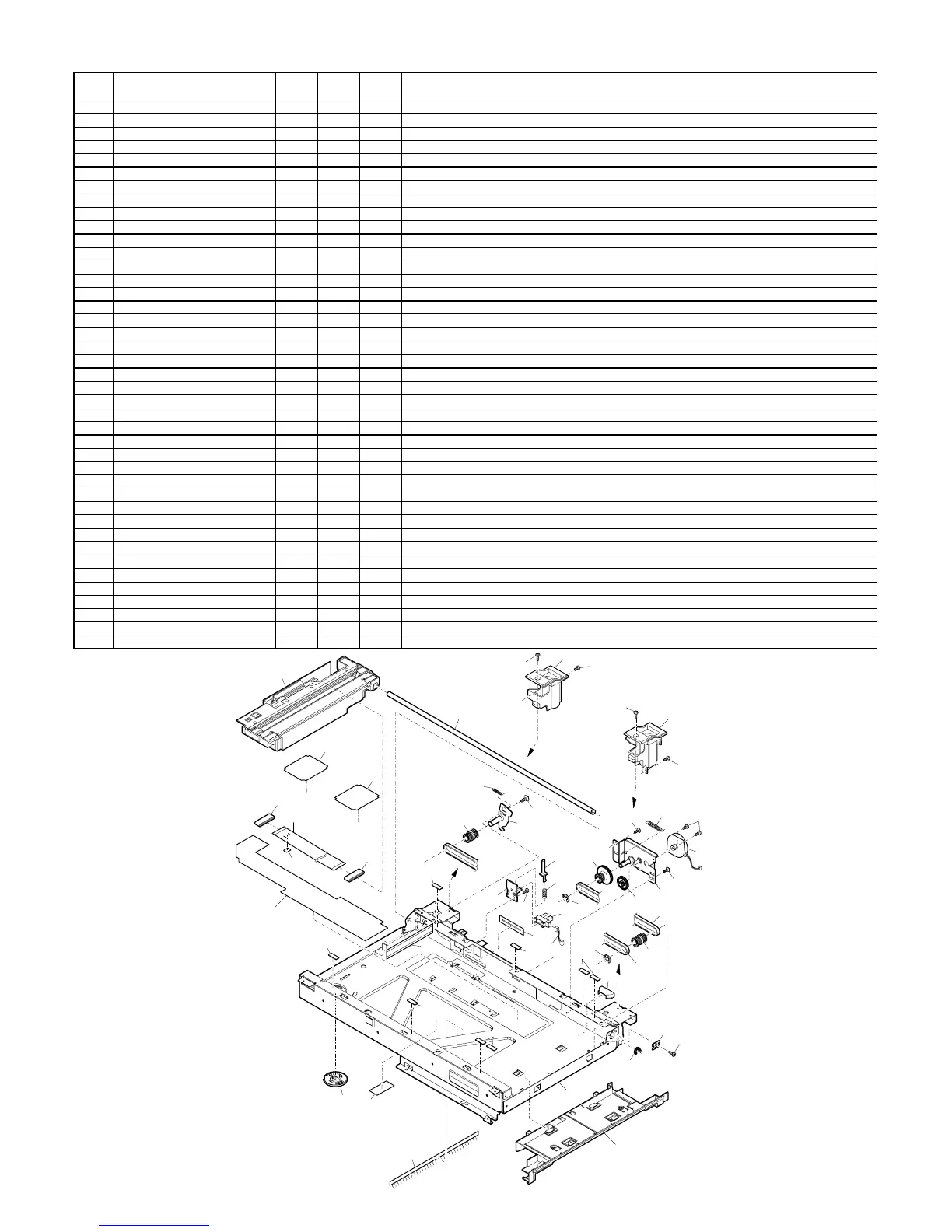

Optical frame
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
1 CGERH0162QS01 AN C Pulley gear
2 CPLTM0288QS01 BC E Scanner plate
3 CPLTM0291QS01 AG C Tension plate
4 CPLTM0294QS01 AK C Motor fixing plate
5 CPLYZ0028QS01 AM C Idle pulley
6 DUNT-0404QSZZ BU E Carriage unit
7 LHLDZ0093QSZZ AC C Rod holder
8 LSTPF0013QSZZ AC C Rod stopper
9 LX-BZ0033QSZZ AB C Screw(3×6)
10 MLOKZ0004QSZ1 AD C Carriage lock
11 MSPRT0283QSZZ AC C Tension spring
12 MSPRT0284QSZZ AC C Motor spring
13 NBLTT0030QSZ1 AH B Belt
14 NBLTT0031QSZ1 AF B Belt
15 NGERH0161QSZZ AL C Idle gear
16 NSFTZ0063QSZZ AK C Slide shaft
17 PBRSR0002QSZ2 AG B Discharger brush
18 PGIDM0099QSZ1 AH C Paper guide
19 PGUMS0004QSZZ AA C Table glass cushion
21 PSHEZ0367QSZ1 AD C Cable fixing sheet
22 PDUC-0005QSZ2 AD C Fan duct JAG
23 PSHEZ0376QSZ1 AD C CCD insulate sheet
24 PSHEZ0377QSZZ AC C Edge protect sheet
25 RMOTS0046QSZZ AQ B Scanner motor
26 XHBS730P06000 AC C Screw(3×6)
27 XRESP50-06000 AA C E-ring(E5)
28 XRESP70-08000 AA C E-ring(E7)
29 PGIDM0019QSJZ AH C SPF hinge guide L
30 PGIDM0020QSJ1 AH C SPF hinge guide R
31 XHBS730P08000 AB C Screw(3×8)
32 RCORF0018QSZZ AR C FFC core
33 LPLTP0131QSZZ AD C Book sensor attachment plate
34 MLEVP0047QSE1 AD C Book sensor ACT
35 MSPRC0153QSZZ AB C Book sensor spring
36 VHPGP1A71A1-1 AG B Photo transistor(GP1A71A1)
37 DHAI-0303QSZZ AD C Harness
39 PSHEZ0389QSZ1 AK C Scanner sheet
40 DHAI-0268QSZ3 AG C CCD-MCU harness
43 PTPE-0045QSZZ AA C CCD harness double-sided tape
45 PSHEZ0349QSZZ AC C Insulated sheet C
13
14
17
19
19
19
19
19
19
6
16
10
21
21
2
3
4
5
5
15
1
8
7
18
9
9
9
11
12
25
26
29
30
32
32
31
31
31
31
33
34
35
36
37
24
28
27
39
23
31
26
PRP02717
22
40
43
45
7
Optical frame
