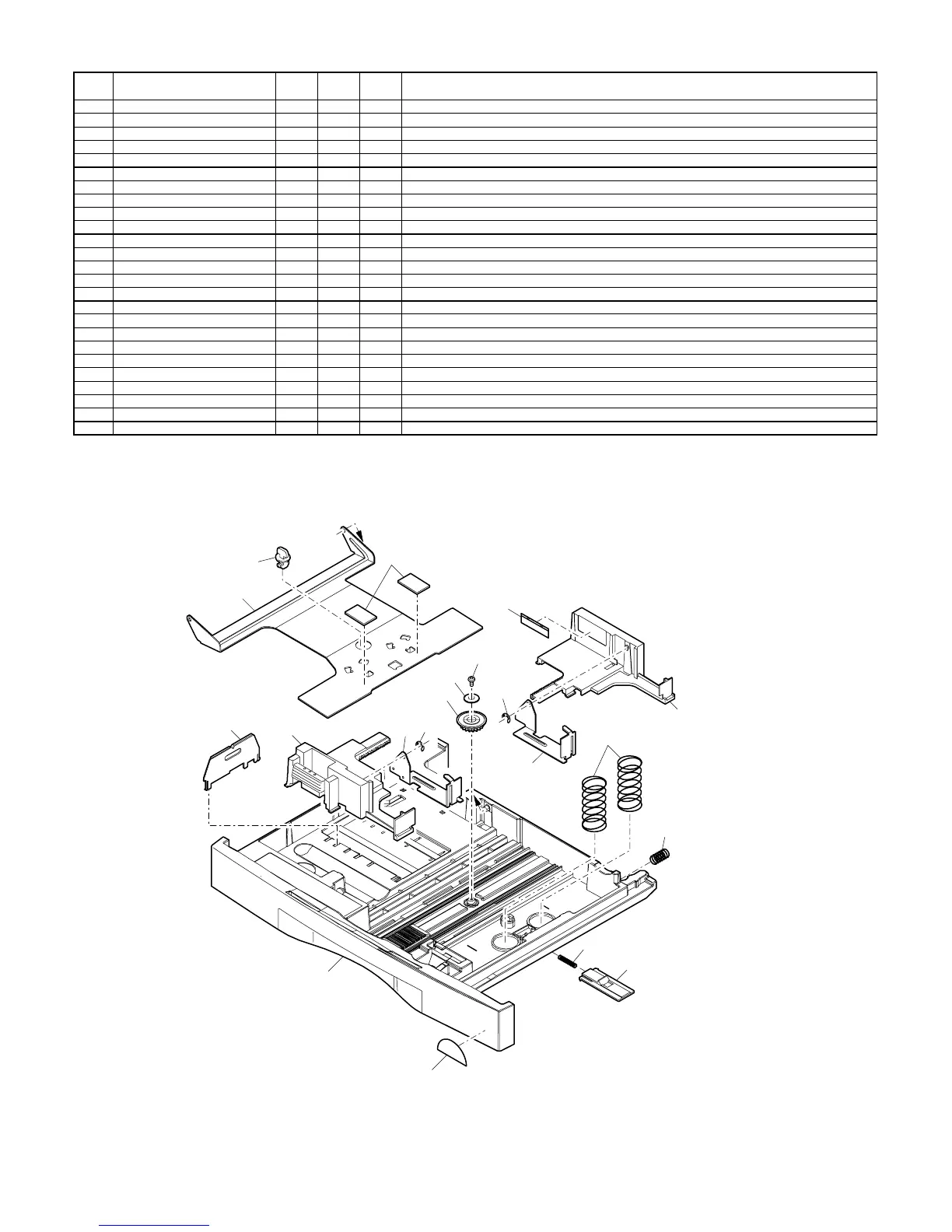

Sharp AL-1642CS - Software Installation Procedures

– 20 –
O
250 sheets tray
O
250 sheets tray
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
1 LPLTM5106FCZZ AR C Turning plate 250
2 PSHEZ4142FCZZ AC C Turning plate sheet
3 LHLDW1226FCZZ AB C Turn fastener
4 LPLTM2642FCG2 AD C Tray rear plate
5 LPLTP5107FCZ1 AG C 250 tray side plate F
6 PTME-0255FCZZ AG C 250 tray pawl F
7 XRESP40-06000 AA C E-ring(E4)
9 XEBS730P08000 AC C Screw(3×8)
10 LX-WZ2028SCZZ AA C Washer(φ12)
11 NGERH0193FCZZ AB C Manual feeding gear
12 TLABZ0546QSZZ AB D Indication label
13 LPLTP5108FCZ1 AG C 250 tray side plate R
14 PTME-0256FCZZ AG C 250 tray pawl R
15 MSPRC0108QSZZ AC C 250 tray spring
16 MSPRC1873FCZ1 AB C Tray spring
17 MSPRC1145FCZZ AA C Stopper spring
18 LSTPP0161FCZ1 AB C Rotation plate stopper
19 GCASP0001QSJ3 AZ D 250 tray case
20 TLABZ4047FCZZ AC D Energy star label
(Unit)
901 CCASP0001RS55 BF E 250 sheets tray unit(Except No.20)
PRP02729
20
17
18
19
15
14
7
9
10
11
7
6
5
4
1
2
12
13
3
16
