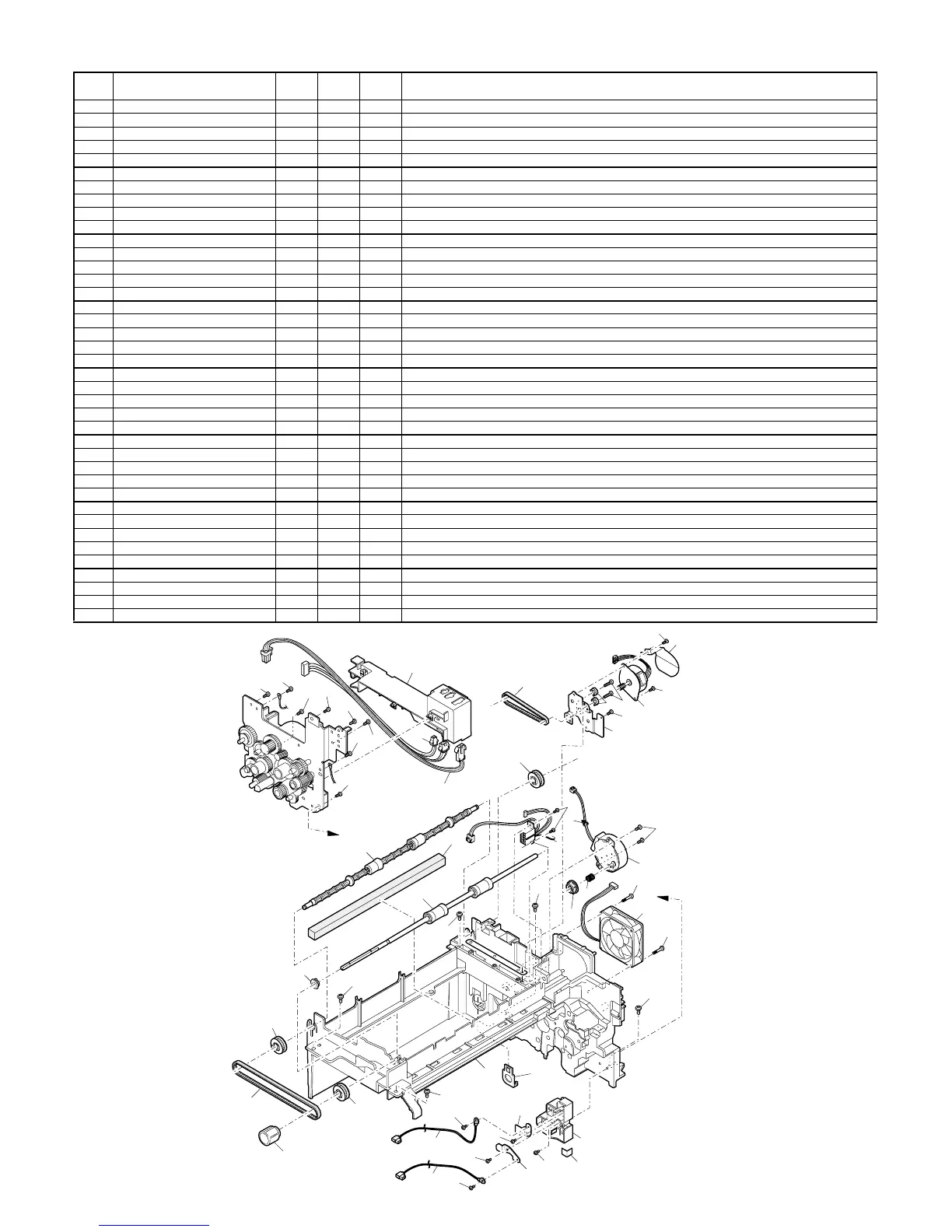

Sharp AL-1642CS - F Middle Frame

– 10 –
F
Middle frame
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
1 NROLP0007QSZ1 AQ C Delivery roller lower
2 NBRGC0579FCZZ AE C Roller bearing
3 NROLP0012QSZ2 AL C Delivery transport roller lower
4 NPLYZ0001QSZZ AE C Pulley(22T)
6 LBNDJ0043FCZZ AA C Snap band(SG-130)
7 NCPL-0002QSZZ AC C Hopper coupling S
8 MSPRC0330QSZZ AC C Hopper spring
9 RMOTD0009QSZZ AU B Toner motor
10 XEBS730P10000 AC C Screw(3×10)
11 XEBS730P30000 AC C Screw(3×30)
12 NFANP0005QSZ2 AU B Fan
13 LHLDZ0018QSZZ AE C TC high voltage holder
14 QSLP-0006QSZZ AE C BC HV electrode plate
15 XEBS730P06000 AA C Screw(M3×6)
16 QSLP-0005QSZZ AE C TC HV electrode plate
17 XBPSC30P06K00 AA C Screw(3×6K)
18 DHAI-0267QSZZ AG C BC harness
19 DHAI-0292QSZZ AF C TC harness
20 NBLTT0039QSZZ AE B Belt 308
21 LFRM-0002QSZ1 AV D Middle frame
22 JKNBZ0001QSZZ AE C Roller rotation knob
23 DHAI-0287QSZZ AF C PPD2 interface harness
24 DHAI-0274QSZZ AG C HL harness 1
25 PGIDM0009QSZ2 AG C Harness guide
26 LPINS0301FCZZ AD C DV guide pin
27 DHAI-0271QSZZ AP C DSV harness
28 LX-BZ3006SC0S AA C Screw(3×6)
29 XBBS730P08000 AA C Screw(3×8)
30 XEBS740P12000 AA C Screw(4×12)
31 LPLTM0133QSZ1 AE C DUP motor sink
32 PSPAZ0017QSZZ AK C DUP spacer
33 XEBS730P10000 AC C Screw(3×10)
34 XHBS730P06000 AC C Screw(3×6)
35 RMOTP0012QSZZ AW B DUP transport motor
36 PSHEZ0156QSZ1 AE C Harness protection sheet
37 NBLTT0004QSZ1 AF B Belt
38 PSHEZ0155QSZ1 AD C Sheet
39 PMLT-0067QSZZ AC C Cushion
PRP02720
27
15
26
37
34
32
31
35
34
36
34
33
1
2
3
4
7
8
6
10
11
12
13
14
15
16
17
17
18
19
20
4
4
10
11
21
15
9
24
23
25
10
10
10
10
10
29
28
29
30
30
30
30
30
39
38
22
F
Middle frame
