– 9 –

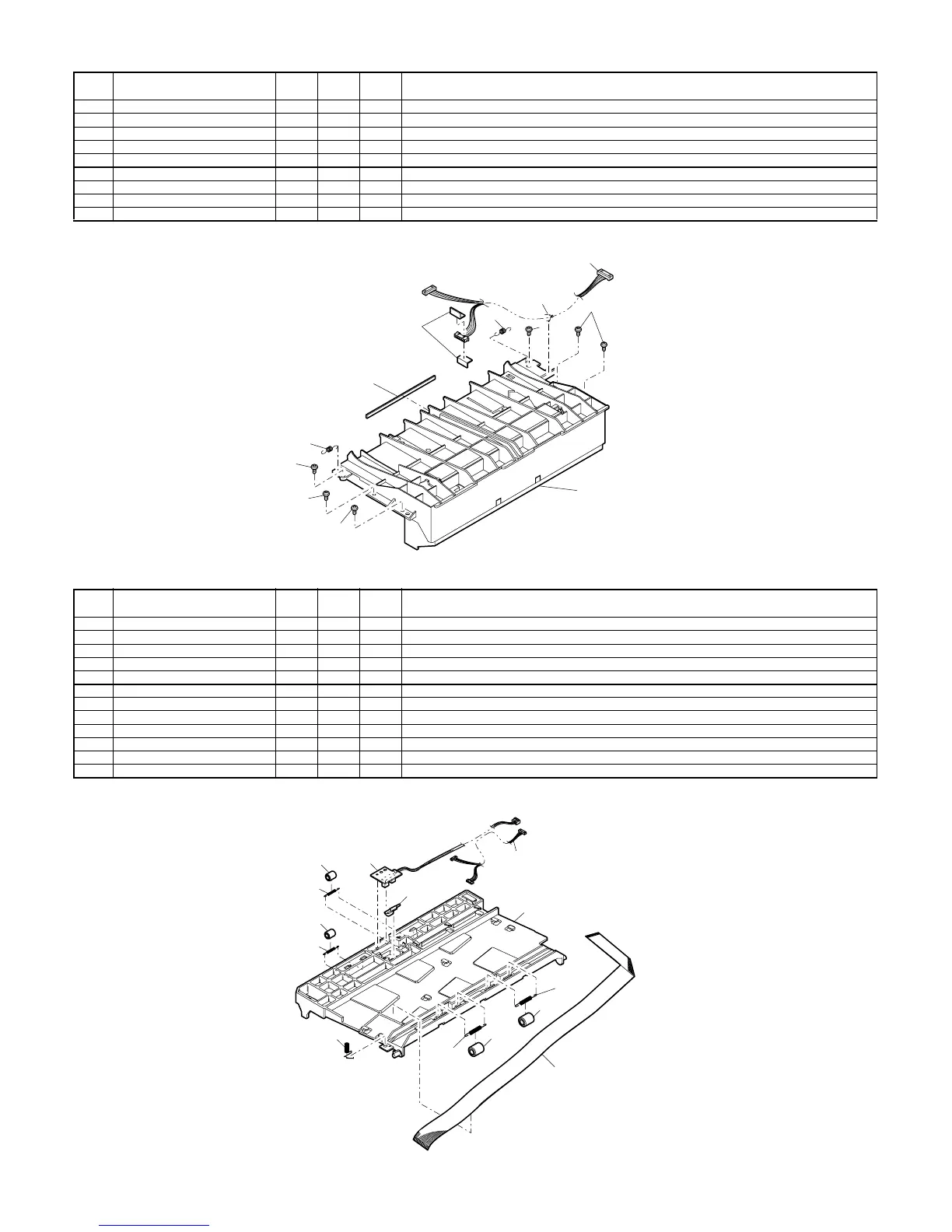

8
LSU unit
8
LSU unit
9
Delivery paper guide unit
9
Delivery paper guide unit
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
1 XEBS730P12000 AC C Screw(3×12)
2 DHAI-0282QSZ1 AG C LSU harness
3 LBNDJ0013FCZ1 AE C Wire band
4 DUNTK0013QS13 BS E LSU(A4600D)
5 MSPRT0019QSZ1 AB C Delivery paper guide spring
6 PSHEZ0350QSZZ AB C LSU protect sheet A
7 PSHEZ0351QSZZ AB C LSU protect sheet B
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
1 NROLP0046QSZZ AC C Delivery roller upper
2 MSPRT0020QSZ1 AB C Delivery roller spring
4 CPWBF0147QSE6 AL E POD sensor PWB
5 MLEVP0005QSZ2 AC C Delivery actuator
6 PGIDM0006QSZ3 AM C Delivery paper guide
7 MSPRC0021QSZZ AB C Delivery transport roller spring
8 NROLP1122FCZZ AF C PS upper roller
9 MSPRD0281QSZZ AD C Delivery earth spring
10 DHAI-0285QSZZ AK C OP-MCU harness
14 DHAI-0282QSZ1 AG C LSU harness
PRP02718
6
7
2
3
4
5
1
1
1
1
1
5
PRP02719
1
2
1
5
4
6
9
7
7
8
8
10
2
14
