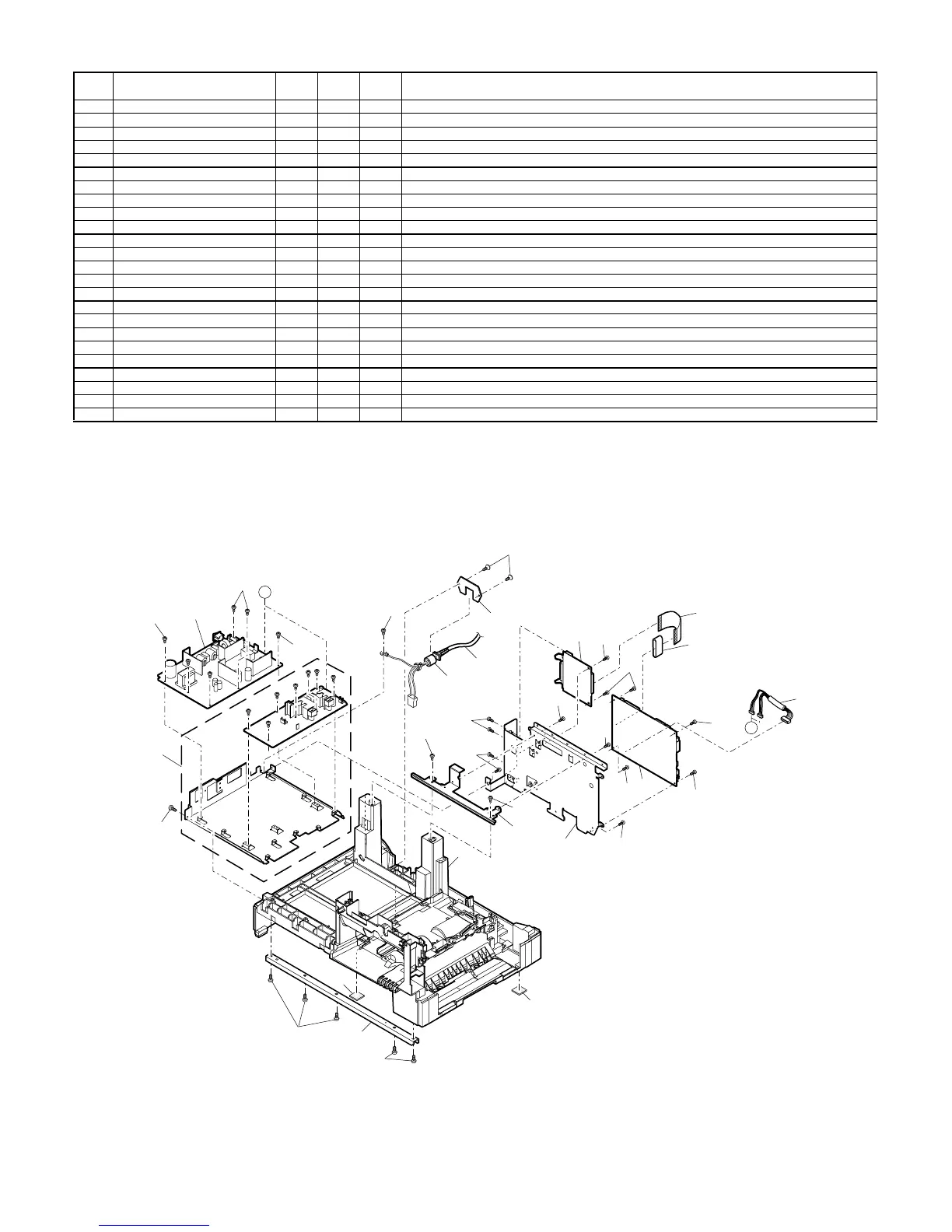

Sharp AL-1642CS - H Base Plate Unit

– 13 –
H
Base plate unit 2
H
Base plate unit 2
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
1 LHLDZ0092QSZZ AP C PWB holder JAG
3 XHBS730P06000 AC C Screw(3×6)
4 CPWBX0121QS49 BY E MCU PWB
5 CPWBF0114QSF1 BA E IF PWB
! 6 RDENC0007QSZZ BG E High voltage PWB
7 DHAI-0283QSZZ AD C MCU-I/F harness
11 XEBS730P10000 AC C Screw(3×10)
! 13 RDENC0006QS12 BN E DC power supply PWB
14 XBBS730P06000 AC C Screw(3×6)
15 XEBS740P12000 AA C Screw(4×12)
17 GDAI-0001QSJ2 BE D Base plate
18 GLEGG0064FCZZ AC C Rubber foot
21 LPLTM0020QSZZ AL C Base plate reinforce plate F
24 LHLDZ0096QSZZ AN C AC inlet holder
25 XBPSN40P06K00 AA C Screw(4×6K)
! 26 QACCD761AQCZZ BE B AC cord
27 RCORF0021QSZZ AK C Core
30 LFRM-0062QSZZ AG C Connector frame
31 RCORF0026QSZZ AE C Ferrite core
40 DHAI-0294QSZZ AK C Center frame harness
PRP02722
40
3
A
A
6
25
24
14
14
14
26
27
15
15
30
31
1
3
4
3
3
3
3
13
11
11
17
18
18
15
15
21
3
3
5
7
3
3
