Sharp AL-1642CS - R 2 ND Paper Feeding Unit

– 22 –
R

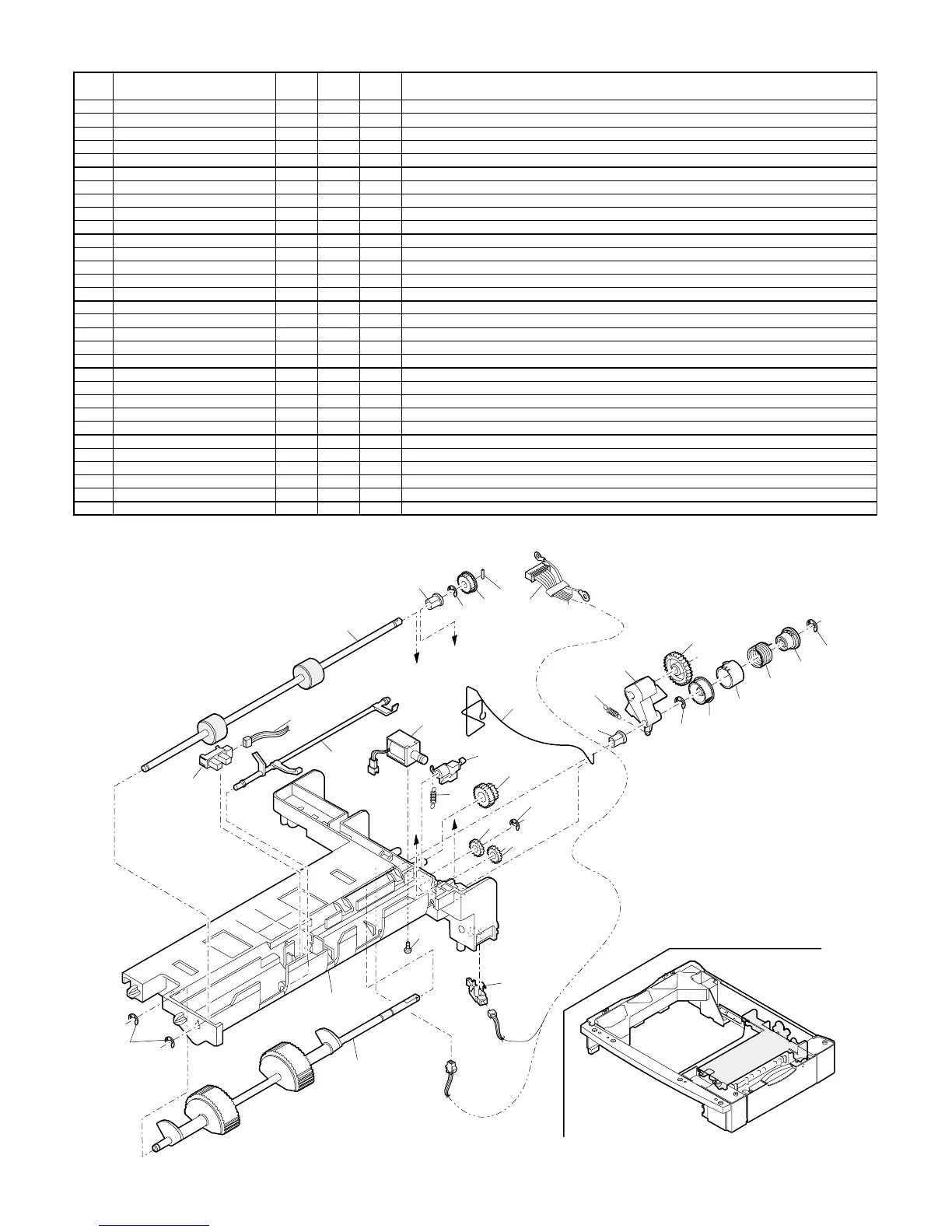

2ND paper feeding unit
R
2ND paper feeding unit
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
1 NROLP0019QSZ1 AP B Transport roller
2 NBRGC0016QSZZ AD C Bearing(B-F5-13)
3 XRESP40-06000 AA C E-ring(E4)
5 NGERH0992FCZZ AB C Gear(20T)
6 XPSSP20-07000 AA C Spring pin(φ2-7)
7 LBOSZ1031FCZZ AC C Clutch boss
8 MSPRC0161QSZZ AF C Clutch spring
9 PPIPP0007QSZZ AD C Clutch sleeve
10 NGERH1132FCZZ AH C Clutch gear(29T)
11 NGERH1207FCZZ AF C 2ND joint gear(40T)
12 MARMP0229FCZZ AE C 2ND joint arm
13 MSPRC2545FCZZ AB C 2ND joint arm spring
14 DHAI-0306QSZZ AG C 2ND harness
15 VHPGP1A71A1-1 AG B Photo transistor(GP1A71A1)
16 MLEVP0033QSZZ AF C PPDI actuator
17 MSPRD0058QSZZ AG C Earth spring
18 RPLU-0010QSZZ AN B PF solenoid
19 XHBS730P06000 AC C Screw(3×6)
20 PTME-0008QSZZ AD C PF clutch pawl
21 MSPRC2546FCZZ AB C 2ND clutch pawl spring
22 NGERH0041QSZZ AF C Gear(18/26T)
23 NGERH0990FCZZ AB C Gear(16T)
24 QSW-B0017QSZZ AF B Tray detect switch
25 CROLP0015QS02 AT B Paper feeding roller
26 LFRM-0009QSZ2 AQ D Paper feeding frame
(Unit)
901 CFRM-0009RS54 BF E 2ND paper feeding unit
PRP02732
1
2
3
5
6
7
8
9
10
11
12
13
16
17
18
19
20
21
22
23
24
25
26
3
3
2
14
3
14
23
3
15
