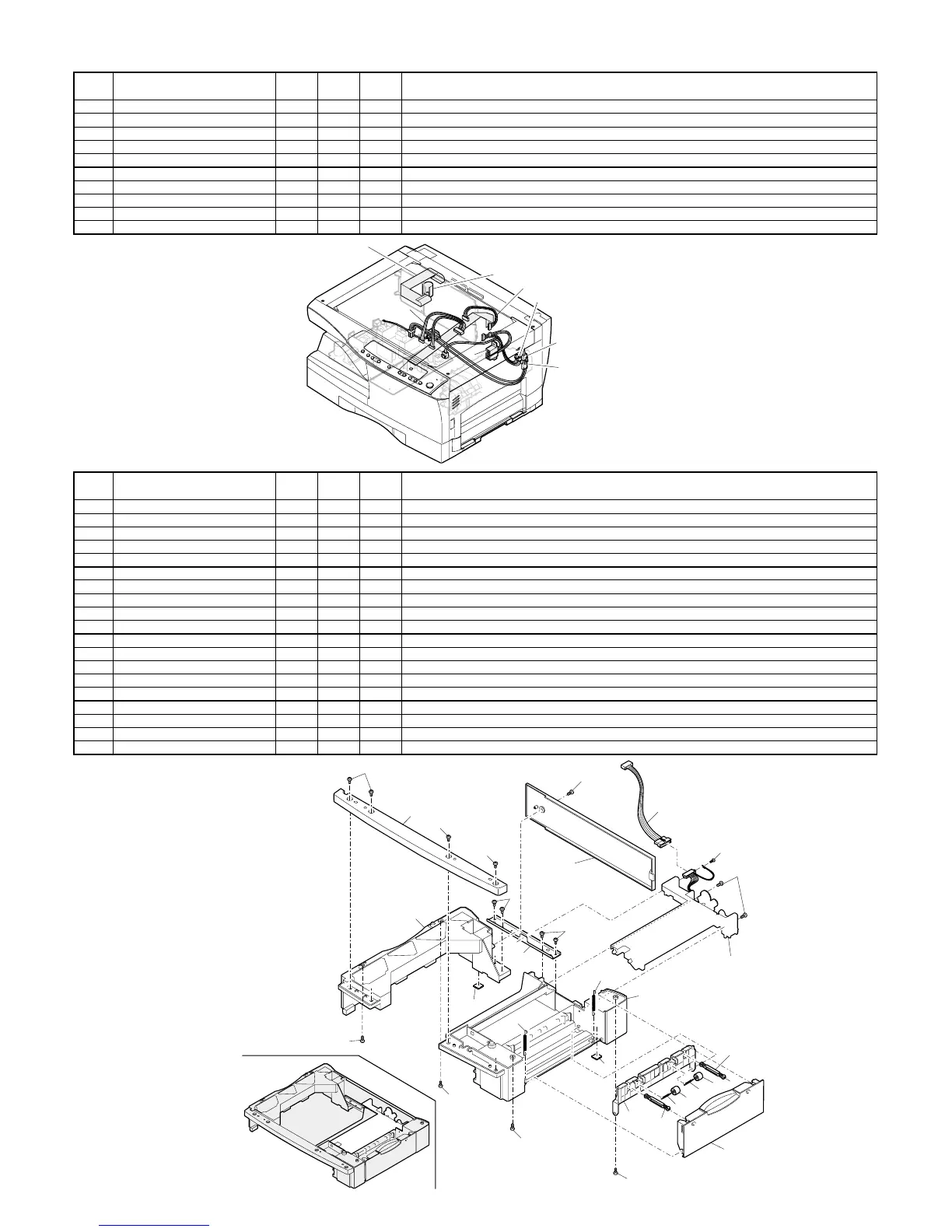

Sharp AL-1642CS - P Harness; Q 2 ND Frame Unit

– 21 –
P
Harness
P
Harness
Q
2ND frame unit
Q
2ND frame unit
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
1 DHAI-0283QSZZ AD C MCU-I/F harness
2 DHAI-0268QSZ3 AG C CCD-MCU harness
3 DHAI-0294QSZZ AK C Center frame harness
4 DHAI-0285QSZZ AK C OP-MCU harness
5 DHAI-0296QSZZ AK C Main motor harness
7 DHAI-0287QSZZ AF C PPD2 interface harness
8 DHAI-0274QSZZ AG C HL harness 1
9 DHAI-0271QSZZ AP C DSV harness
10 DHAI-0278QSZ1 AK C HL harness 2
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
1 GCOVA0005QSJZ AL D Front cover
2 XEBS740P12000 AA C Screw(4×12)
3 GCOVA0006QSJZ AN D Rear cover
4 PGIDM0016QSJ1 AY C Guide L
5 XEBS740P12000 AA C Screw(4×12)
6 LPLTM0036QSZZ AF C 2ND joint plate R
7 GLEGG0064FCZZ AC C Rubber foot
8 PGIDM0015QSJ1 AY C Guide R
9 MSPRC2544FCZZ AC C 2ND transport cover spring
10 GCOVA0007QSZZ AK D Transport cover
11 NROLP1060FCZZ AF C U-turn roller
12 MSPRT0112QSZ1 AC C Transport collar spring
13 MARMP0012QSZZ AD C 2ND door arm
14 GCOVA0008QSJZ AK D Right cover
15 XHBS740P08000 AA C Screw(4×8)
16 XEBS740P16000 AB C Screw(3×16)
17 CFRM-0009RS54 BF E 2ND paper feeding unit
18 DHAI-0306QSZZ AG C 2ND harness
PRP02730
3
4
2
5
7
8
9
10
1
1
2
3
4
5
5
7
8
9
10
11
12
13
14
15
2
2
2
9
7
13
12
11
5
6
16
16
16
16
PRP02731
17
18
