AR-M207 M165 M162 DISASSEMBLY AND ASSEMBLY 10-8

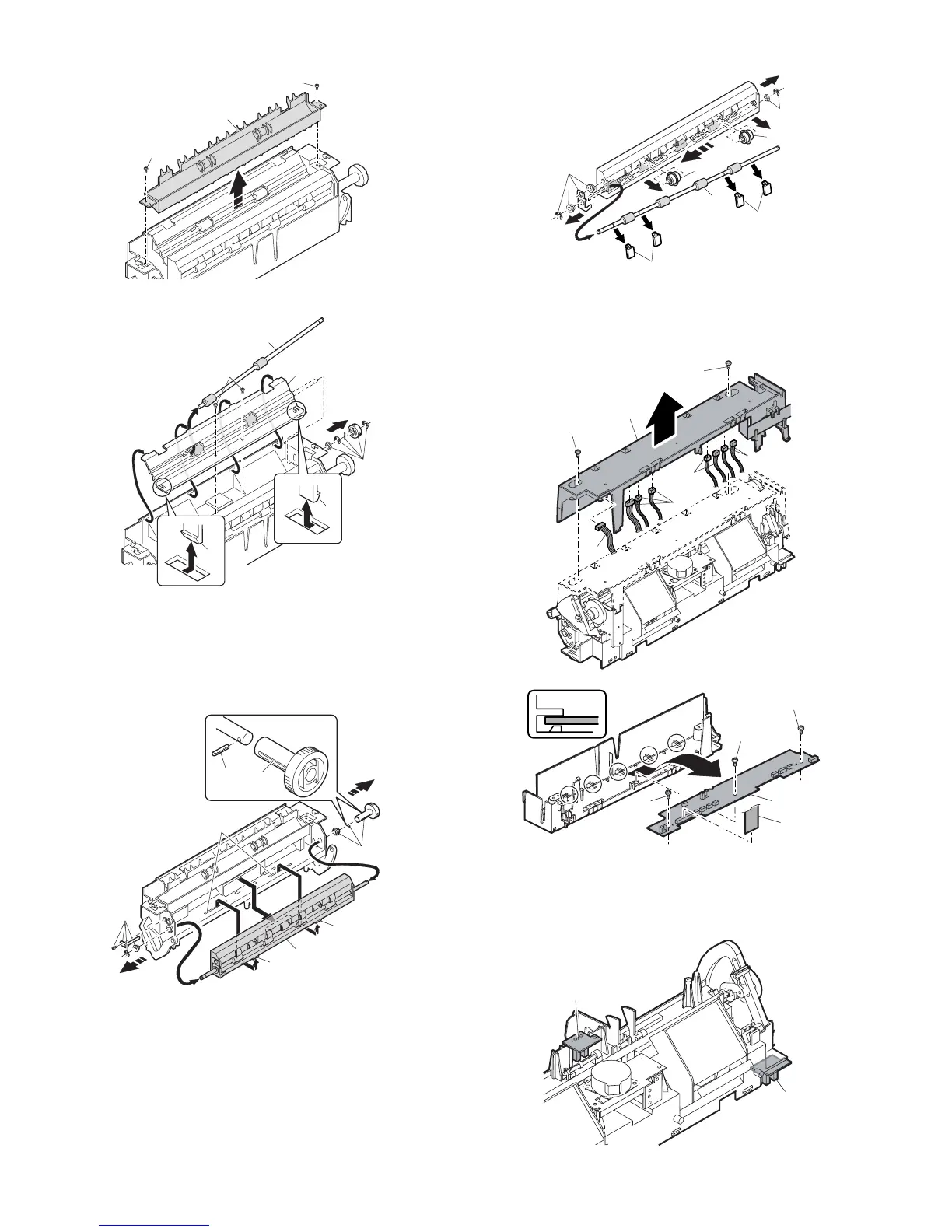

D. Transport roller
E. Paper exit roller
Assembly: Insert the spring pin so that the waveform (A) of the spring
pin faces in the longitudinal direction of the paper exit drive
gear long hole (B).<R>Be sure to insert two ribs (C) into the
groove (D).
F. Paper exit interface PWB
(when the job separator is installed)
G. Paper exit sensor/duplex sensor
(A) Exit sensor
(B) Duplex sensor
(1)
(2)
(1)
(1)
(2)
(3)
(4)
(5)
(3)
(1)
(1)
(2)
(A)
(B)
(D)
(C)
(C)
(1)
(1)
(2)
(2)
(3)
(4)
(4)
(3)
(3)
(3)
(4)
(1)
(2)
(1)
(1)
(2)
(1)
(3)
(1)
(A)
(B)
