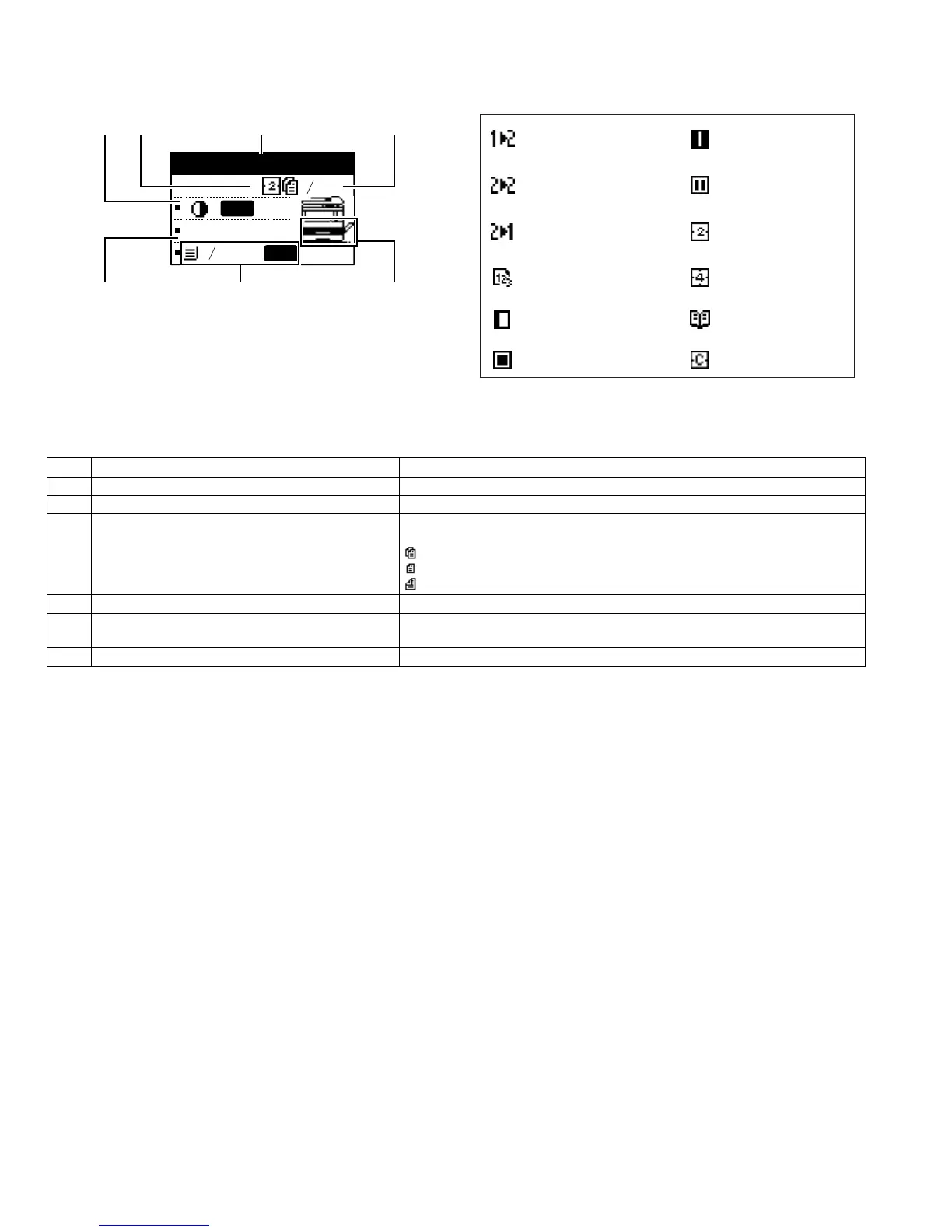

4. Display(base screen)
1 Exposure display Indicates the selected exposure mode.
2 Special function icon display Icons of enabled special functions will appear.
3 Message display Messages are displayed regarding machine status and operation.
4 Original size display The size of the placed original and the icon of the original scanning mode will
appear.
: One-sided scanning in the SPF.
: Scanning on the document glass
: Two-sided scanning in the RSPF.
5 Copy ratio display Displays the copy ratio for reduction or enlargement.
6 Paper size display Displays the selected paper size. When "AUTO" appears, the most suitable size of
paper is automatically selected.
7 Paper tray display The selected paper tray is highlighted.
Example: Copy mode
* The display shown is the AR-M207 (when the optional
RSPF is installed) display.
Icons appearing in the special function icon display
* These only appear when the dual function board is
installed.
Ready to copy.
8 x11
100%
8 x11
AUTO
AUTO
23 4
5
1
76
1
2
1
2
1-sided to 2-sided
copy
Center erase
copy*
2-sided to 2-sided
copy
Edge + Center
erase*
2-sided to 1-sided
copy
2 in 1 copy*
Sort function* 4 in 1 copy*
Margin shift copy* Dual page copy
Erase copy* Card shot*
