AR-M207 M165 M162 DISASSEMBLY AND ASSEMBLY 10-10

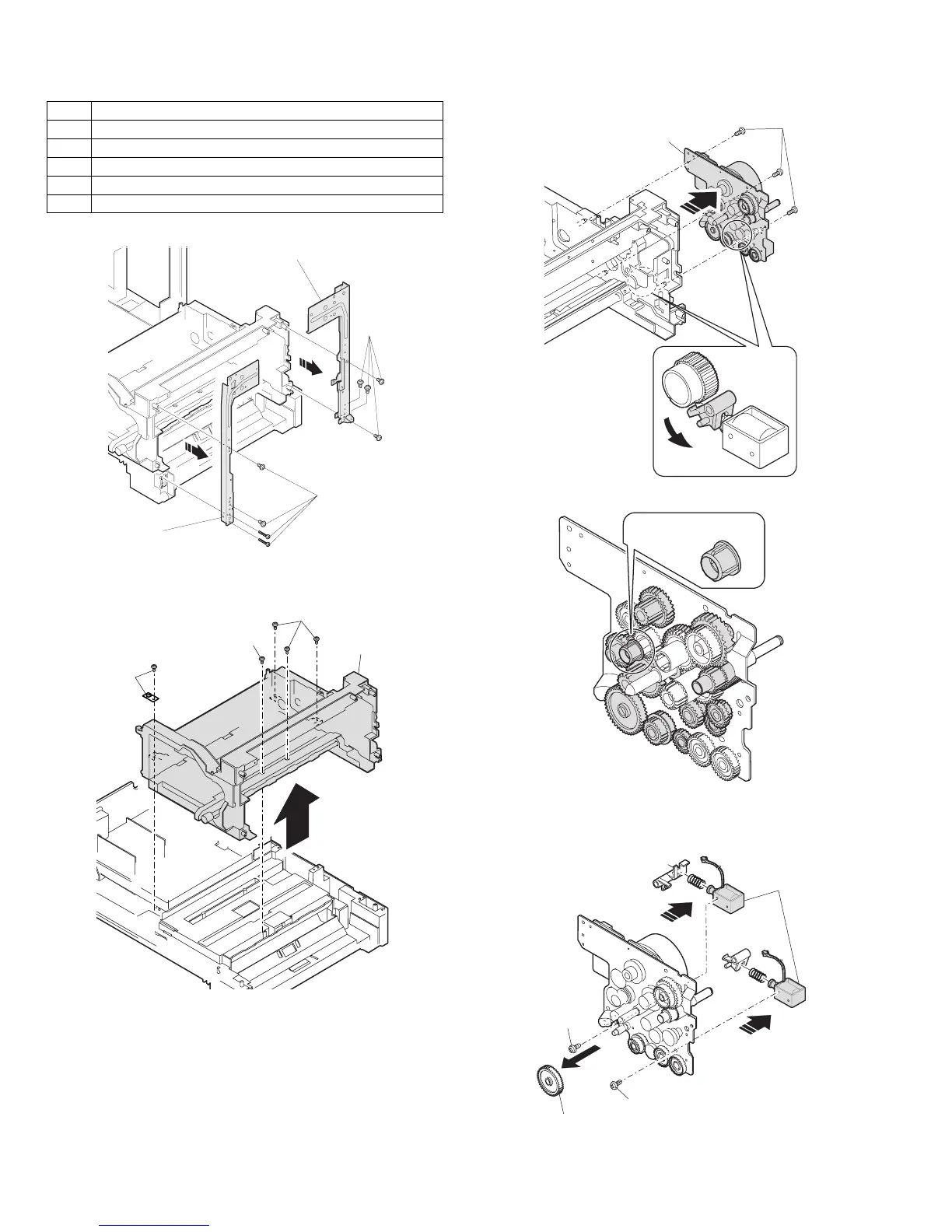

8. Tray paper feed section/Paper transport
section
A. Middle frame unit
Assembly: Do not miss the door lock pawl.
B. Drive unit
Assembly: Move down the clutch pawl as shown below, and avoid the
clutch and install.
C. Solenoid
(paper feed solenoid, resist roller solenoid)
No. Content
A Middle frame unit
B Drive unit
C Solenoid (paper feed solenoid,, resist roller solenoid)
D Resist roller clutch / Resist roller
E Paper feed clutch/Paper feed roller (Semi-circular roller)
(1)
(1)
(2)
(2)
(2)
(1)
(1)
(1)
(1)
(2)
Grease G-484
Molykote PG 75
(1)
(2)
(2)
(3)
