AR-M207 M165 M162 EXTERNAL VIEWS AND INTERNAL STRUCTURES 4-1
[4] EXTERNAL VIEWS AND INTERNAL STRUCTURES

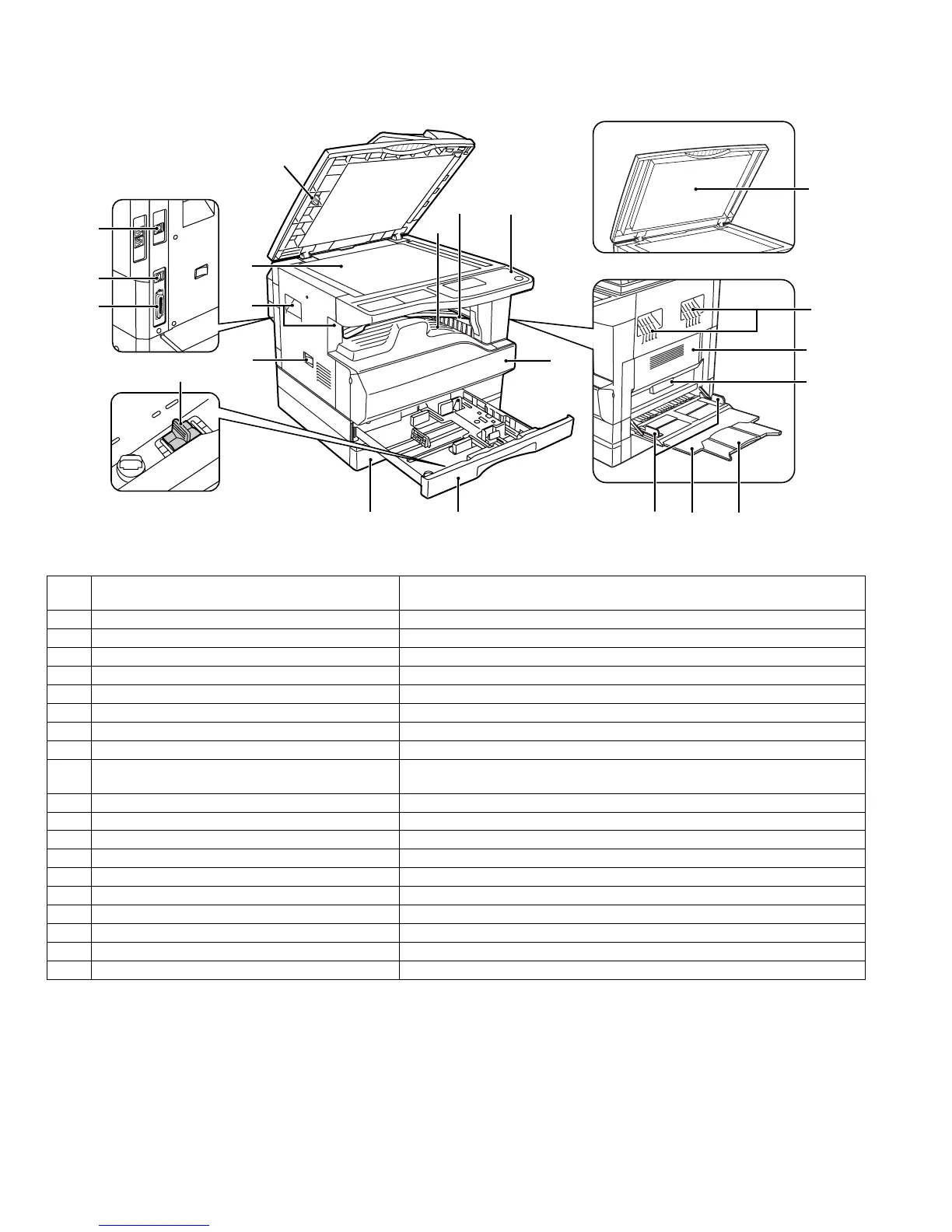

1. Appearance
1 USB 2.0 port (USB-2)
(when the dual function board is installed)
Connect to your computer to this port to use the printer and scanner functions.
2 USB 1.1 port (USB-1) Connect to your computer to this port to use the printer and scanner functions.
3 Parallel port Connect to your computer to this port to use the printer function.
4 Charger cleaner Use to clean the transfer charger.
5 Glass cleaner Use to clean the original scanning glass.
6 Document glass Place an original that you wish to scan face down here.
7 Handles Use to move the machine.
8 Power switch Press to turn the machine power on and off.
9 Center tray Copies and printed pages are output to this tray.
10 Upper tray (when the job separator tray kit is installed) Received faxes (when the fax option is installed) and print jobs are delivered to this
tray.
11 Operation panel Contains operation keys and indicator lights.
12 Front cover Open to remove paper misfeeds or replace the toner cartridge.
13 Tray 1 Tray 1 can hold approximately 250 sheets of copy paper (64 g/m²).
14 Tray 2 Tray 2 can hold approximately 250 sheets of copy paper (64 g/m²).
15 Document cover (when installed) Open to make a copy from the document glass.
16 Side cover Open to remove misfed paper.
17 Side cover handle Pull to open the side cover.
18 Bypass tray guides Adjust to the width of the paper when using the bypass tray.
19 Bypass tray Special paper (heavy paper or transparency film) can be fed from the bypass tray.
20 Bypass tray extension Pull out when feeding large paper such as 11" x 17" and 8-1/2" x 14" (A3 and B4).
11
12
10
9
4
14 13
15
7
16
17
18 19 20
1
2
3
5
6
7
8
