AR-M207 M165 M162 DISASSEMBLY AND ASSEMBLY 10-2

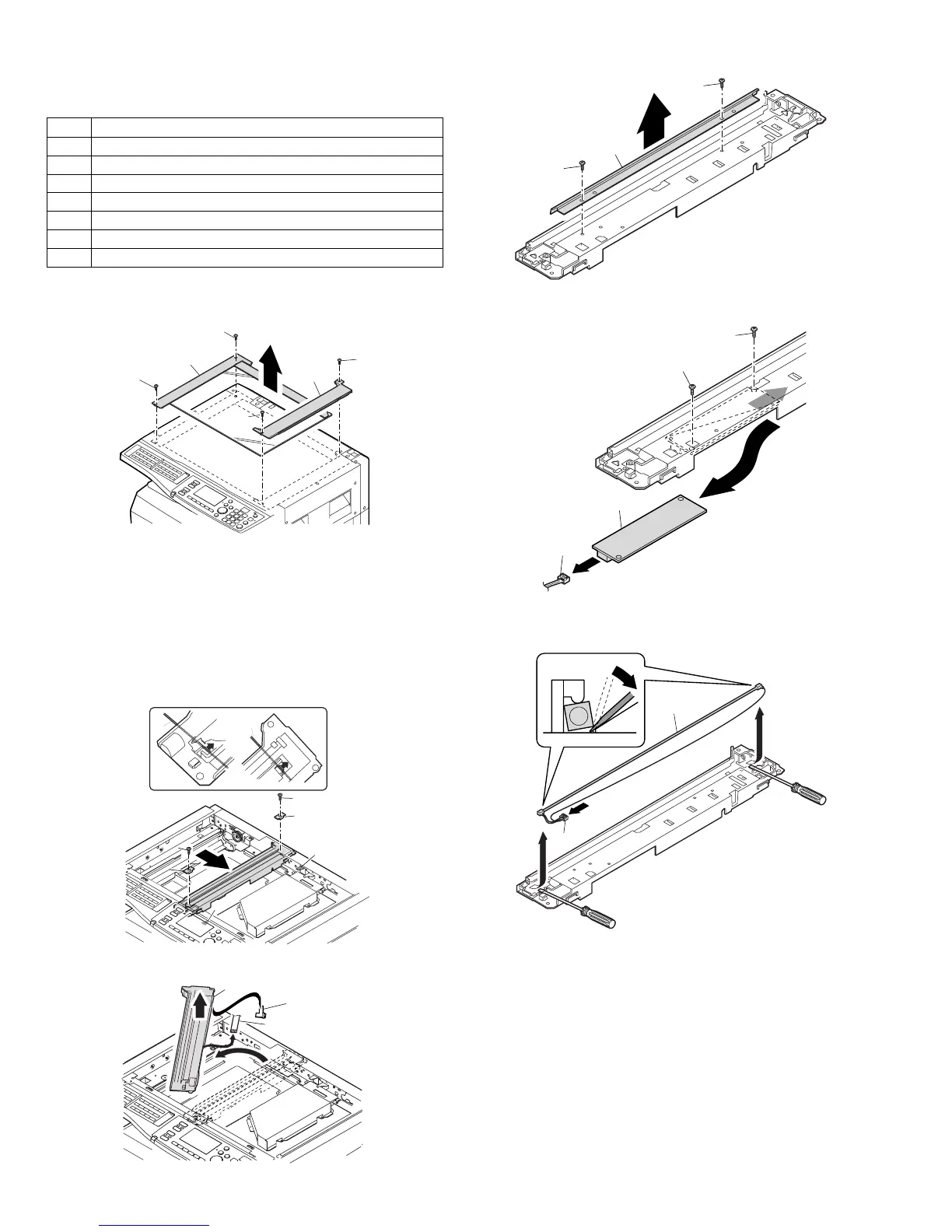

2. Optical section
Note: When disassembling or assembling the optical unit, be careful not
to touch the mirror and the reflector.
A. Table glass
B. Copy lamp unit
Disassembly: Be sure to put No. 2/3 mirror unit to the positioning plate
(A).
Assembly: Put the notched surface of wire holder (3) downward,
tighten temporarily, and install.
Adjustment: Main scanning direction distortion balance adjustment
C. Inverter PWB for copy lamp
D. Copy lamp
No. Content
A Table glass
B Copy lamp unit
C Inverter PWB for copy lamp
DCopy lamp
E Lens unit
FWire
G Document detection
(1)
(2)
(1)
(3)
(4)
(3)
(A)
(A)
(2)
(2)
(2)
(2)
(3)
(3)
(3)
(3)
(4)
(4)
(1)
(2)
(3)
(1)
(1)
(2)
(1)
(1)
(2)
(3)
(1)
(2)
