Sharp AR-M207 - Resist Roller Clutch;Resist Roller; Paper Feed Clutch;Paper Feed Roller; Manual Transport Roller;Manual Paper Feed Roller; Manual Multi Paper Feed Section

AR-M207 M165 M162 DISASSEMBLY AND ASSEMBLY 10-11

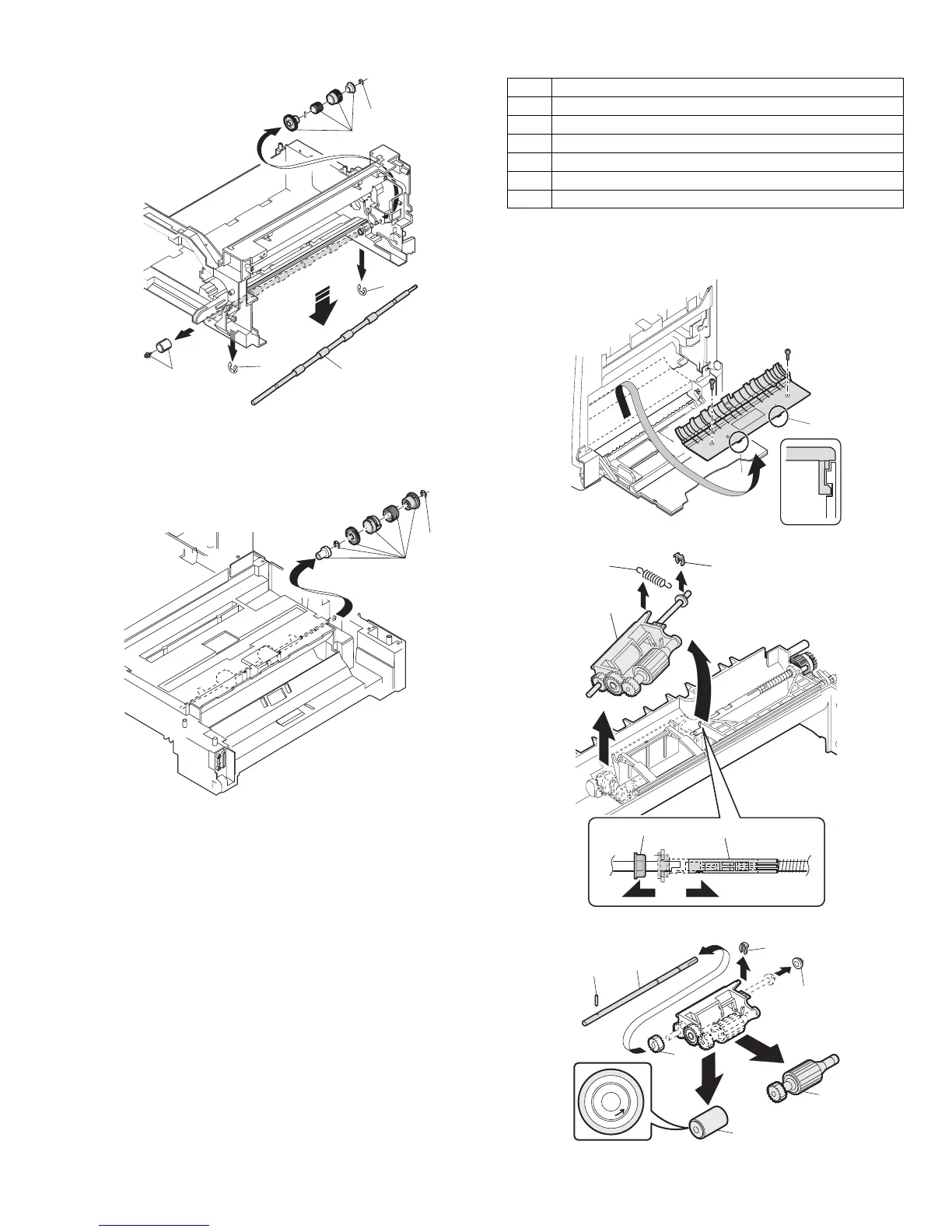

D. Resist roller clutch/Resist roller
E. Paper feed clutch/Paper feed roller
(Semi-circular roller)
9. Manual multi paper feed section
A. Manual transport roller/Manual paper feed roller
Note:Push the lever at the right edge of the multi frame cover to the right
upper side and remove it.
Installation: Be careful of the installing direction of the manual transport
roller (6)
(1)
(2)
(3)
(3)
(3)
(4)
(1)
(2)
No. Content
A Manual transport roller/Manual paper feed roller
B Manual multi paper feed
C Manual feed solenoid
D Manual transport clutch
E Pressure plate unit
F Manual paper feed clutch
A
A
A
(3)
(4)
(5)
(2)
(1)
(2)
(3)
(4)
(5)
(1)
(6)
(7)
L
O
C
K
T
O
K
