AR-M207 M165 M162 DISASSEMBLY AND ASSEMBLY 10-18

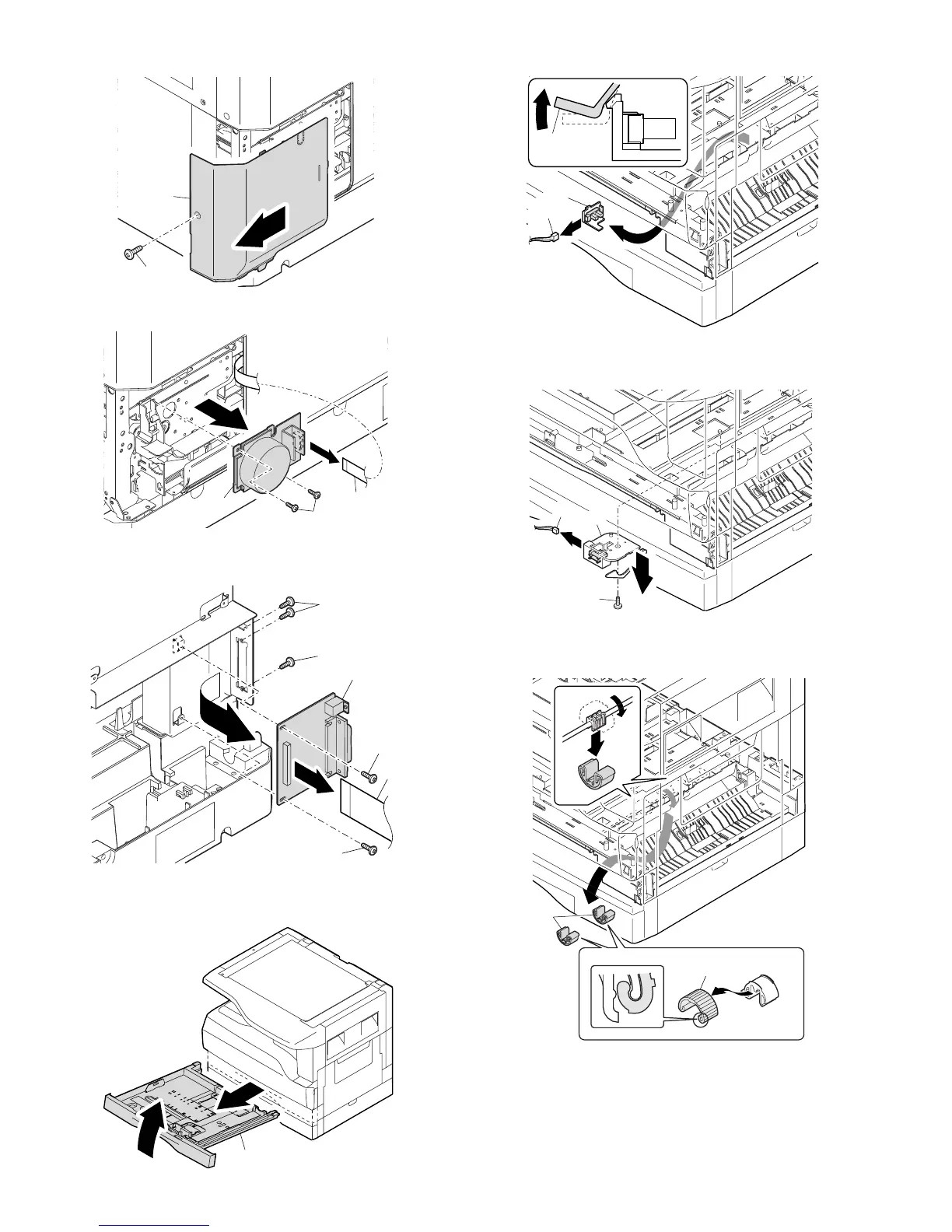

I. Main motor
J. I/F P.W.B.
K. Paper entry sensor
L. Paper empty sensor
M. Paper feed roller
* When removing the paper feed roller, operate the paper feed clutch
with SIM 6-1, and keep the paper feed roller down as shown in the
figure above for operation.
