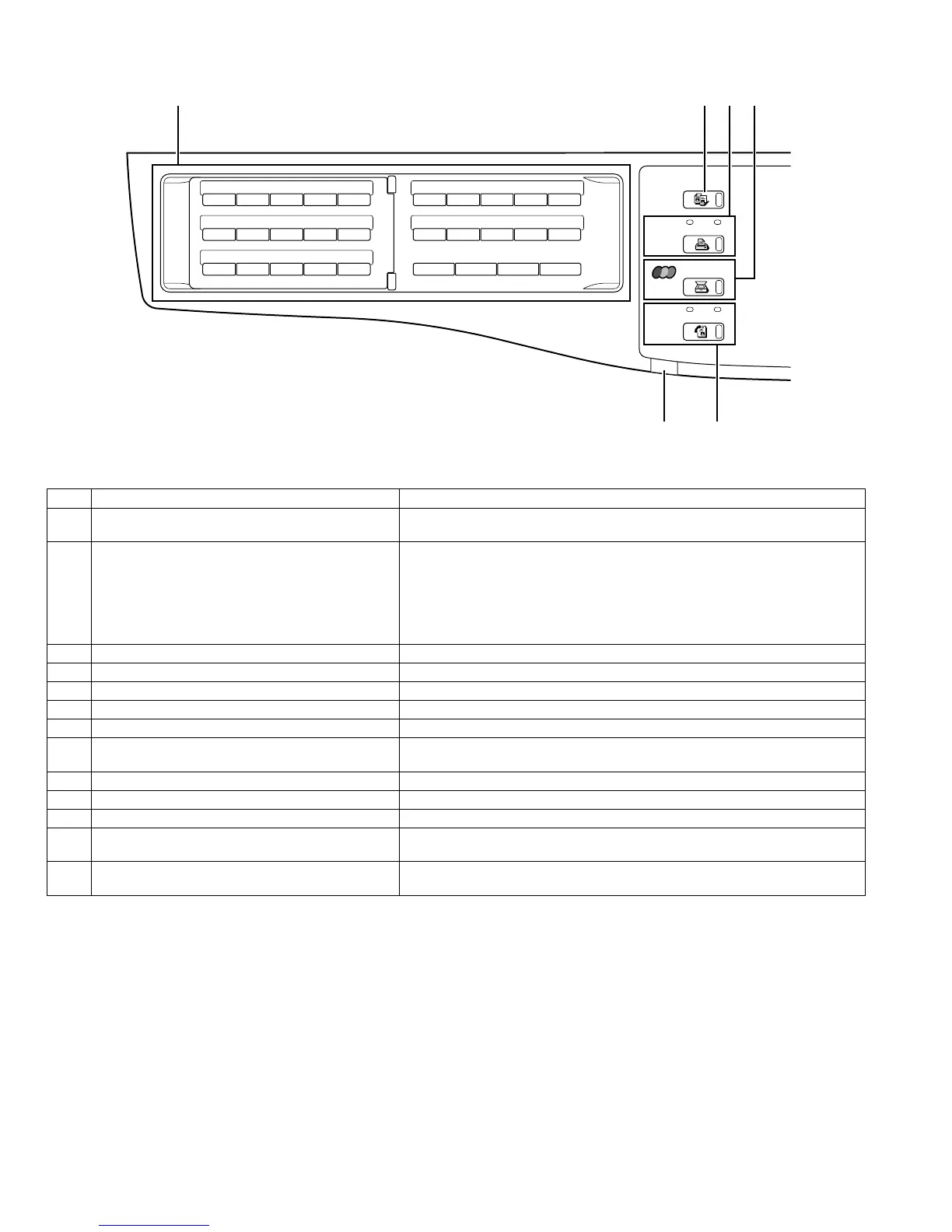

AR-M207 M165 M162 EXTERNAL VIEWS AND INTERNAL STRUCTURES 4-3
3. Operation panel
1 Keys for fax function (when the fax option is installed) These are used in fax mode.
2 [COPY] key/indicator Press to select copy mode. If pressed when "Ready to copy." appears or during
warm-up, the total number of sheets used appears while the key is pressed.
3 [PRINT] key/indicator Press to select print mode.
• ONLINE indicator
Print jobs can be received when this indicator is lit.
• DATA indicator
This lights steadily when there is a print job in memory that has not been printed,
and blinks during printing.
4 [SCAN] key/indicator Press to select scan mode.
5 Display Shows various messages. For more information see page 5-5.
6 [BACK] key Press to return the display to the previous screen.
7 [FAX STATUS] key This key is used in fax mode.
8 [OK] key Press to enter the selected setting.
9 Copy number display The selected number of copies appears. During copying, this shows the remaining
number of copies.
10 Numeric keys Use to select the number of copies.
11 [INTERRUPT] key/INTERRUPT indicator Interrupts a copy run to allow an interrupt copy job to be performed.
12 [C] key Press to clear the set number of copies or stop a copy run.
13 Information lamp
(when the fax option is installed)
Information lamp blinks, when facsimile is received, or when the paper remains in
the tray.
14 [FAX] key/indicator (when the fax option is installed)
LINE indicator, DATA indicator
This key is used in fax mode.
ON LINE
DATA
LINE
DATA
SCAN
FAX
PRINT
26 27 28 29 30
31 32 33 34 35
41 42 43 44 45
46 47 48 49 50
36 37 38 39 40
ABCDE
FGH I J
KLMNO
PQR TS
U V W XYZ SP
SPEAKER
SHIFT
REDIAL/PAUSE SPEED
SYMBOL
COMM. SETTING
SPACE/
COPY
13
2
1
34
14
