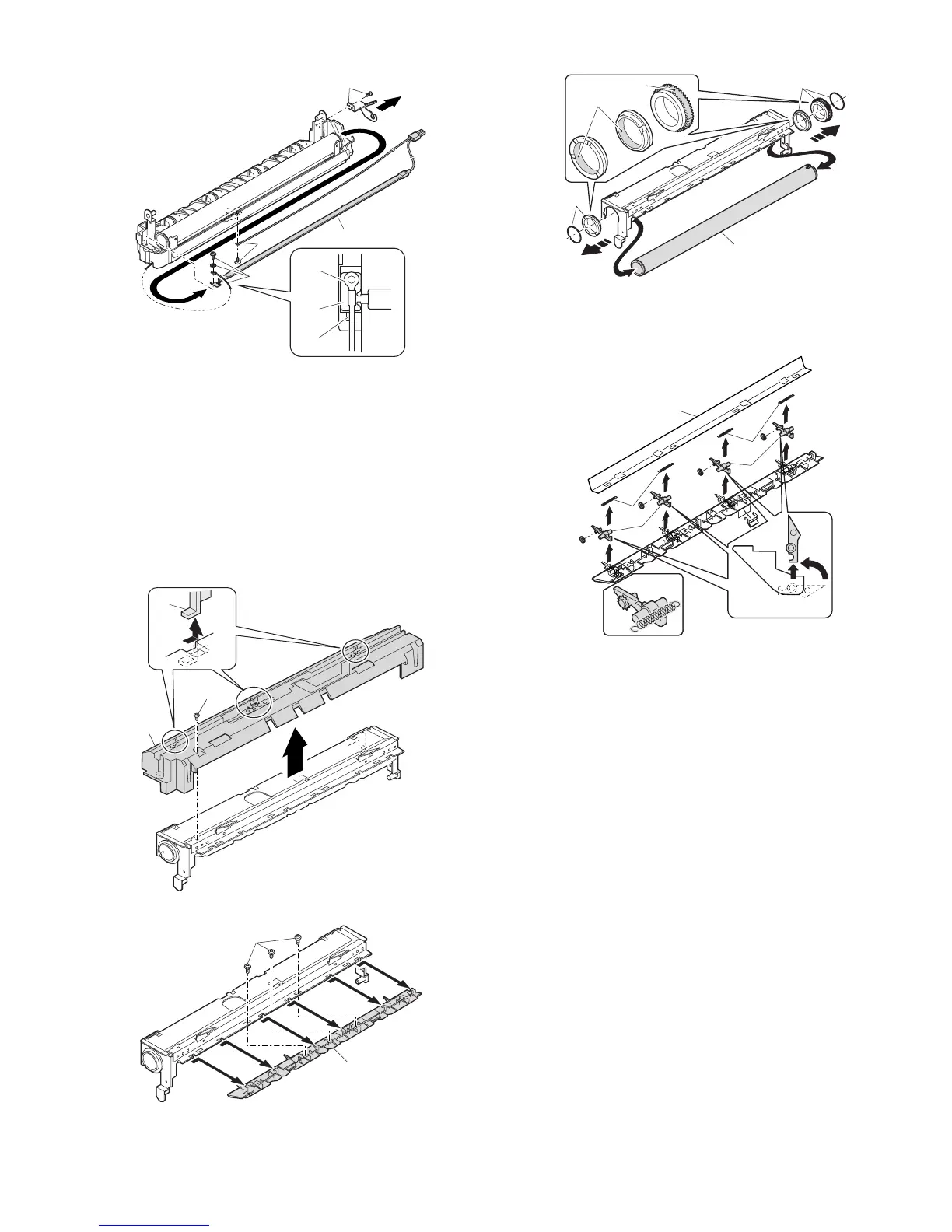

Assembly: Put the fusing harness (A) on the heater lamp (B) as shown
in the figure and fix them together.<R>Place the fusing
harness inside the rib (C).
E. Upper heat roller
Disassembly: There are three pawls on the fusing cover. Remove the
screws and slide the fusing cover to the right to remove.
The heater lamp is fixed on the fusing cover with a
screw. Slide the fusing cover to the front and remove the
screw, then remove the heater lamp.
F. Separation pawl
(A)
(B)
(C)
(1)
(3)
(4)
(2)
(2)
(1)
(3)
(1)
(2)
(1)
(1)
(2)
Grease(JFE552)
Floil(GU2)
(2)
(2)
(3)
(3)
(1)
