1-42
BEFORE USING THE MACHINE

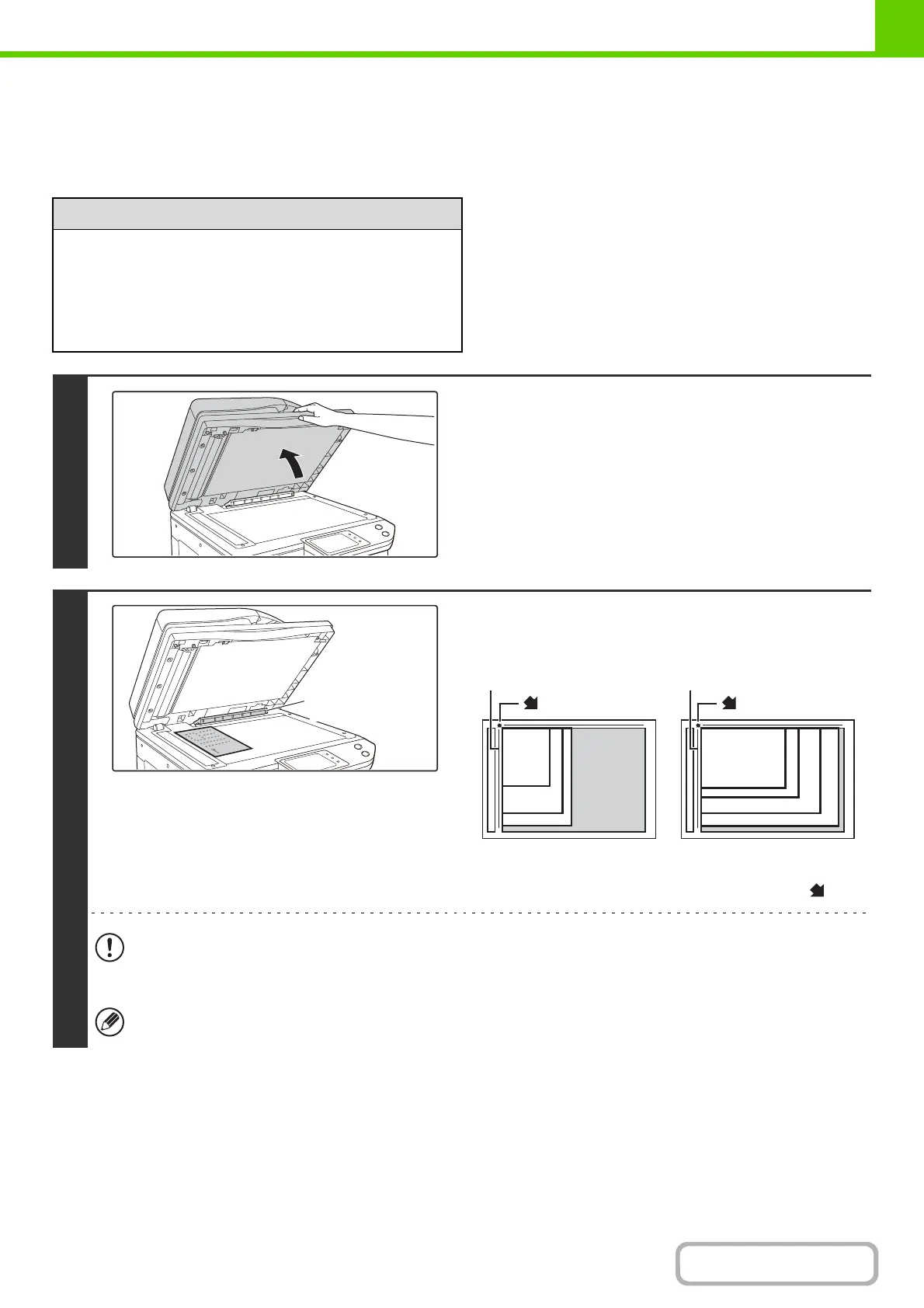

PLACING THE ORIGINAL ON THE DOCUMENT GLASS
This section explains how to place the original on the document glass.
Allowed original sizes
When the original is a non-standard size, see the
appropriate explanation below for the mode you are
using.
+ 2. COPIER "SPECIFYING THE ORIGINAL SIZE"
(page 2-29)
+ 4. FACSIMILE "IMAGE SETTINGS" (page 4-45)
+ 5. SCANNER / INTERNET FAX "IMAGE
SETTINGS" (page 5-53)
Maximum original size
Standard sizes
A3: 297 mm (height) x 420 mm (width)
11" (height) x 17" (width)
Non-standard sizes
297 mm (height) x 432 mm (width)
11-5/8" (height) x 17" (width)
1
Open the automatic document feeder.
2
Place the original.
Place the original face down in the far left corner of the
document glass.
The original should always be placed in the far left corner,
regardless of its size.
Align the top left corner of the original with the tip of the mark.
Do not place any objects under the original size detector.
Closing the automatic document feeder with an object underneath may damage the original size detector and prevent
correct detection of the original size.
If you are placing a small non-standard size original on the document glass, it is convenient to place a blank sheet of
A4 or B5 (8-1/2" x 11" or 5-1/2" x 8-1/2") paper on top of the original to facilitate detection of the original size.
A4R (8-1/2" x 11"R)
B5R
B4 (8-1/2" x 14")
A3 (11" x 17")
A4 (8-1/2" x 11")
A5
(5-1/2" x 8-1/2")
B5
mark
Document glass scale
Document glass scale
mark
