LC-32LB261U Sharp 32" LED TV
Back

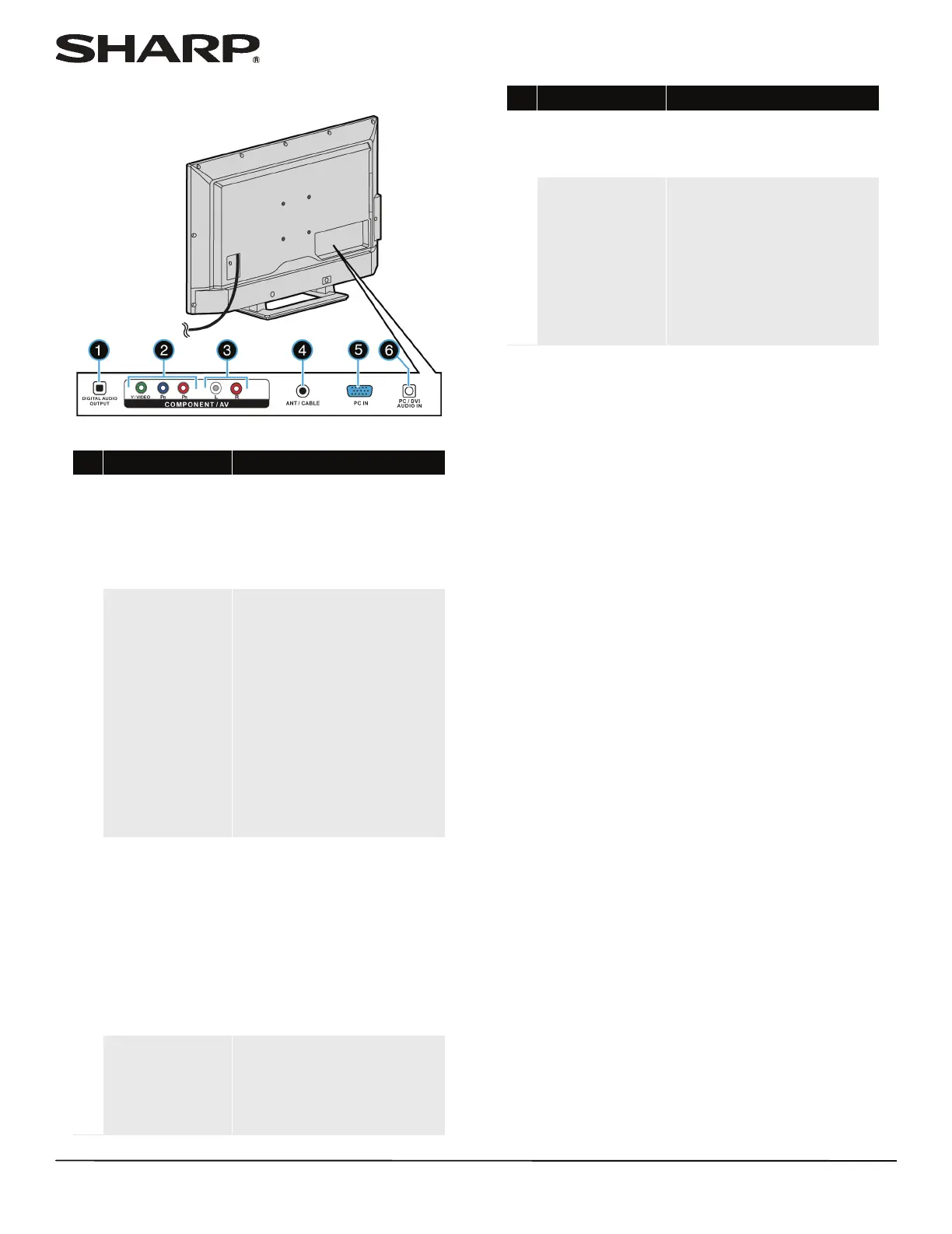

# Item Description
1
DIGITAL AUDIO
OUTPUT (optical)
Connect a digital audio
amplifier, home theater system,
or sound bar to this jack to
listen to TV audio through the
external speakers. For more
information, see “Digital audio”
on page 32.
2
Y/VIDEO, PB, PR
OR
Y/VIDEO
The Y/VIDEO jack works as one
of the three component video
jacks or as an AV jack.
Connect the video for a
component video device to
these jacks. For more
information, see “Component
video (better)” on page 15, 20,
or 25.
OR
Connect the video for an AV
device to the Y/VIDEO jack. For
more information, see “AV
(composite video) (good)” on
page 16, 21, or 26.
3
L and R (audio)
Connect the audio for a
component video device to
these jacks. For more
information, see “Component
video (better)” on page 15, 20,
or 25.
OR
Connect the audio for an AV
device to these jacks. For more
information, see “AV (composite
video) (good)” on page 16, 21,
or 26.
4
ANT/CABLE
Connect an antenna or cable TV
to this jack. For more
information, see “Coaxial
(good)” on page 17 or
“Connecting an antenna or
cable TV (no box)” on page 18.
5
PC IN
Connect the video (VGA) for a
computer to this jack. For more
information, see “VGA (most
common)” on page 29.
6
PC/DVI AUDIO IN
Connect the audio for a
computer to this jack. For more
information see “VGA (most
common)” on page 29.
OR
Connect the audio for a DVI
device to this jack. For more
information see, “DVI (same as
HDMI but requires an audio
connection)” on pages 14 or 28.
