Component video (better)
1 Make sure that your TV’s power cord is unplugged and the DVD or Blu-ray player is turned off.
2 Connect a component video cable (not provided) to the Y/VIDEO, P
B, and PR jacks on the back of your TV and to the
COMPONENT OUT jacks on the DVD or Blu-ray player.
3 Connect an audio cable (not provided) to the L and R audio jacks on the back of your TV and to the L and R AUDIO OUT
jacks on the DVD or Blu-ray player.
4 Plug your TV’s power cord into a power outlet, then turn on your TV and the DVD or Blu-ray player.
5 Press INPUT to open the INPUT SOURCE list.
6 Press
S or T to select Component, then press ENTER.
Note
Cables are often color-coded to match color-coded jacks.
Important
•The Y/VIDEO, P
B, and PR video jacks (used to connect a component
video device) share the L and R audio jacks with the Y/VIDEO jack (used
to connect an AV device). You can only connect one component video
or AV device at a time. We suggest upgrading to HDMI if your cable or
satellite box supports it.
• When you connect the audio using the L and R audio jacks, the audio
output is analog.

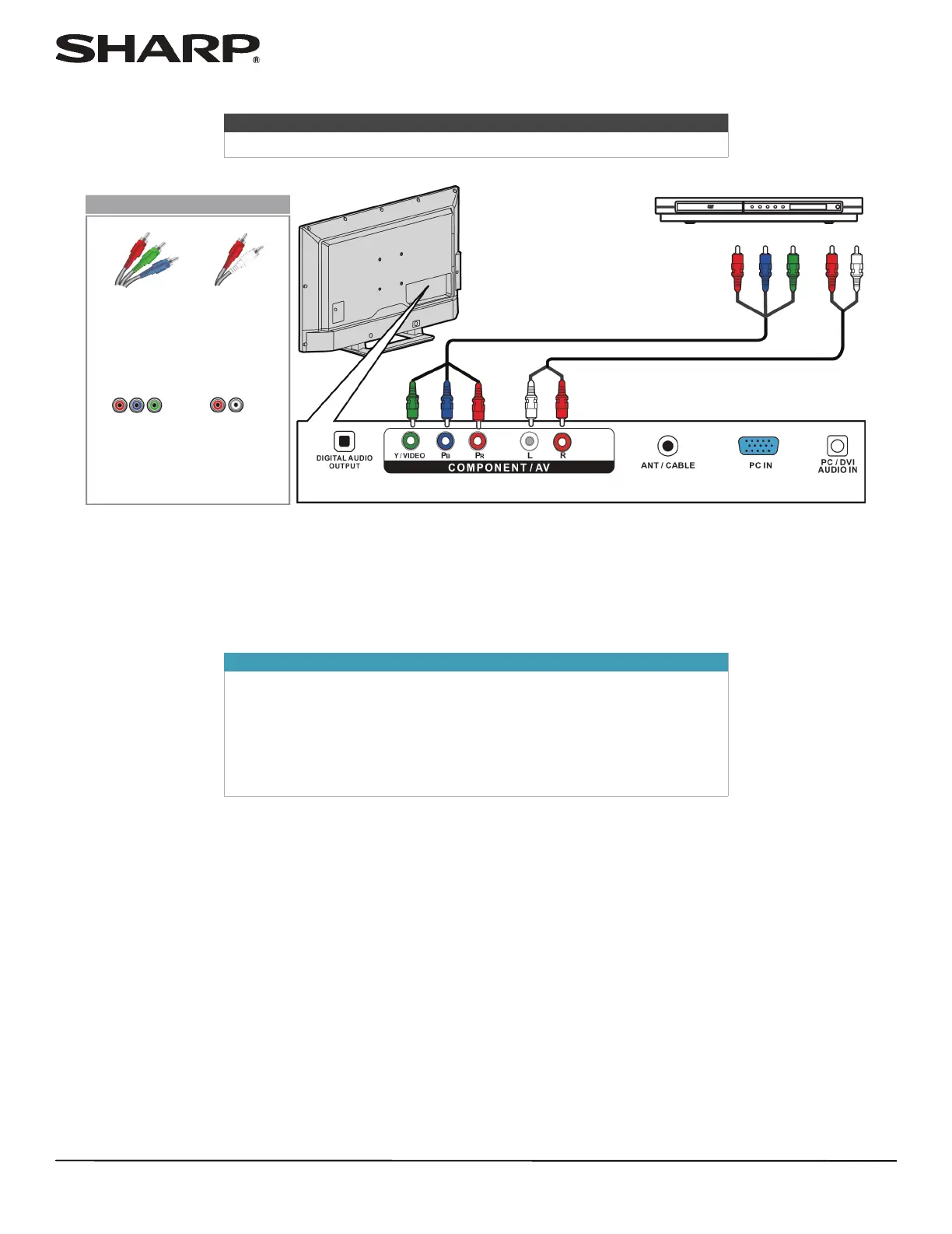

Back of TV
Audio cable
Component video cable
DVD or Blu-ray player
Component
video cable
connectors
Audio cable
connectors
Component
video jacks
Analog
audio jacks
On your TV

Sharp LC-32LB261U Specifications

General

Screen Type	led
Wall Mount	100mm x 100mm
Screen Size	31.5 inches, 32 inches
Refresh Rate	60hz
Brightness	180 candela per square meter
Speakers Output	10 watts
USB Ports	1
RF Antenna	yes
Headphones Output	yes
Digital Optical Audio Outputs	1
Component Video Inputs	1
Composite Video Inputs	1
DVI	1
3D	no
Power Consumption	81 kilowatt hours
Depth with Stand	6.5 inches
Height with Stand	18.38 inches
Width with Stand	28.63 inches
Net Weight with Stand	11.3 pounds
Depth without Stand	2.5 inches
Height without Stand	17.13 inches
Net Weight without Stand	10.6 pounds
