Sharp LC-40LX360H-BK User Manual

35

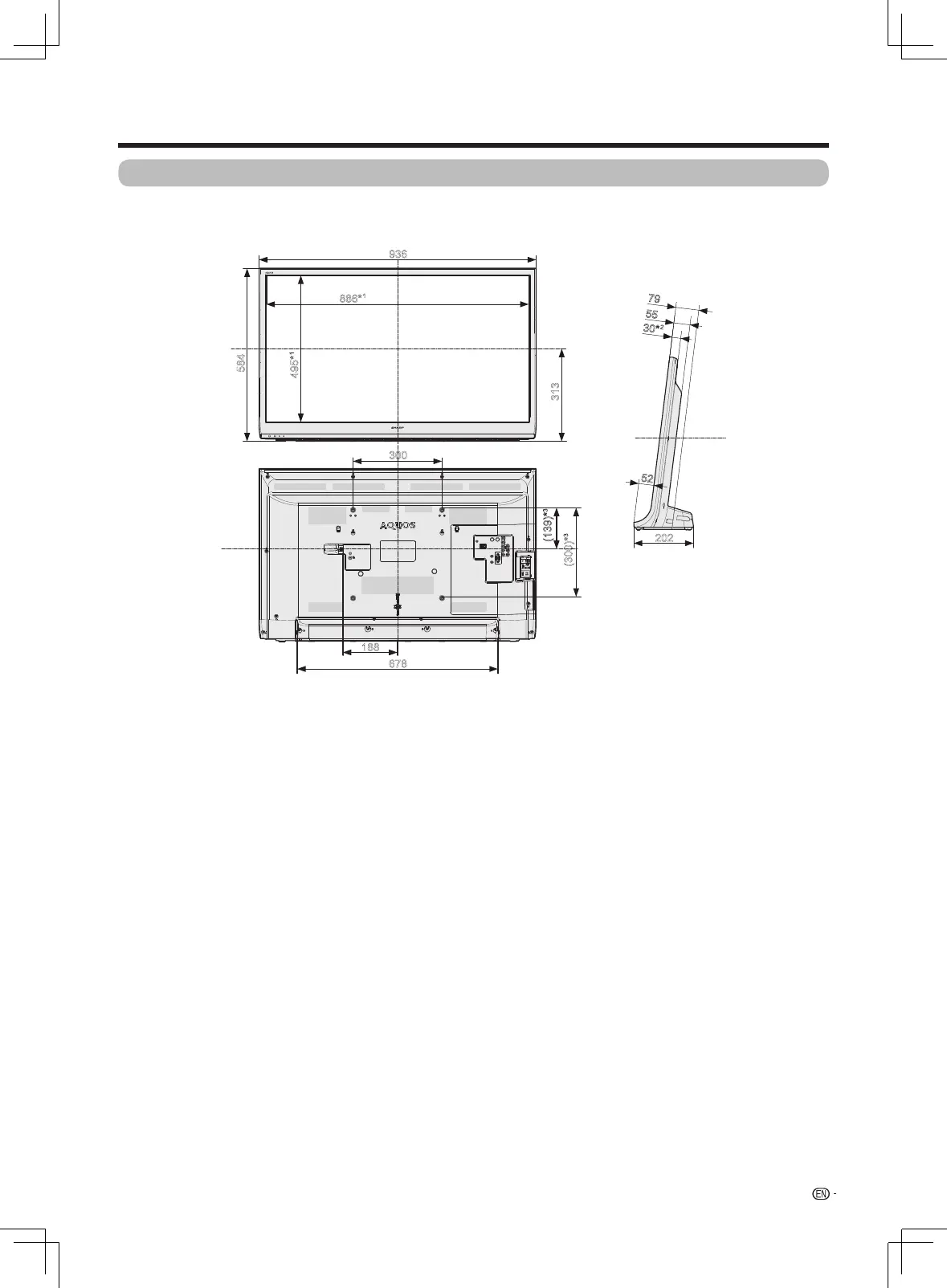

Dimensional drawings
Appendix
Unit:mm
LC-40LX360H-BK/LC-40LX360H-WH
*1 Active area
*2 Thinnest part
*3 Refer to the data in the brackets
when mounting the TV on the wall.
936
584
313
30*
55
79
202
52
678
(139)*
495*
886*
300
(300)*
188
1
1
2
3
3
LX360H_en_ID6-201400313.indd 35 2014/3/15 10:12:56

Sharp LC-40LX360H-BK Specifications

General

Brand	Sharp
Model	LC-40LX360H-BK
Category	LCD TV
Language	English
