MX-5001N EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 8

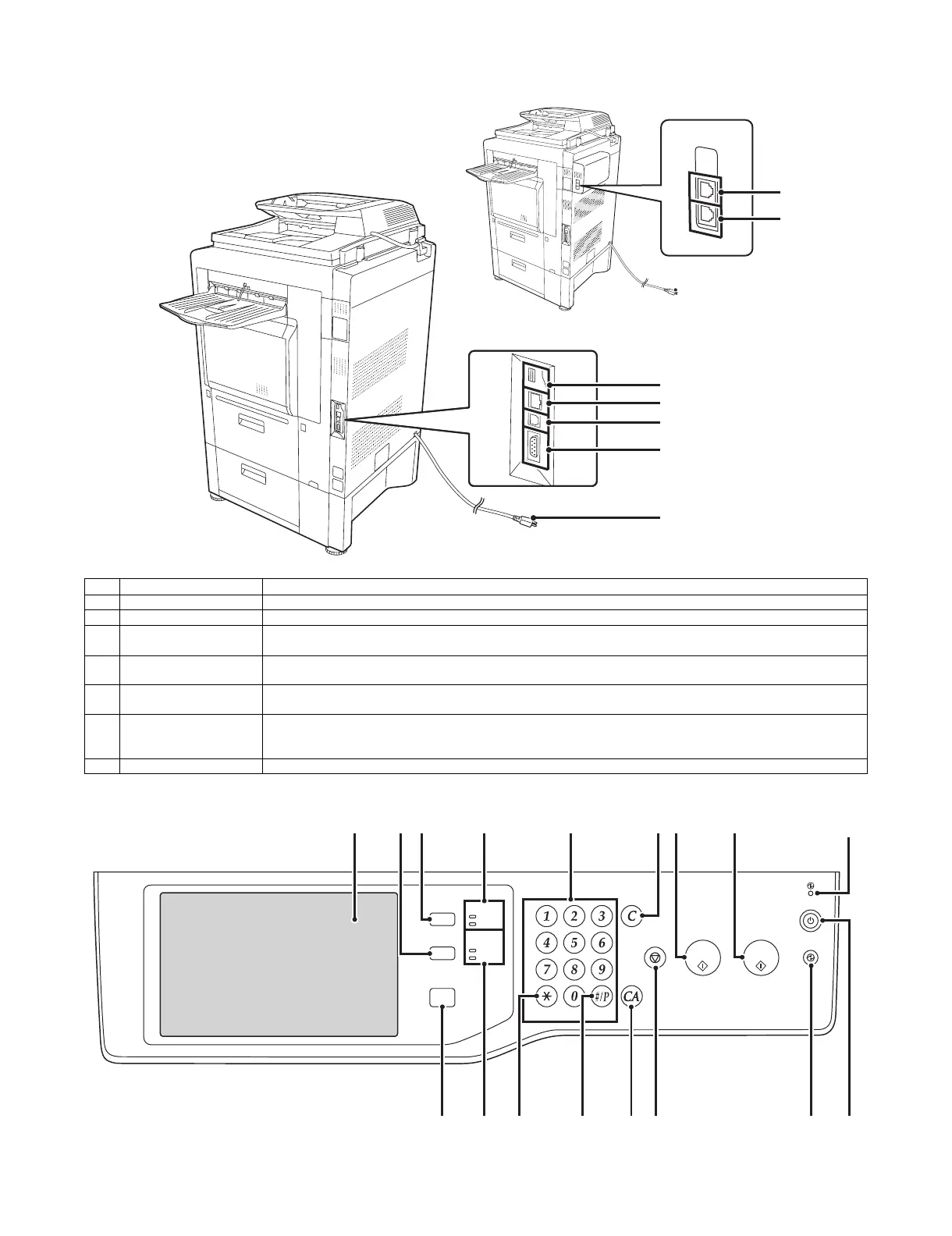

F. Connectors
G. Operation panel
No. Name function/Operation
1 Extension phone socket When the fax function of the machine is used, an extension phone can be connected to this socket.
2 Telephone line socket When the fax function of the machine is used, the telephone line is connected to this socket.
3 USB connector (A type) Supports USB 2.0 (Hi-Speed). This is used to connect a USB device such as USB memory to the machine. This connector
is not initially available for use. If you wish to use the connector, contact your service technician.
4 LAN connector Connect the LAN cable to this connector when the machine is used on a network. For the LAN cable, use a shielded type
cable.
5 USB connector (B type) Supports USB 2.0 (Hi-Speed). A computer can be connected to this connector to use the machine as a printer. For the USB
cable, use a shielded cable.
6 Service-only connector CAUTION: This connector is for use only by service technicians. Connecting a cable to this connector may cause the
machine to malfunction.
Important note for service technicians: The cable connected to the service connector must be less than 118" (3 m) in length.
7 Power plug
(3)
(4)
(5)
(6)
(7)
When the fax expansion kit is installed
(1)
(2)
LOGOUT
HOME
IMAGE SEND
JOB STATUS
PRINT
READY
DA TA
DA TA
LINE
SYSTEM
SETTINGS
(5)(4) (6)(3)(2)(1)
(8)(7)
(13)(14) (15)(11) (12) (16)
(17)
(9) (10)
