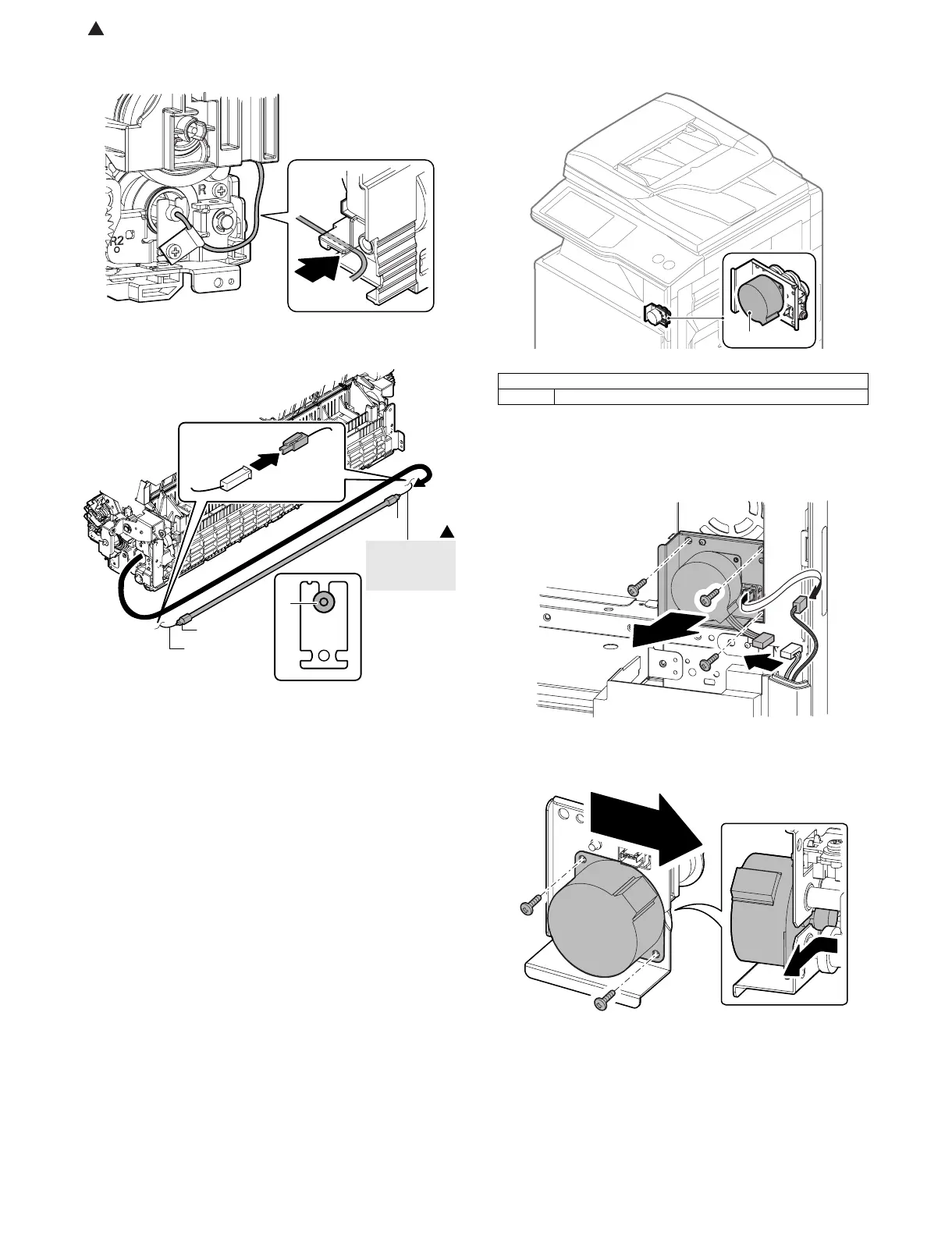

MX-5001N FUSER SECTION M – 6
NOTE: When installing the fusing upper cover RAS, be careful not
to pinch the wires.
5) Disconnect the connectors F/R, and remove the lower heater
lamp.
NOTE: When installing, check to confirm that the harness color on
the rear side is red or black.
NOTE: When installing, check to confirm that the section (A) of the
lower heater lamp is securely engaged with the lamp
holder.
B. Others
(1) Fusing pressure release motor
1) Remove the front cabinet upper.
2) Disconnect the connector and remove the screw, and remove
the fusing pressure release motor unit.
3) Remove the screw, and remove the fusing pressure release
motor.
WHITE
A
A
A
1
RED
(41-sheet machine)
BLACK
(50-sheet machine)
Parts
a Fusing pressure release motor
a
: Oct. 24 2008
1
