MX-5001N FIRMWARE UPDATE 9 – 1
MX-5001N
Service Manual
[9] FIRMWARE UPDATE
1. Outline
A. Cases where update is required
ROM update is required in the following cases:
1) When there is a necessity to upgrade the performance.
2) When installing a new spare part ROM for repair to the
machine.
3) When installing a new spare parts PWB unit (with ROM) for
repair to the machine.
4) When there is a trouble in the ROM program and it must be
repaired.
B. Notes for update
(1) Relationship between each ROM and update
Before execution of ROM update, check combinations with ROM’s
installed in the other PWB’s including options. Some combinations
of each ROM’s versions may cause malfunctions of the machine.
C. Update procedures and kinds of firmware
There are following methods of update of the firmware.
1) Firmware update using media
2) Firmware update using FTP
3) Firmware update using Web page
4) Emergency update (incase of an HDD breakdown)
*Firmware types
2. Update procedure

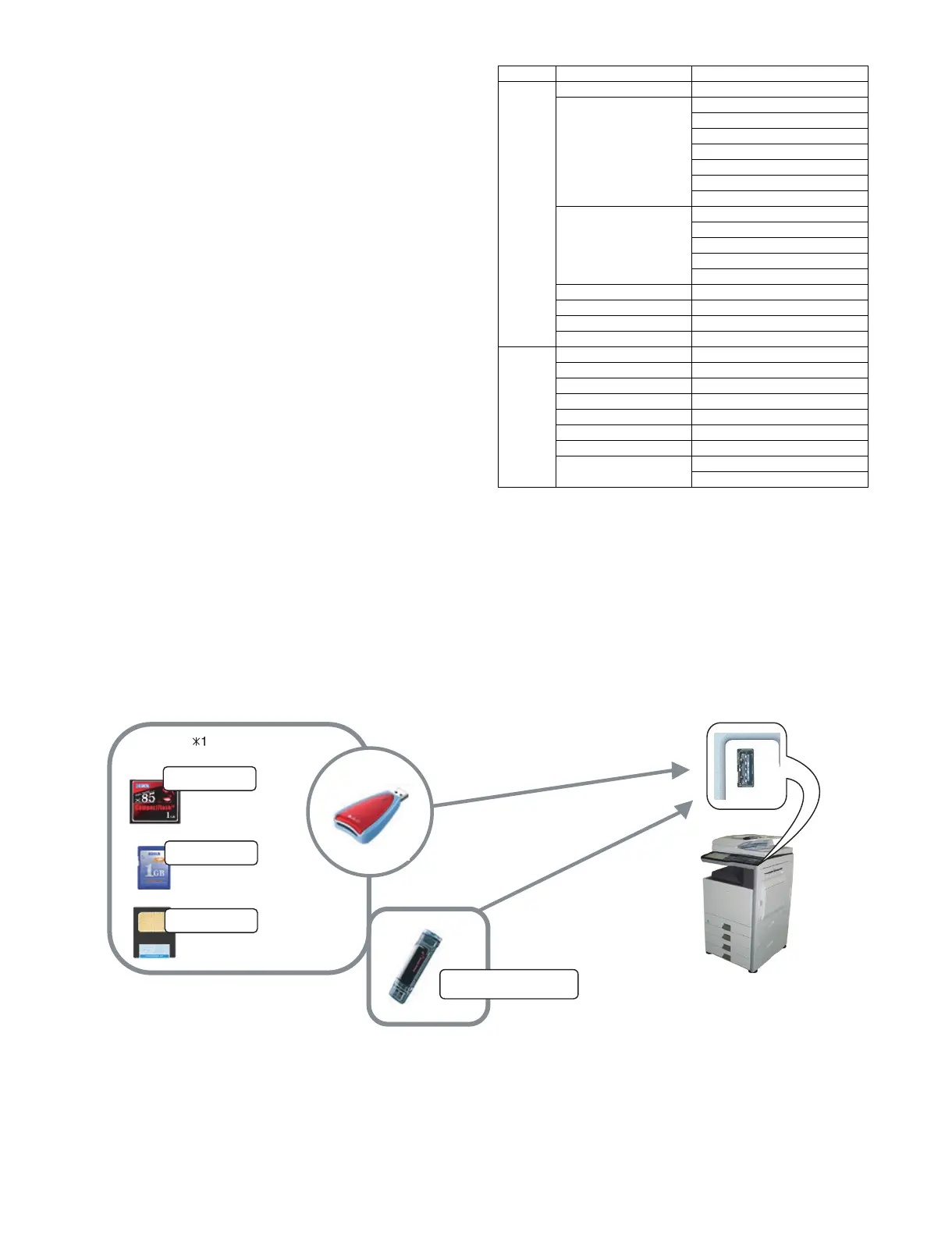

A. Firmware update using media
For the update, connect the media or USB memory to the USB port
that exists in the main body, and select the firmware data in the
media or USB memory by simulation screen in the main unit.
*1:
• Store the firmware data (xxx .sfu) to the media or USB memory
beforehand.
• The media used for the update must have a minimum of 60MB of
storage capacity.
• The USB memory equipped with the security (secure) function
cannot be used.
Flash ROM1 CONTENTS
MAIN
BODY
ALL The following All the contents
ICU (PROG1) ANIME
BOOT MAIN
CONFIG
ESCP FONT
UNI CODE
XIO FONT
PROFILE
ICU (PROG2) SPDL
LANG
GRPH
WEB HELP
MAIN
IMG-ASIC IMG DATA ROM
SCU SCU (MAIN)
PCU PCU (MAIN)
FAX1 FAX1 (MAIN)
OPTION 1K FINISHER FINISHER_1K (MAIN)
INNER FINISHER FINISHER_INNER (MAIN)
LCC A4 LCC_A4 (MAIN)
DESK DESK (MAIN)
PUNCH PUNCH (MAIN)
4K FINISHER 4KFIN (MAIN)
4K PUNCH 4KPUNCH (MAIN)
ACRE ACRE (MAIN)
ACRE_DATA
+
USB memory
Firmware.sfu
Firmware.sfu
Firmware.sfu
Adapter
Firmware.sfu
USB Host
The machine detects the media
and executes the program automatically.
Media
